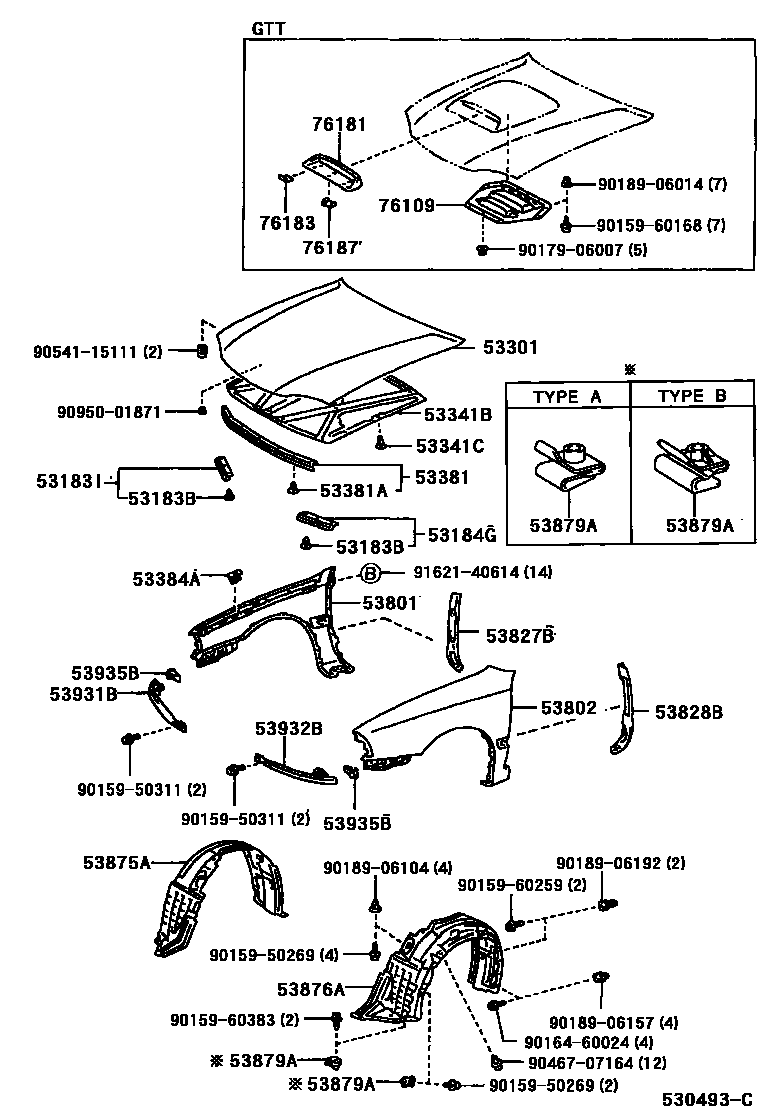

HOOD & FRONT FENDER

53183BCLIP(FOR HEADLAMP COVER SEAL)

main90467-08203×6iST215..GTT199708

53183ISEAL, HEADLAMP COVER, RH

main53183-21010iST215..GTT199708

53184GSEAL, HEADLAMP COVER, LH

main53184-21010iST215..GTT199708

53301HOOD SUB-ASSY

main53301-21020iAT211,CT216,ST21#..E,G,GT199708

main53301-21030iST215..GTT199708

53341BINSULATOR, HOOD

main53341-21010iCT216;ST21#..GT199708

main53341-21020iST215..GTT199708

53341CCLIP(FOR HOOD INSULATOR)

main90467-09006×10iCT216;ST21#..GT; ST215..GTT199708

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-20130iAT211,CT216,ST21#199708

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×7iAT211,CT216,ST21#199708

53384ABUMPER, FENDER TO HOOD

main53384-20060×2iAT211,CT216,ST21#199708

53801FENDER SUB-ASSY, FRONT RH

main53801-21100iAT211,CT216,ST21#..E,G,GT199708

main53801-21110iST215..GTT199708

53802FENDER SUB-ASSY, FRONT LH

main53802-21100iAT211,CT216,ST21#..E,G,GT199708

main53802-21110iST215..GTT199708

53827BPROTECTOR, FRONT FENDER SIDE PANEL

main53827-21010iAT211,CT216,ST21#199912

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-21010iAT211,CT216,ST21#199912

53875ALINER, FRONT FENDER, RH

main53875-21010iST215..GTT199708-199912

main53875-21020iAT211,CT216,ST21#..E,G,GT199708-199912

main53875-21030iST215..GTT199912

main53875-21040iAT211,CT216,ST21#..E,G,GT199912

53876ALINER, FRONT FENDER, LH

main53876-21010iST215..GTT199708-199912

main53876-21020iAT211,CT216,ST21#..E,G,GT199708-199912

main53876-21030iST215..GTT199912

main53876-21040iAT211,CT216,ST21#..E,G,GT199912

53879ARETAINER, FRONT FENDER LINER

main53879-20030×4iAT211,CT216,ST21#199708-199912

main53879-44010×2iAT211,CT216,ST21#199912

53931BPANEL, FRONT END, RH

main53903-20040iAT211,CT216,ST21#199708-199912

53932BPANEL, FRONT END, LH

main53904-20020iAT211,CT216,ST21#199708-199912

53935BPROTECTOR, FRONT END PANEL

main53935-20030×2iAT211,CT216,ST21#199708-199912

76109GUIDE SUB-ASSY, HOOD AIR INTAKE

main76109-21010iST215..GTT199708

76181BULGE, HOOD

main76181-21900iST215..GTT199708

76183PROTECTOR, HOOD BULGE, NO.1

main76183-12030×5iST215..GTT199708

76187RETAINER, HOOD AIR INTAKE GUIDE, NO.1

main76187-35010iST215..GTT199708

9015950269

main90159-50269

9015950311

main90159-50311

9015960168

main90159-60168

9015960259

main90159-60259

9015960383

main90159-60383

9016460024

main90164-60024

9017906007

main90179-06007

9018906014

main90189-06014

9018906104

main90189-06104

9018906157

main90189-06157

9018906192

main90189-06192

9046707164

main90467-07164

9054115111

main90541-15111

9095001871

main90950-01871

9162140614

main91621-40614

38 parts on this diagram · 1 diagram in section
