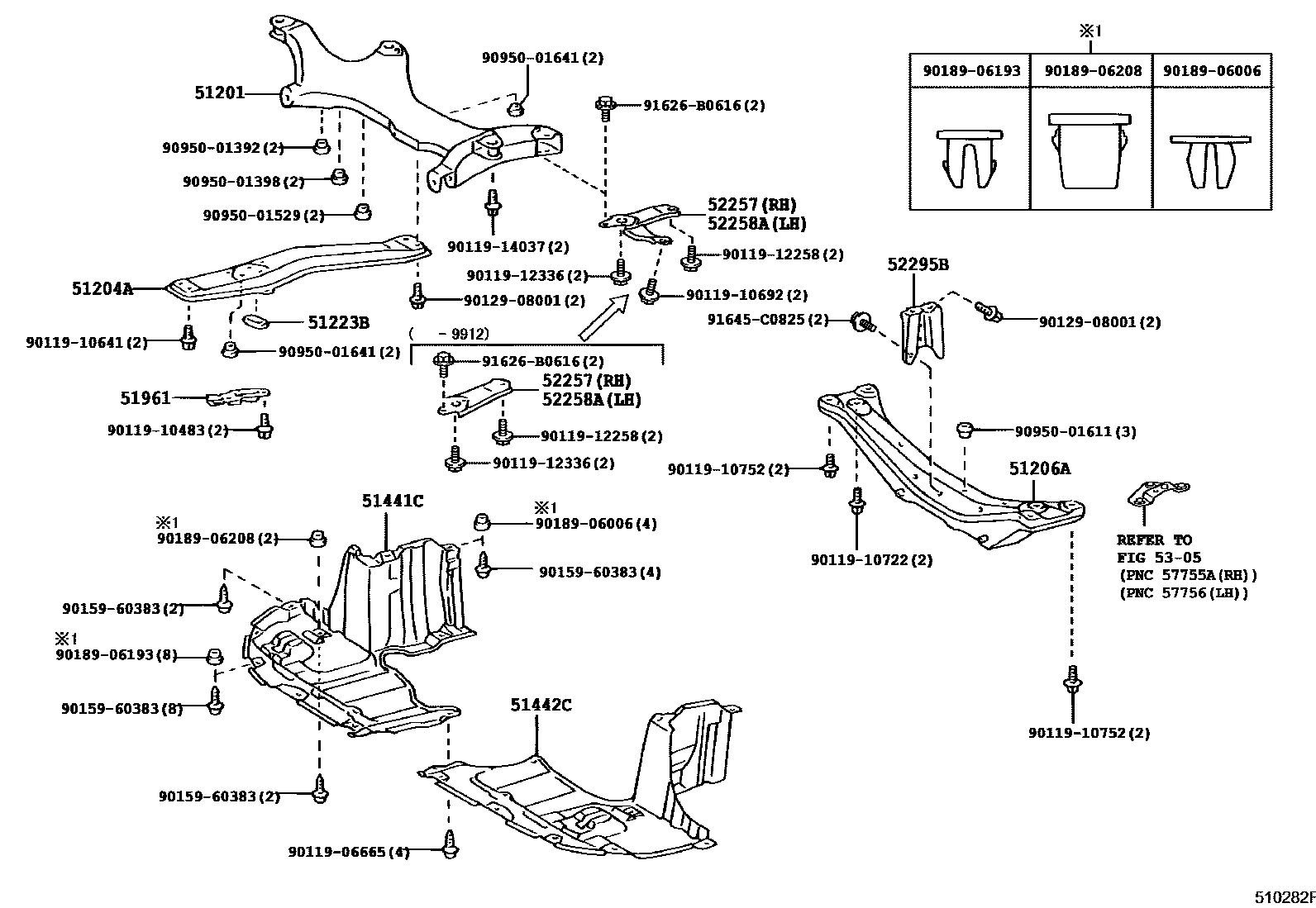

SUSPENSION CROSSMEMBER & UNDER COVER
51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51206AMEMBER SUB-ASSY, REAR SUSPENSION
51223BCOVER, ENGINE MOUNTING HOLE
51441CCOVER, ENGINE UNDER, RH
51442CCOVER, ENGINE UNDER, LH
51961HOOK, NO.1
52257BRACE, FRONT SUSPENSION MEMBER, REAR RH
52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH
52295BRACE, REAR SUSPENSION MEMBER, RH
52295BBRACE, REAR SUSPENSION MEMBER, RH
5305FLOOR SIDE MEMBER
9011906665
main90119-06665
9011910483
main90119-10483
9011910641
main90119-10641
9011910692
main90119-10692
9011910722
main90119-10722
9011910752
main90119-10752
9011912258
main90119-12258
9011912336
main90119-12336
9011914037
main90119-14037
9012908001
main90129-08001
9015960383
main90159-60383
9018906006
main90189-06006
9018906193
main90189-06193
9018906208
main90189-06208
9095001392
main90950-01392
9095001398
main90950-01398
9095001529
main90950-01529
9095001611
main90950-01611
9095001641
main90950-01641
91626B0616
main91626-B0616
91645C0825
main91645-C0825
33 parts on this diagram · 2 diagrams in section
