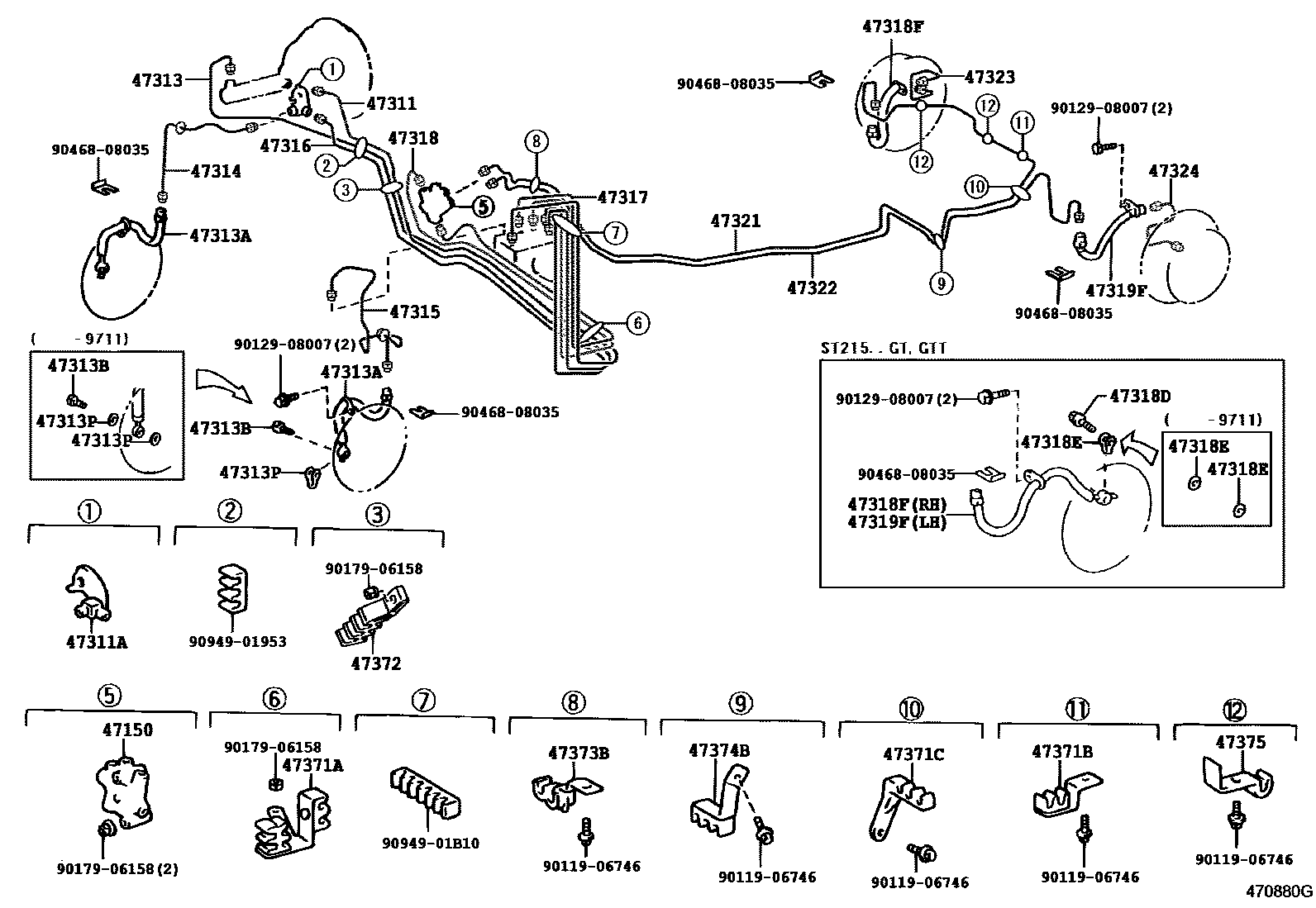

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1��(ABS) 0004 1��(ABS)

47150VALVE ASSY, PROPORTIONING

main47150-20250iAT211,ST210..E,G199708

main47150-20270iCT216,ST215..E,G199708

main47150-46010iST21#..GT,GTT199708

47311TUBE, FRONT BRAKE, NO.1

main47311-21020iST21#..GT;AT211,CT216199708

main47311-21030iST21#..E,G;ST215..5F..GTT199708

main47311-21040iST215..4FC..GTT199711

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10201iST21#..E,G,GTT199708

main90904-12019iST21#..GT;AT211,CT216199708

47313TUBE, FRONT BRAKE, NO.3

main47313-21030iAT211,CT216199708

main47313-21040iST21#..E,G;ST215..5F..GTT199708

main47313-21050iST215..4FC..GTT199711

main47313-21060iST21#..GT199708

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02820iAT211,CT216,ST21#..E,G199708

main90947-02821iAT211,CT216,ST21#..E,G199708

main90947-02995iST21#..GT,GTT199708

main90947-02996iST21#..GT,GTT199708

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10045×2iAT211,CT216,ST21#199708-199711

main90401-10058×2iAT211,CT216,ST21#199711

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-30010×4iAT211,CT216,ST21#199708-199711

main47389-50020×2iAT211,CT216,ST21#199711

47314TUBE, FRONT BRAKE, NO.4

main47314-20520iST21#..E,G,GTT199708

main47314-20640iST21#..GT;AT211,CT216199708

47315TUBE, FRONT BRAKE, NO.5

main47315-21020iST215..5F..GTT;AT211,CT216,ST21#..E,G,GT199708

main47315-21030iST215..4FC..GTT199711

47316TUBE, FRONT BRAKE, NO.6

main47316-21260iST21#..GT;AT211,CT216199708

main47316-21280iST21#..E,G;ST215..5F..GTT199708

main47316-21310iST215..4FC..GTT199711

47317TUBE, FRONT BRAKE, NO.7

main47317-21010iST215..5F..GTT;AT211,CT216,ST21#..E,G,GT199708

main47317-21020iST215..4FC..GTT199711

47318TUBE, FRONT BRAKE, NO.8

main47318-21060iST215..4FC..GTT199912

main47318-21070iST215..4FC..GTT199711

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015×2iST215..GT,GTT199708-199711

main90401-10058×2iST21#..GT,GTT199711

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-30010×4iST215..GT,GTT199708-199711

main47389-50020×2iST21#..GT,GTT199711

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02710iCT216,ST215..E,G199708

main90947-02823iAT211,ST210..E,G199708

main90947-02824iST215..GT,GTT199708

main90947-02896iST210..GT199912

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02709iCT216,ST215..E,G199708

main90947-02822iAT211,ST210..E,G199708

main90947-02825iST215..GT,GTT199708

main90947-02897iST210..GT199912

47321TUBE, REAR BRAKE, NO.1

main47321-20420iAT211,ST210199708

main47321-20430iCT216,ST215199708

47322TUBE, REAR BRAKE, NO.2

main47322-20520iAT211,CT216,ST21#199708

47323TUBE, REAR BRAKE, NO.3

main47323-20180iAT211,ST210..E,G199708

main47323-20190iCT216,ST215..E,G199708

47324TUBE, REAR BRAKE, NO.4

main47324-20180iAT211,ST210..E,G199708

main47324-20190iCT216,ST215..E,G199708

47371ACLAMP, BRAKE TUBE, NO.1

main47371-20660iAT211,CT216,ST21#199708

47371BCLAMP, BRAKE TUBE, NO.6

main47371-20500iAT211,CT216,ST21#199708

47371CCLAMP, BRAKE TUBE, NO.7

main47371-20700iAT211,CT216,ST21#199708

47372CLAMP, BRAKE TUBE, NO.2

main47371-21020iAT211,CT216,ST21#199708

47373BCLAMP, BRAKE TUBE, NO.3

main47371-20680iAT211,CT216,ST21#199708

47374BCLAMP, BRAKE TUBE, NO.4

main47371-20291iAT211,CT216,ST21#199708

47375CLAMP, BRAKE TUBE, NO.5

main47371-20690×2iAT211,CT216,ST21#199708

9011906746

main90119-06746

9012908007

main90129-08007

9017906158

main90179-06158

9046808035

main90468-08035

9094901953

main90949-01953

9094901B10

main90949-01B10

33 parts on this diagram · 4 diagrams in section
