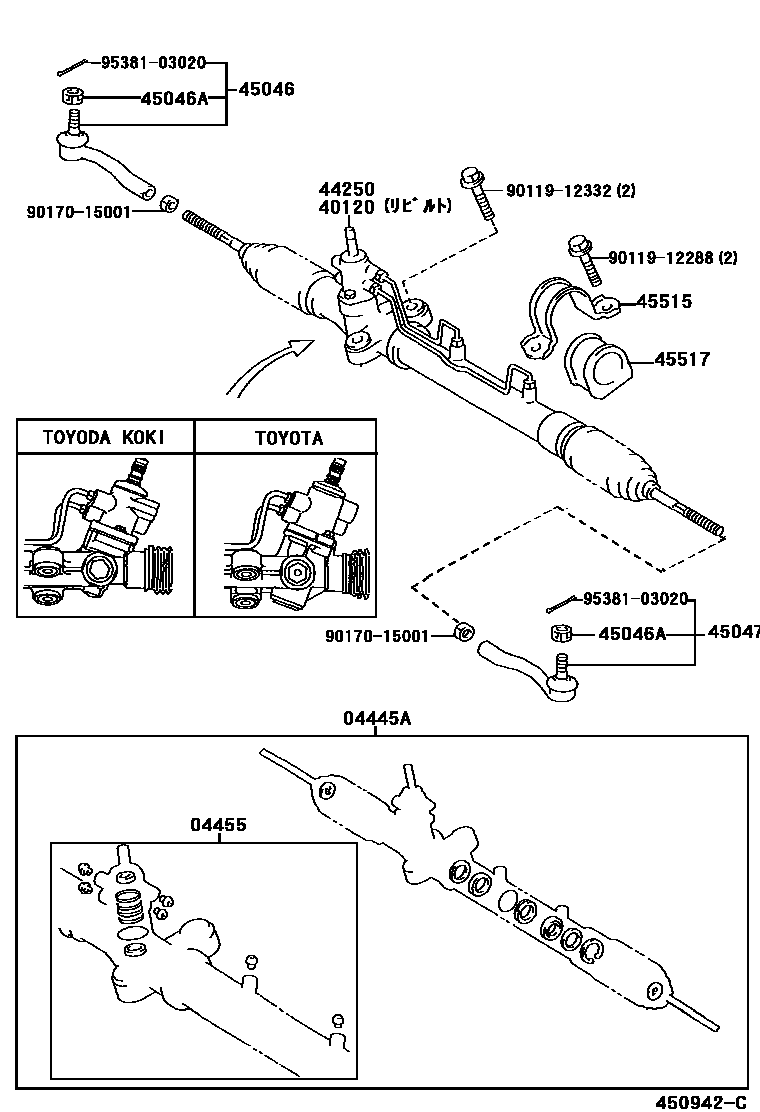

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1TOYOTA 0005 1TOYODA KOKI 0006 1 0007 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-20161iAT211; CT216,ST21#199708-199711

main04445-20170iAT211199708-199711

main04445-21010iST210..GT199912

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-20120iAT211; CT216,ST21#199708-199711

main04455-20130iAT211199708-199711

main04455-21010iST210..GT199912

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-20611iAT211199708-199711

main40120-20621iAT211,ST210..E,G199708

main40120-20732iCT216,ST215..E,G199708

main40120-21020iST215..GT,GTT199708

main40120-21030iST210..GT199912

main40120-21040iST215..4FC..(GT,GTT)199912

main40120-21050iST210..GT199912

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-20611iAT211,ST210..E,G199711

main44250-20621iAT211; ST210199708-199711

main44250-20732iCT216,ST215..E,G199708

main44250-21020iST215..GT,GTT199708

main44250-21030iST210..GT199912

main44250-21040iST215..4FC..(GT,GTT)199912

main44250-21050iST210..GT199912

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iCT216,ST215199708

main45046-29335iAT211,ST210199708

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iAT211,CT216,ST21#199708

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iCT216,ST215199708

main45047-29105iAT211,ST210199708

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-20160iAT211,ST210199708

main45515-20280iCT216,ST215199708

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-20130iCT216,ST215199708

main45517-20150iAT211,ST210199708-199801

main45517-20190iAT211,ST210199708-199801

main45517-20250iAT211,ST210..E,G199801

main45517-20260iAT211,ST210..E,G199801

9011912288

main90119-12288

9011912332

main90119-12332

9017015001

main90170-15001

9538103020

main95381-03020

13 parts on this diagram · 7 diagrams in section
