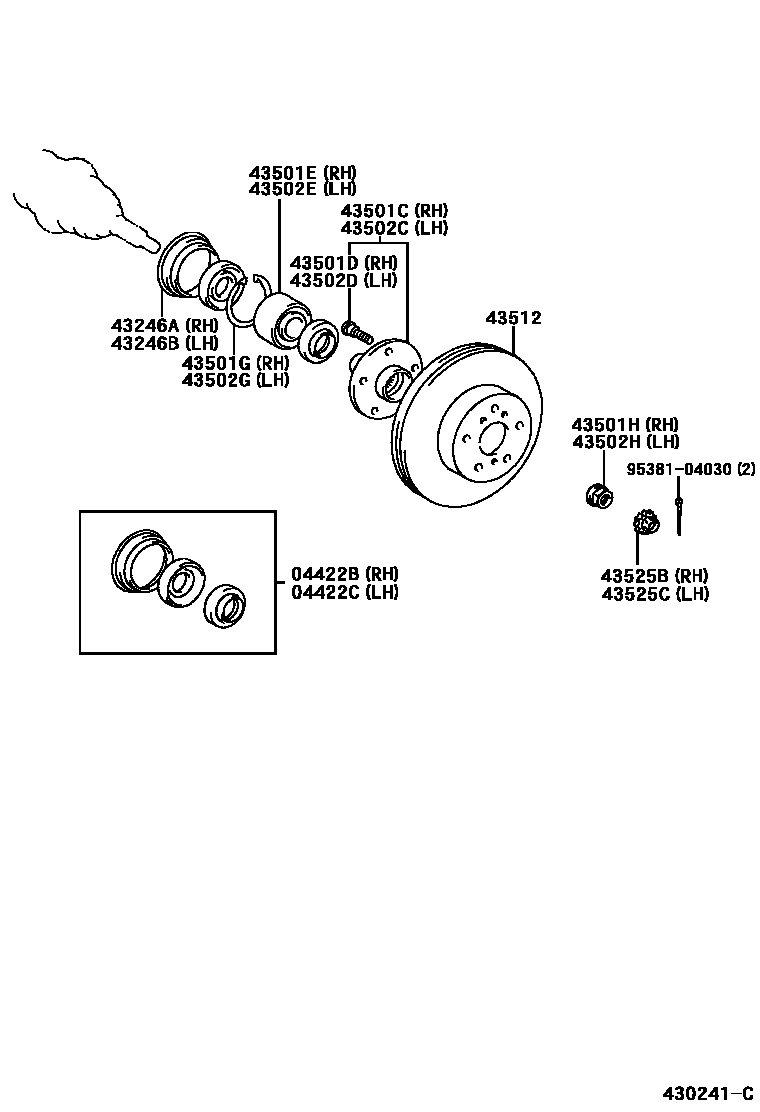

FRONT AXLE HUB
04422BSEAL KIT, FRONT AXLE OIL, RH
04422CSEAL KIT,FRONT AXLE OIL, LH
43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH
43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH
43501CHUB SUB-ASSY, FRONT AXLE, RH
43501DBOLT, HUB (FOR FRONT AXLE RH)
43501EBEARING (FOR FRONT AXLE HUB RH)
43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)
43501HNUT (FOR FRONT AXLE SHAFT RH)
43502CHUB SUB-ASSY, FRONT AXLE, LH
43502DBOLT, HUB (FOR FRONT AXLE LH)
43502EBEARING (FOR FRONT AXLE HUB LH)
43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)
43502HNUT (FOR FRONT AXLE SHAFT LH)
43512DISC, FRONT
43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH
43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH
9538104030
main95381-04030
18 parts on this diagram · 2 diagrams in section
