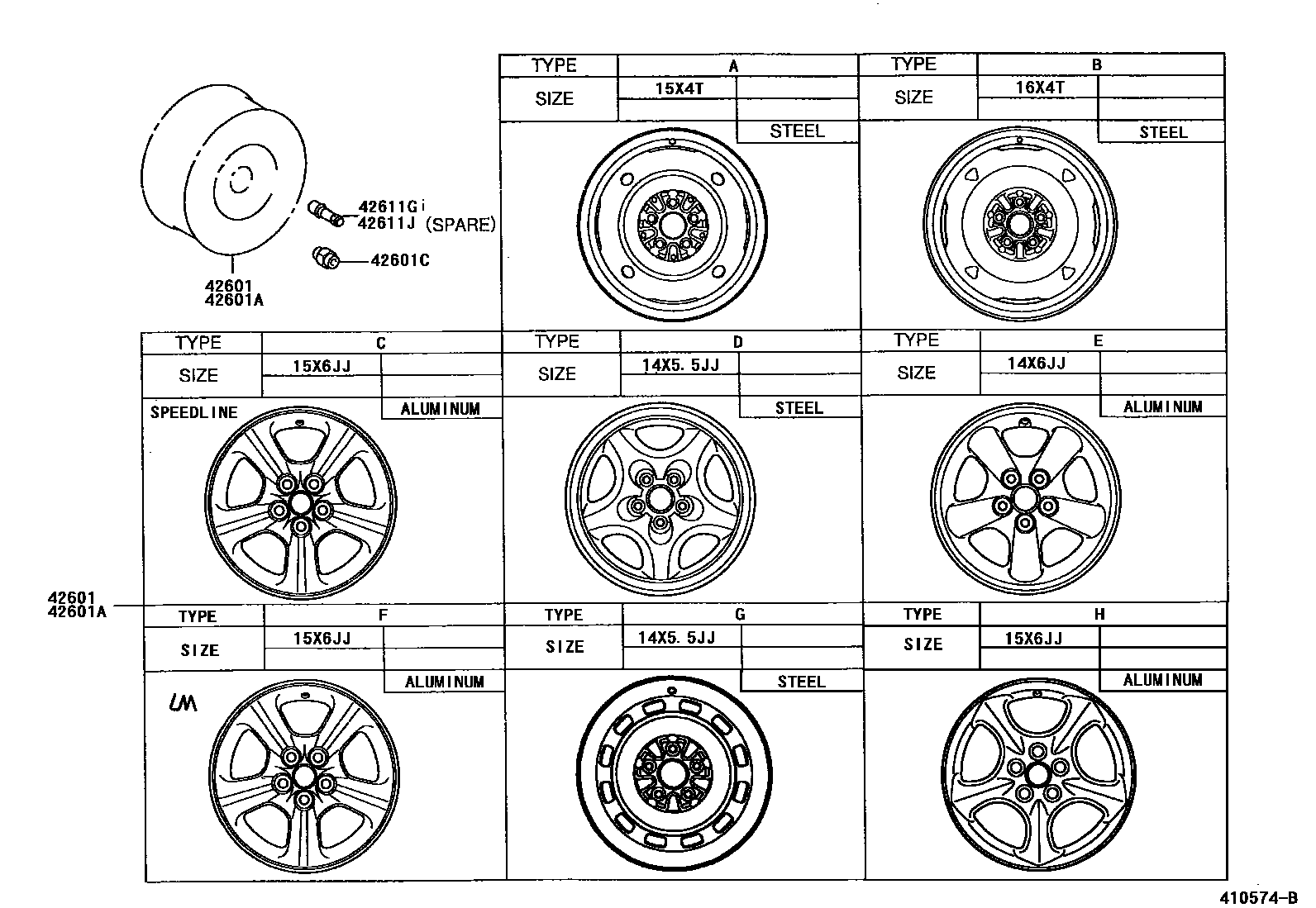

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1

42601WHEEL, DISC

main42611-05090×4iST215..GT199708-199912

main42611-20870-01×4iAT211,CT216,ST21#..E,G199912

main42611-21110×4iAT211,CT216,ST21#..E,G199708-199912

main42611-21120×4iAT211,CT216,ST21#..E,G199708

main42611-21130×4iST215..GT,GTT199708

main42611-2B230×4iST210..GT199912

42601AWHEEL, DISC (FOR SPARE)

main42611-05090iST215..GT199708-199912

main42611-20440iAT211,CT216,ST21#..E,G199708

main42611-20840iST21#..GT,GTT199708

main42611-20870-01iAT211,CT216,ST21#..E,G199912

main42611-21110iAT211,CT216,ST21#..E,G199708-199912

main42611-21120iAT211,CT216,ST21#..E,G199708

main42611-21130iST215..GT,GTT199708

main42611-2B230iST210..GT199912

42601CNUT, HUB (FOR AXLE)

main90942-01007×20iAT211,CT216,ST21#..E,G199912

main90942-01021×20iAT211,CT216,ST21#..E,G199708-199912

main90942-01033×20iST215..E,G;AT211,CT216,ST210199708

main90942-01058×20iST215..GT,GTT199708

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iAT211,CT216,ST21#199708

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAT211,CT216,ST21#199708

5 parts on this diagram · 4 diagrams in section
