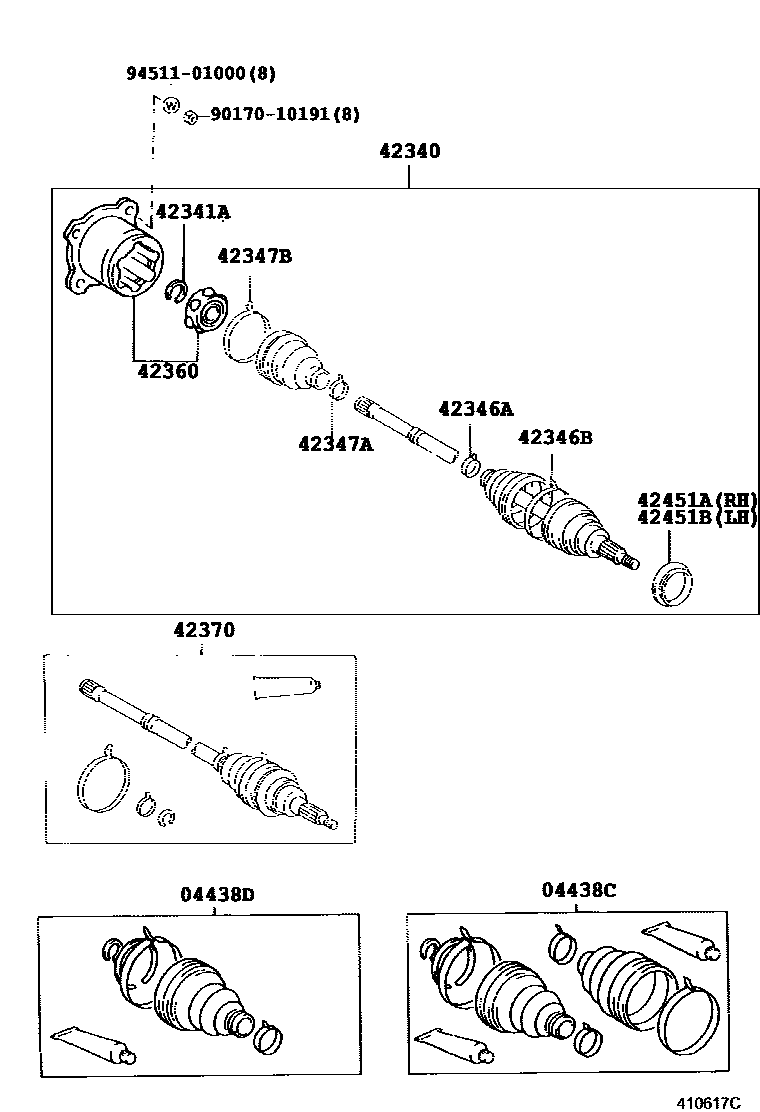

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1��� 0004 1 0005 1���

04438CBOOT KIT, REAR DRIVE SHAFT

main04437-22150×2iST215..GTT200008

main04437-28030×2iST215..GTT199708-199906

main04437-28031×2iST215..GTT199906-200008

04438DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

main04437-28020×2iST215..GTT199708-199906

main04437-28021×2iST215..GTT199906

42340SHAFT ASSY, REAR DRIVE

main42340-21020×2iST215..GTT199708-199712

main42340-21021×2iST215..GTT199712

42341ARING, SNAP (FOR REAR DRIVE SHAFT)

main90520-26028×2iST215..GTT199708

42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-14010×2iST215..GTT199708

42346BCLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)

main90949-01473×2iST215..GTT199708

42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-14010×2iST215..GTT199708

42347BCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-30010×2iST215..GTT199708

42360JOINT ASSY, REAR DRIVE SHAFT INBOARD

main42360-30012×2iST215..GTT199708-199906

main42360-30040×2iST215..GTT199906

42370SHAFT ASSY, REAR DRIVE OUTBOARD JOINT

main42370-29405×2iST215..GTT199708-199712

main42370-29406×2iST215..GTT199912

main42370-29407×2iST215..GTT199906-199912

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main43247-12010iCT216,ST215199708

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main43247-12010iCT216,ST215199708

9017010191

main90170-10191

9451101000

main94511-01000

14 parts on this diagram · 5 diagrams in section
