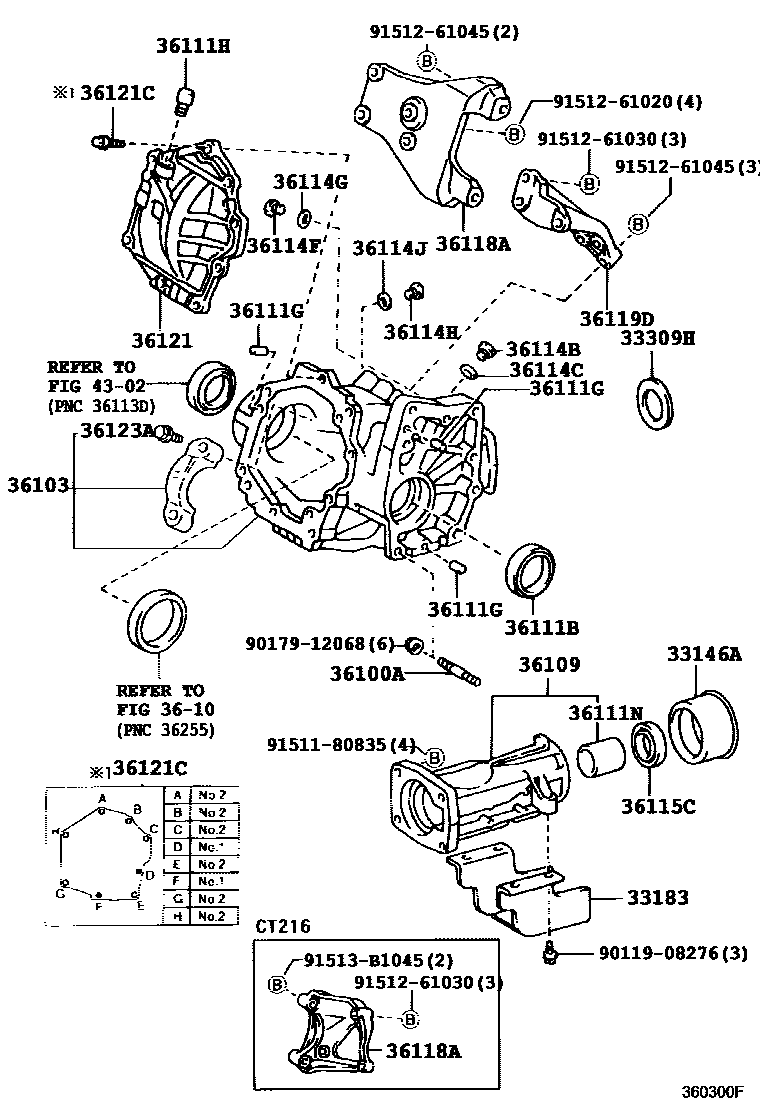

TRANSFER CASE & EXTENSION HOUSING
33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST
33183DAMPER, TRANSFER DYNAMIC
33309HWASHER, TRANSFER OUTPUT SHAFT
3610TRANSFER GEAR
36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
36103CASE SUB-ASSY, TRANSFER
36109HOUSING SUB-ASSY, TRANSFER EXTENSION
36111CASE, TRANSFER
36111BSEAL, OIL (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
36111HPLUG, BREATHER (FOR TRANSFER CASE)
36111NBUSH (FOR TRANSFER CASE)
36114CASE, TRANSFER, LH
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36114FPLUG (FOR TRANSFER DRAIN)
36114GGASKET (FOR TRANSFER DRAIN PLUG)
36114HPLUG, NO.2 (FOR TRANSFER CASE)
36114JGASKET, NO.2 (FOR TRANSFER CASE)
36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
36118APLATE, TRANSFER STIFFENER, RH
36119DPLATE, TRANSFER STIFFENER, CENTER
36121COVER, TRANSFER CASE, NO.1
36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)
36123ABOLT, DIFFERENTIAL BEARING CAP
4302FRONT DRIVE SHAFT
9011908276
main90119-08276
9017912068
main90179-12068
9151180835
main91511-80835
9151261020
main91512-61020
9151261030
main91512-61030
9151261045
main91512-61045
91513B1045
main91513-B1045
33 parts on this diagram · 3 diagrams in section
