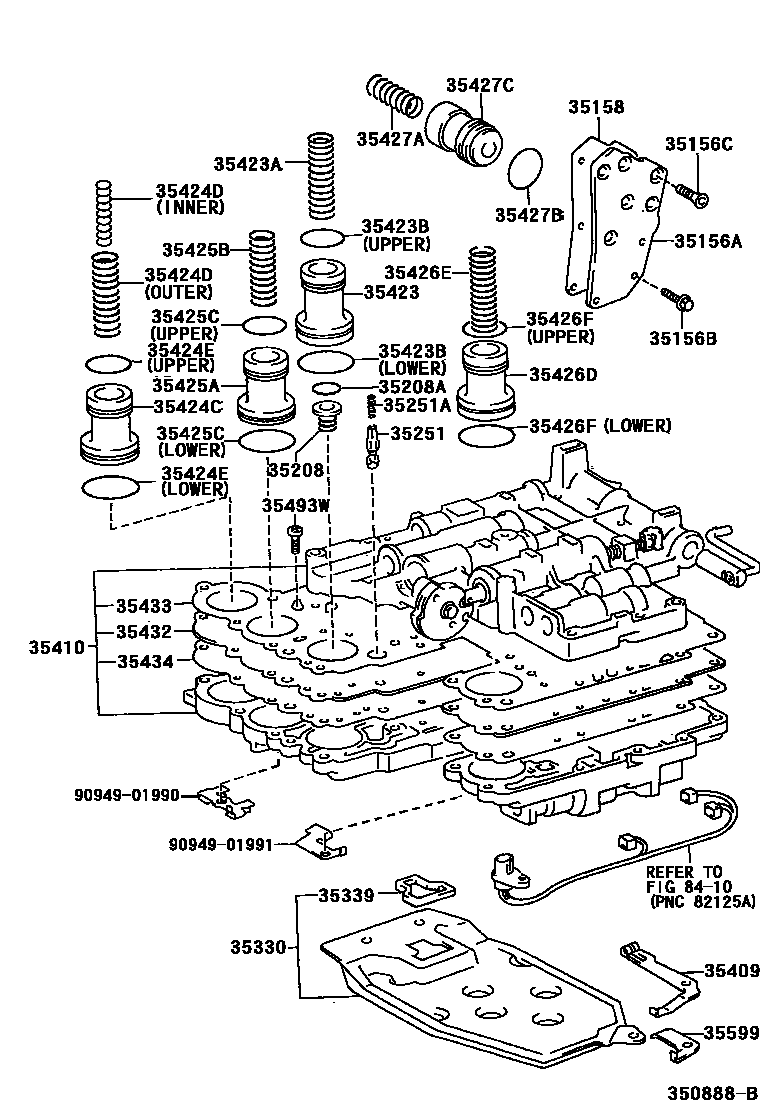

VALVE BODY & OIL STRAINER (ATM)

0001 1A245E 0002 1A245E 0003 1A245E 0004 1A245E 0005 1A245E 0006 1A247E 0007 1A247E 0008 1A247E 0009 1A247E 0010 1A247E 0011 1A241F,A243E,A243F 0013 1A241F,A243E,A243F 0015 1A241F,A243E,A243F 0017 1A241F,A243E,A243F 0019 1A241F,A243E,A243F 0021 1U140F 0022 1U140F 0023 1U140F 0024 1U140F 0025 1U140F

35156APLATE, TRANSMISSION CASE, NO.2

main35108-20070iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main35156-20010iAT211,ST210..4FC..(E,G)199708-200209

35156BBOLT(FOR TRANSMISSION CASE NO.2 PLATE)

main90105-06049×3iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

35156CSCREW(FOR TRANSMISSION CASE NO.2 PLATE)

main90149-60041×6iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

35158GASKET, TRANSMISSION CASE, NO.2 PLATE

main35158-20020iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

35208SPRING SUB-ASSY, B-2 ACCUMULATOR

main35205-16020iST215..4FC..(E,G)199708-200209

main35205-20030iAT211..4FC199708-200209

main35205-20040iST210..E,G199708-200209

main35208-20040iCT216;ST21#..GT199708-200209

35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)

main90521-22004iAT211,ST210..4FC..(E,G)199708

35251BODY, CHECK BALL

main35251-30020iST215..4FC..GTT;AT211,ST210..4FC..(E,G)199708-200209

35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)

main90501-03005iST215..4FC..GTT;AT211,ST210..4FC..(E,G)199708-200209

35330STRAINER ASSY, VALVE BODY OIL

main35330-06010iST215..4FC..GTT200011-200209

main35330-0W010iST215..4FC..GTT200002-200011

main35330-12020iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main35330-12030iAT211,ST210..4FC..(E,G)199708-200209

main35330-21011iST215..4FC..GTT199711-199804

main35330-21020iST215..4FC..GTT199804-200002

35339GASKET, OIL STRAINER

main35339-12010iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main35339-12020iAT211,ST210..4FC..(E,G)199708-200209

main90301-32010iST215..4FC..GTT199711-200209

35409SPRING SUB-ASSY, MANUAL DETENT

main35409-12030iAT211,ST210..4FC..(E,G)199708-200209

main35409-20010iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main35409-21010iST215..4FC..GTT199711-200209

35410BODY ASSY, TRANSMISSION VALVE

main35410-20391iST215..4FC..(E,G)199708-199712

main35410-20440iST210199708-199810

main35410-20441iST210199810-199911

main35410-20450iAT211..4FC199708-199810

main35410-20451iAT211..4FC199810-200209

main35410-20481iST210..GT199912-200209

main35410-21010iST215..4FC..GTT199711-199805

main35410-21011iST215..4FC..GTT199805-200209

main35410-21020iST215..GT199708-199803

main35410-21021iST215..GT199803-200209

main35410-21030iCT216199708-199712

main35410-21040iST215..4FC..(E,G)199712-200209

main35410-21050iCT216199712-200209

main35410-44021iST210..E,G199911-200209

35423PISTON, B-2 ACCUMULATOR

main35423-12010iST210..E,G200010-200209

main35423-12020iAT211..4FC200010-200209

main35423-20030iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

main90501-21019iCT216199708-200209

main90501-22034iST210..E,G199708-200209

main90501-23126iAT211..4FC199708-200209

main90501-23142iST21#..GT199708-200209

main90905-01014iST215..4FC..(E,G)199708-200209

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-21012iAT211,ST210..4FC..(E,G)200008-200209

main90301-22185iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200008

main90301-29011iAT211,ST210..4FC..(E,G)200008-200209

main90301-29187iST210..GT;CT216,ST215..4FC..(E,G,GT)200008-200209

35424CPISTON, C-1 ACCUMULATOR

main35424-12030iAT211,ST210..4FC..(E,G)199708-200209

main35424-20030iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main35424-21010iST215..4FC..GTT199711-200209

35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

main90501-19026iST215..4FC..(E,G)199708-200209

main90501-20136iAT211..4FC199708-200209

main90501-20150iST210..E,G199708-200209

main90501-20151iST215..4FC..GTT199711-200209

main90501-20154iCT216;ST21#..GT199708-200209

main90501-23127iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main90501-24027iAT211,ST210..4FC..(E,G)199708-200209

35424ERING, O (FOR C-1 ACCUMULATOR PISTON)

main90301-23010iAT211,ST210..4FC..(E,G)200008-200209

main90301-23194iST210..GT;CT216,ST215..4FC..(E,G,GT)200008-200209

main90301-27008iST215..4FC..GTT199711-200209

main90301-29011iAT211,ST210..4FC..(E,G)200008-200209

main90301-29187iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200008

main90301-30007iST215..4FC..GTT199711-200209

35425APISTON, C-2 ACCUMULATOR

main35425-12040iAT211..4FC199708-200010

main35425-12050iAT211..4FC200010-200209

main35425-20020iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main35425-20040iST210..E,G199708-200209

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-21019iST215..GT199708-200209

main90501-22018iST210..GT;ST215..4FC..(E,G)199708-200209

main90501-23141iCT216199708-200209

main90501-24028iAT211,ST210..4FC..(E,G)199708-200209

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-23194iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main90301-26012iAT211,ST210..4FC..(E,G)200008-200209

main90301-26190iAT211,ST210..4FC..(E,G)199708-200008

main90301-29011iAT211,ST210..4FC..(E,G)200008-200209

main90301-29187iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200008

35426DPISTON, C-3 ACCUMULATOR

main35406-21010iST215..4FC..GTT199711-200209

main35423-12020iAT211..4FC200010-200209

main35426-12030iAT211,ST210..4FC..(E,G)199708-200010

main35426-20040iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)

main90501-22034iST210..E,G199708-200209

main90501-23125iAT211..4FC199708-200209

main90501-24024iCT216199708-200209

main90501-27030iST215..4FC..GTT199711-200209

main90501-29003iST210..GT;ST215..4FC..(E,G,GT)199708-200209

35426FRING, O (FOR C-3 ACCUMULATOR PISTON)

main90301-20002iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main90301-21012iAT211,ST210..4FC..(E,G)200008-200209

main90301-22185iAT211,ST210..4FC..(E,G)199708-200008

main90301-29011iAT211,ST210..4FC..(E,G)200008-200209

main90301-29187iST210..GT;CT216,ST215..4FC..(E,G,GT)200008-200209

main90301-30007×2iST215..4FC..GTT199711-199912

35427ASPRING, COMPRESSION (FOR B-4 ACCUMULATOR PISTON)

main90501-26040iST210..GT;ST215..4FC..(E,G,GT)199708-200209

main90501-26078iAT211,CT216,ST210..4FC..(E,G)199708-200209

35427BRING, O (FOR B-4 ACCUMULATOR PISTON)

main90301-21012iAT211,ST210..4FC..(E,G)200008-200209

main90301-22185iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200008

35427CPISTON, B-4 ACCUMULATOR

main35427-12010iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main35427-12020iAT211..4FC200010-200209

main35427-13010iAT211,ST210..4FC..(E,G)199708-200010

35432PLATE, VALVE BODY, NO.1

main35432-20290iAT211..4FC199708-200209

main35432-20310iST215..4FC..(E,G)199708-200209

main35432-20330iST210199708-199911

main35432-20350iST210..GT199912-200209

main35432-21010iST215..4FC..GTT199711-200209

main35432-21020iCT216;ST215..GT199708-200209

main35432-44020iST210..E,G199911-200209

35433GASKET, VALVE BODY, NO.1

main35433-12050iST210..E,G199708-200209

main35433-16030iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main35433-20050iAT211..4FC199708-200209

35434GASKET, VALVE BODY, NO.2

main35434-12030iST210..E,G199708-200209

main35434-16030iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main35434-20030iAT211..4FC199708-200209

35493WSEAT, VALVE BODY

main35493-50040iAT211,ST210..4FC..(E,G)199708

35599COVER, MANUAL DETENT SPRING

main35599-12010iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main35599-12020iAT211,ST210..4FC..(E,G)199708-200209

main35599-21010iST215..4FC..GTT199711-200209

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9094901990

main90949-01990

9094901991

main90949-01991

35 parts on this diagram · 20 diagrams in section
