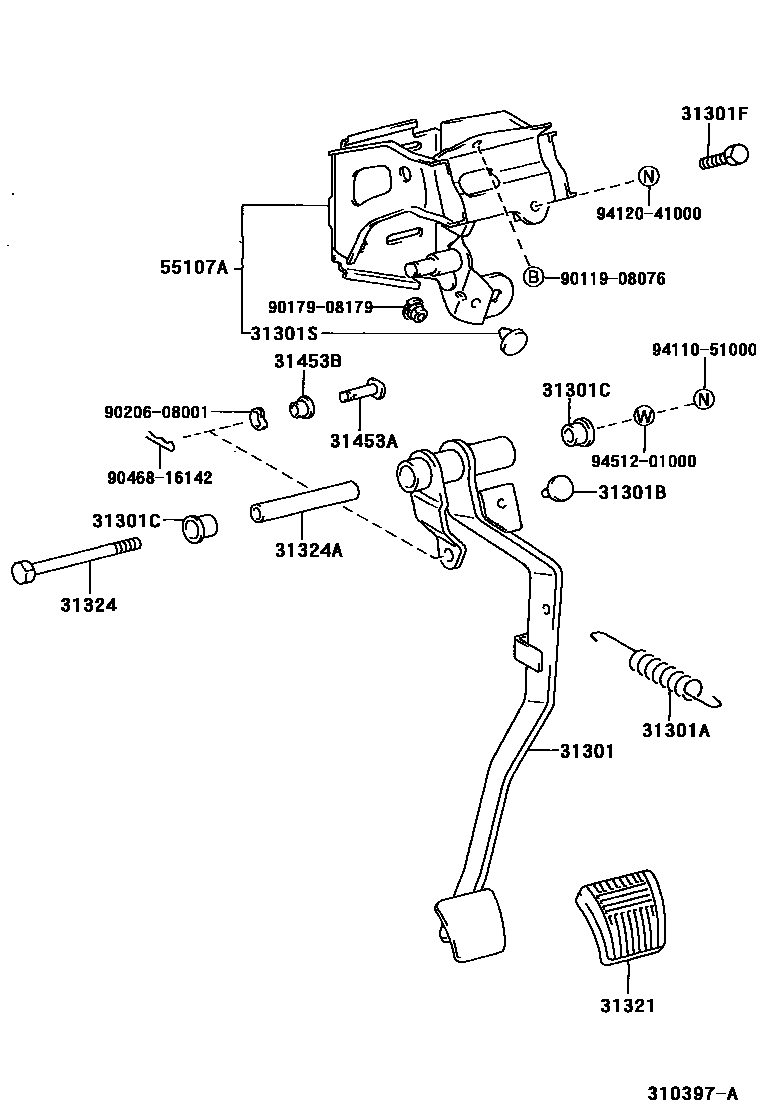

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-20460iAT211,ST215..5F..(E,G)199708-199912

main31301-21020iST215..5F..GTT199708-199912

main31301-21030iAT211,ST215..5F..(E,G)199912

main31301-21040iST215..5F..GTT199912

31301ASPRING(FOR CLUTCH PEDAL)

main90905-07011iAT211,ST215..5F..(E,G)199708

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iAT211,ST215..5F199708

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iAT211,ST215..5F199708

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iAT211,ST215..5F199708

31301SCUSHION, NO.2(FOR CLUTCH PEDAL)

main90541-06036iAT211,ST215..5F199708

31321PAD, CLUTCH PEDAL

main31321-14020iAT211,ST215..5F199708

31324SHAFT, CLUTCH PEDAL

main90101-10100iAT211,ST215..5F199708

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10002iAT211,ST215..5F199708

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iAT211,ST215..5F199708

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iAT211,ST215..5F199708

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-20360iAT211,ST215..5F..(E,G)199708-199806

main55107-21010iST215..5F..GTT199708-199806

main55107-21020iST215..5F..GTT199806-199912

main55107-21030iAT211,ST215..5F..(E,G)199806-199912

main55107-21040iAT211,ST215..5F..(E,G)199912

main55107-21050iST215..5F..GTT199912

9011908076

main90119-08076

9017908179

main90179-08179

9020608001

main90206-08001

9046816142

main90468-16142

9411051000

main94110-51000

9412041000

main94120-41000

9451201000

main94512-01000

19 parts on this diagram · 5 diagrams in section
