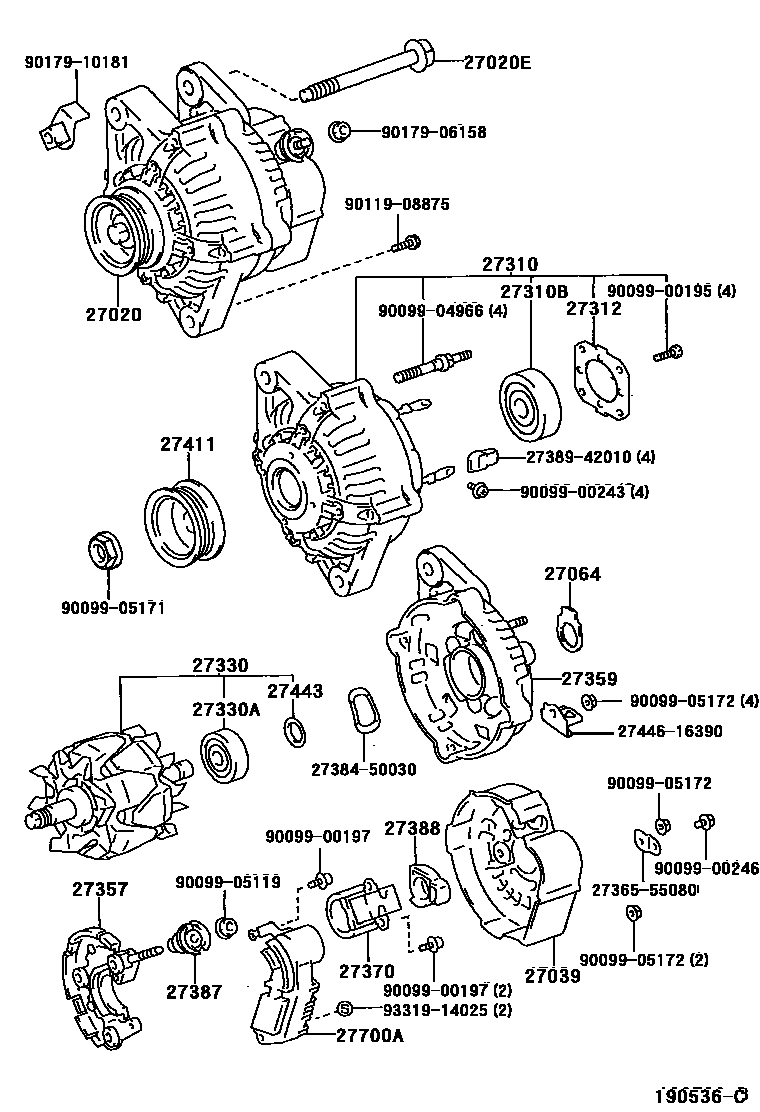

ALTERNATOR

0001 112V 80A 0002 112V 80A 0003 112V 80A 0004 112V 80A 0005 112V 100A 0006 112V 100A

27020ALTERNATOR ASSY

main27060-16440i7AFE..AT211..5F199708

sub27060-16450

main27060-16450i7AFE..AT211..4FC199708

main27060-64340i3CTE..CT216199708

main27060-74590i3SFE..ST215..5F199708

sub27060-74640

main27060-74650i3SFE..ST21#..4FC199708

main27060-74660i3SGE..ST21#199708

main27060-74720i3SGTE..ST215199708

27020EBOLT(FOR ALTERNATOR)

main90105-10249i3SFE,3SG#..ST21#199708-200209

main90105-10336i7AFE..AT211199708-200209

main90901-05004i3CTE..CT216199708-200209

27039COVER, ALTERNATOR REAR END

main27039-20060i3CTE,3SGTE..CT216,ST215199708-200104

main27039-20160i3CTE,3SGTE..CT216,ST215200104

main27039-55080i7AFE,3SFE,3SGE..AT211,ST21#199708-200104

sub27039-70470

main27039-70470i7AFE,3SFE,3SGE..AT211,ST21#200104

27064SEAL, ALTERNATOR PLATE

main27064-42010i7AFE,3CTE,3SFE,3SG#..AT211,CT216,ST21#199708

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-16430i7AFE..AT211..5F199708

main27310-16440i7AFE..AT211..4FC199708

main27310-64490i3CTE..CT216199708

main27310-74120i3SFE..ST215..5F199708

main27310-74490i3SFE..ST21#..4FC199708

sub27310-70440

main27310-74570i3SGE..ST21#199708

main27310-74620i3SGTE..ST215199708

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10192i7AFE,3CTE,3SFE,3SG#..AT211,CT216,ST21#199708

27312PLATE, RETAINER

main27312-42010i7AFE,3CTE,3SFE,3SG#..AT211,CT216,ST21#199708

27330ROTOR ASSY, ALTERNATOR

main27330-16390i7AFE,3SFE..AT211,ST215..5F199708-200007

main27330-20070i3CTE..CT216200007

main27330-28050i3SGTE..ST215200007

main27330-42020i3SGTE..ST215199708-200007

sub27330-28050

main27330-64520i3CTE..CT216199708-200007

sub27330-20070

main27330-72280i3SFE,3SGE..ST21#..4FC199708-200007

sub27330-74550

main27330-74550i7AFE..AT211..4FC199708-200007

main27330-74730i3SFE..ST21#..4FC199812

sub27330-74550

main27330-76030i3SFE..ST215..5F199708-200007

sub27330-16390

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i7AFE,3CTE,3SFE,3SG#..AT211,CT216,ST21#199708

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-20060i3CTE,3SGTE..CT216,ST215199708

main27357-55080i7AFE,3SFE,3SGE..AT211,ST21#199708

27359FRAME, ALTERNATOR RECTIFIER END

main27359-15180i7AFE..AT211..5F199708

main27359-16440i7AFE..AT211..4FC199708

main27359-64490i3CTE..CT216199708

main27359-74330i3SFE..ST215..5F199708

main27359-74550i3SFE,3SGE..ST21#..4FC199708

sub27359-70440

main27359-74620i3SGTE..ST215199708

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-75060i7AFE,3CTE,3SFE,3SG#..AT211,CT216,ST21#199708

27387INSULATOR, TERMINAL

main27387-42021i7AFE,3CTE,3SFE,3SG#..AT211,CT216,ST21#199708

27388COVER, ALTERNATOR BRUSH

main27388-42010i7AFE,3SFE,3SG#..AT211,ST21#199708

main27388-46220i3CTE..CT216199708

27411PULLEY, ALTERNATOR

main27411-42030i7AFE,3SFE,3SGE..AT211,ST21#199708

main27411-64490i3CTE..CT216199708

main27411-74050i3SGTE..ST215199708

27443COVER, ALTERNATOR BEARING

main27443-63020i7AFE,3CTE,3SFE,3SG#..AT211,CT216,ST21#199708

27700AREGULATOR ASSY, GENERATOR

main27700-62010i3CTE..CT216199708

main27700-64130i3SGTE..ST215199708

sub27700-46060

main27700-74040i7AFE,3SFE,3SGE..AT211,ST21#199708

2736555080PLATE, TERMINAL

main27365-55080

2738450030WASHER

main27384-50030

2738942010INSULATOR, TERMINAL

main27389-42010

2744616390CLIP, ALTERNATOR CORD

main27446-16390

9009900195

main90099-00195

9009900197

main90099-00197

9009900243

main90099-00243

9009900246

main90099-00246

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9011908875

main90119-08875

9017906158

main90179-06158

9017910181

main90179-10181

9331914025

main93319-14025
