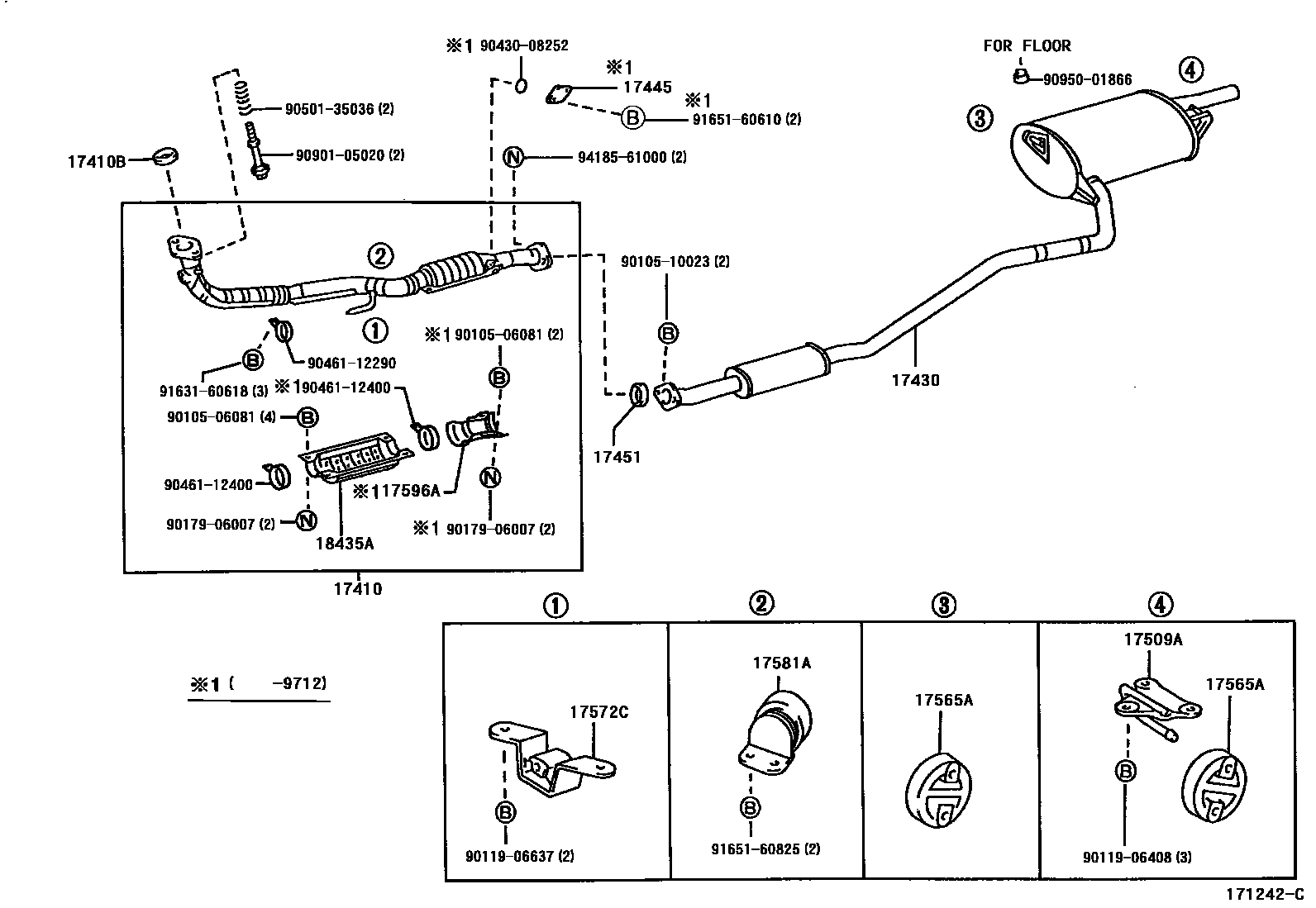

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-1A390i7AFE..AT211199708-199712

main17410-1A580i7AFE..AT211199712-199906

main17410-1A581i7AFE..AT211199906

main17410-64680i3CTE..CT216199708

main17410-7A400i3SFE..ST210199708

main17410-7A410i3SFE..ST210199708-199712

main17410-7A680i3SFE..ST215199708

main17410-7A690i3SGE..ST215199708

main17410-7A700i3SGTE..ST215199708

main17410-7A750i3SFE..ST210199712-199906

main17410-7A751i3SFE..ST210199906

main17410-7B010i3SGE..ST210199912

17410BGASKET, EXHAUST PIPE

main17451-16030i7AFE..AT211199708

main17451-64010i3CTE..CT216199708

main17451-74051i3SFE,3SGTE..ST215199708

main90917-06061×2i3SFE..ST210199708

main90917-06075×2i3SGE..ST21#199708

17430PIPE ASSY, EXHAUST, TAIL

main17430-1D100i7AFE,3SFE..AT211,ST210199708-199912

main17430-6A260i3CTE..CT216199708

main17430-7B010i3SFE..ST215199708-199912

main17430-7B020i3SGE..ST215199708

main17430-7B030i3SGTE..ST215199708-199805

main17430-7B031i3SGTE..ST215199805

main17430-7B210i7AFE,3SFE..AT211,ST210199912

main17430-7B270i3SGE..ST210199912

main17430-7B280i3SFE..ST215199912

17445COLLAR, EXHAUST PIPE

main17445-50010i7AFE,3SFE..AT211,ST210199708-199712

17451GASKET, EXHAUST PIPE

main17451-16030i3SFE..ST210199708

main90917-06046i3SFE..ST210; 7AFE,3SFE..AT211,ST215199708

main90917-06048i3CTE..CT216199708

main90917-06078i3SG#..ST21#199708

17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT

main17509-16060i3SFE..ST215;7AFE,3CTE,3SFE,3SGE..AT211,CT216,ST210199708

main17509-74220i3SG#..ST215199708

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-11160i3SG#..ST215199708

main17565-16270i3CTE,3SFE..CT216,ST215; 7AFE,3SFE,3SGE..AT211,ST210199708

17572CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-74430i7AFE,3SFE,3SGE..AT211,ST210199708

main17571-74510i3SFE,3SG#..ST215199708

17581ADAMPER, EXHAUST PIPE

main17581-16030i7AFE..AT211199708

17596APROTECTOR, EXHAUST PIPE, LOWER NO.4

main17596-16180i7AFE,3SFE..AT211,ST210199708-199712

main17596-74180i3SGE..ST215199708

18435APROTECTOR, MONOLITHIC CONVERTER

main18435-16170i7AFE,3SFE..AT211,ST210199708-199906

main18435-16190i7AFE,3SFE..AT211,ST210199906

9010506081

main90105-06081

9010510023

main90105-10023

9011906408

main90119-06408

9011906637

main90119-06637

9017906007

main90179-06007

9043008252

main90430-08252

9046112290

main90461-12290

9046112400

main90461-12400

9050135036

main90501-35036

9090105020

main90901-05020

9095001866

main90950-01866

9163160618

main91631-60618

9165160610

main91651-60610

9165160825

main91651-60825

9418561000

main94185-61000

26 parts on this diagram · 7 diagrams in section
