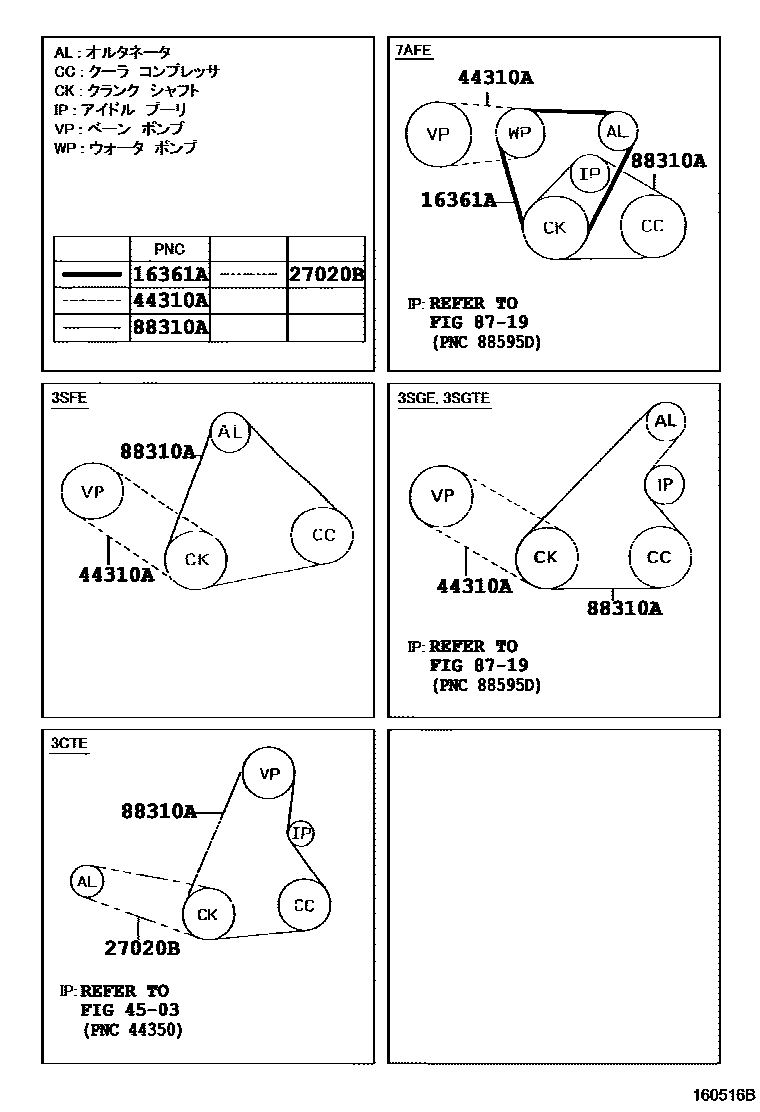

V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-91055i7AFE..AT211199708

27020BBELT, V(FOR ALTERNATOR)

main90916-02447i3CTE..CT216199708-200209

44310ABELT, V(FOR VANE PUMP)

main99363-80760iST21#199708-199801

main99363-90630iAT211199708

main99363-90760iST21#199708-199801

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02422iST21#..GT199708

main90916-02423iAT211199708

main90916-02424iAT211199708-199803

main90916-02433iAT211199803

main90916-02495iST215..GTT199907

main99365-21210iCT216199708

main99365-31130iST215..GTT199708-199909

main99365-81110iST21#..E,G199708

main99365-91110iST21#..E,G199708

main99365-91120iST21#..GT199708

main99365-91130iST215..GTT199708-199909

6 parts on this diagram · 1 diagram in section
