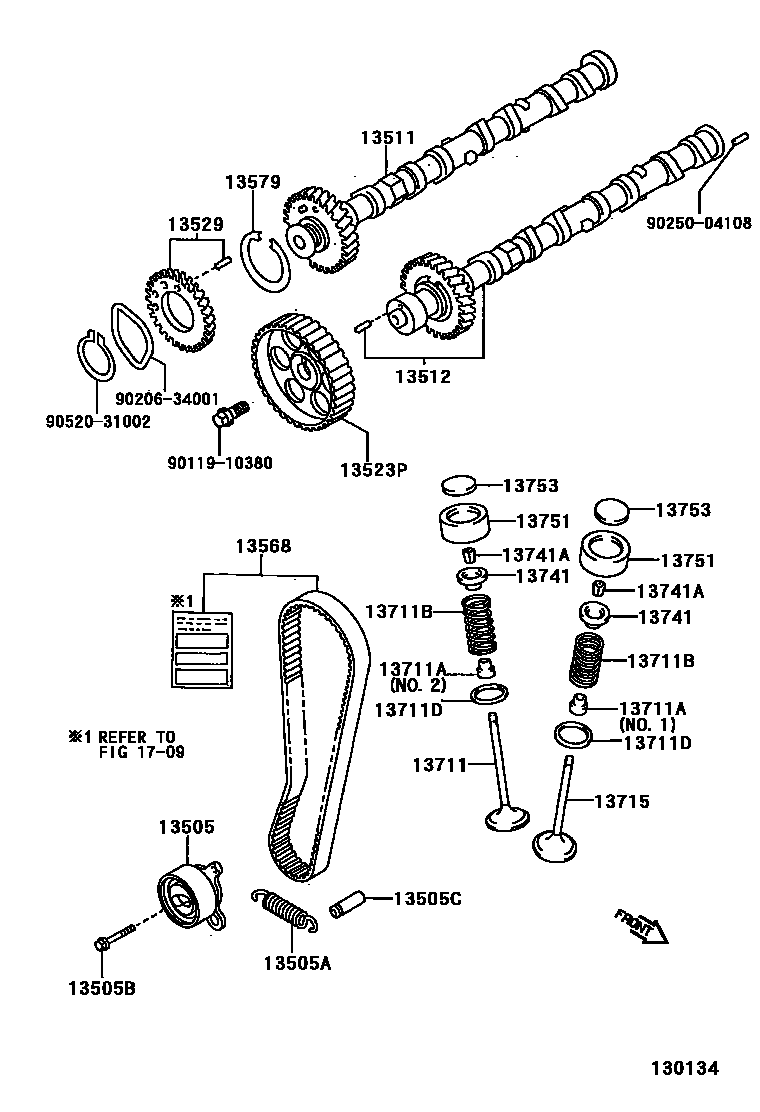

CAMSHAFT & VALVE
13505BBOLT, FLANGE (FOR IDLER)
13505CPIN(FOR IDLER SPRING TENSION)
13511CAMSHAFT
13512CAMSHAFT, NO.2
13523PPULLEY, CAMSHAFT TIMING
13529GEAR, CAMSHAFT SUB
13579WASHER, CAMSHAFT TIMING GEAR BOLT
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
13715VALVE, EXHAUST
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
1709
9011910380
main90119-10380
9020634001
main90206-34001
9025004108
main90250-04108
9052031002
main90520-31002
24 parts on this diagram · 5 diagrams in section
