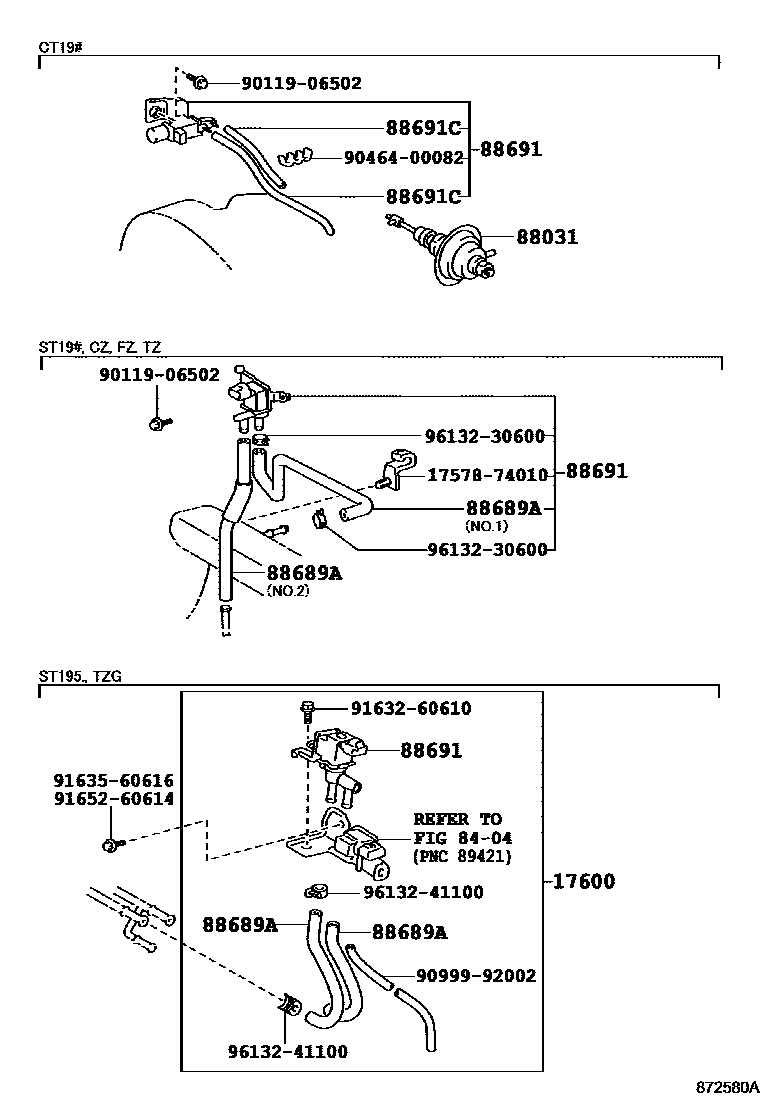

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0003 1

17600VALVE ASSY, AIR BY-PASS W/HOSE

main17600-74251i3SGE..ST195199502-199601

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

88031ACTUATOR SET, IDLE-UP

main88031-20080iCT19#..DSL199211-199805

main88031-27040iCT190199601-199708

88689AHOSE, COOLER VACUUM NO.1

main17341-74421iST19#..CZ,FZ,TZ199211-199601

main17341-74630×2iST195..TZG199502-199601

main17342-74200iST19#..CZ,FZ,TZ199211-199601

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main17600-64020iCT198199211-199601

main17600-64040iCT190,196..CZ,FZ,UX; CT196..U,UL199211-199601

main17600-74081iST19#..CZ,FZ,TZ199211-199601

main25860-64150iCT196,198..U,UL199601-199805

main25860-74110iST195..TZG199502-199601

main88691-17030iET196..U,UL199708-199805

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main90999-92002iCT190,196..CZ,FZ,UX; CT196..U,UL; CT198199211-199601

main95411-10038iCT196,198..U,UL199601-199805

1757874010CLAMP, PIPE

main17578-74010

9011906502

main90119-06502

9046400082

main90464-00082

9099992002

main90999-92002

9163260610

main91632-60610

9163560616

main91635-60616

9165260614

main91652-60614

9613230600

main96132-30600

9613241100

main96132-41100

15 parts on this diagram · 2 diagrams in section
