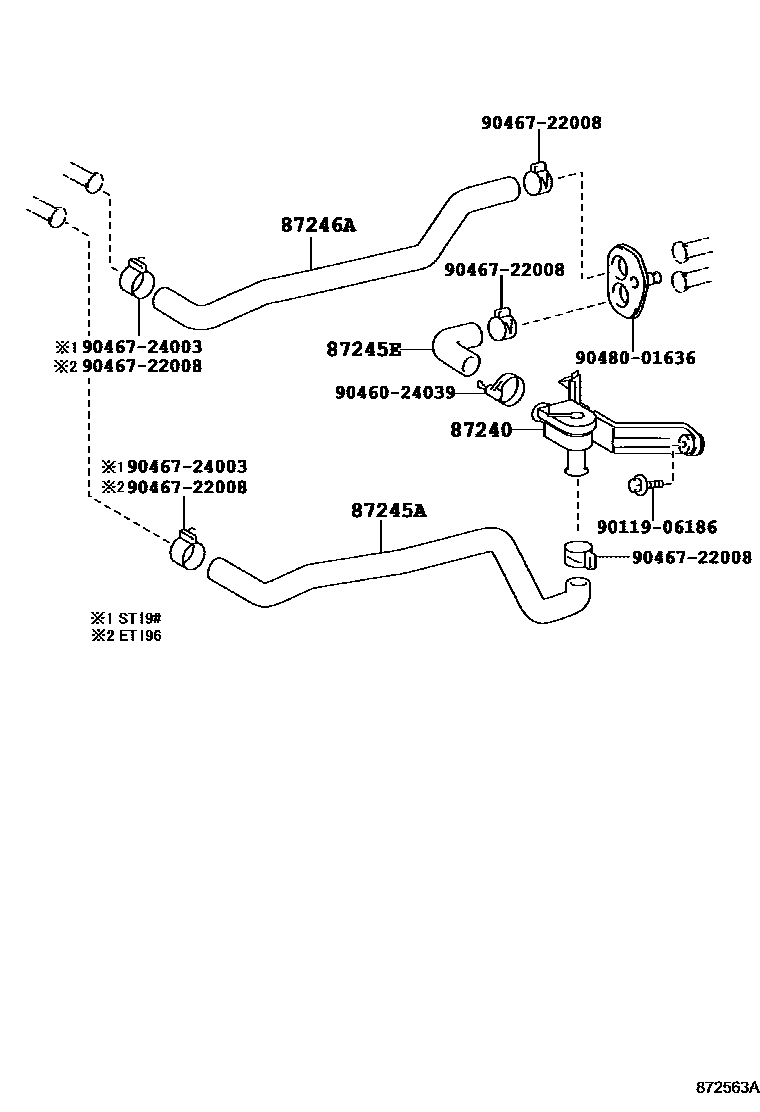

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

87240VALVE ASSY, HEATER WATER

main87240-20370iCT19#,ET196,ST19#199211-199502

87245AHOSE, HEATER WATER, INLET A

main87245-21010iET196199211-199601

main87245-21030iST195..TZG199601-199708

main87245-21050iET196199601-199805

main87245-21070iCT196,198199601-199805

main87245-21130iET196199805

main87245-21150iCT19#199805

main87245-2B650iST19#..CZ,FZ,TZ199211-199601

main87245-2B690iCT190,196199211-199601

main87245-2B830iCT198199211-199601

main87245-2D230iST195..TZG199502-199601

main87245-2D310iAT191199601-199708

main87245-2D330iST19#..CZ,TZ,U,UL,UX199601

main87245-2D350iCT190199601-199708

87245EHOSE, HEATER WATER, INLET E

main87245-2B610iCT19#,ET196,ST19#199211-199502

87246AHOSE, HEATER WATER, OUTLET A

main87245-21020iET196199211-199601

main87245-21040iST195..TZG199601-199708

main87245-21060iET196199601-199805

main87245-21080iCT196,197,198,199199601

main87245-21140iET196199805

main87245-2B660iST19#..CZ,FZ,TZ199211-199601

main87245-2B700iCT190,196199211-199601

main87245-2B840iCT198199211-199601

main87245-2D220iST195..TZG199502-199601

main87245-2D320iAT191199601-199708

main87245-2D340iST19#..CZ,TZ,U,UL,UX199601

main87245-2D360iCT190199601-199708

9011906186

main90119-06186

9046024039

main90460-24039

9046722008

main90467-22008

9046724003

main90467-24003

9048001636

main90480-01636

9 parts on this diagram · 3 diagrams in section
