HORN

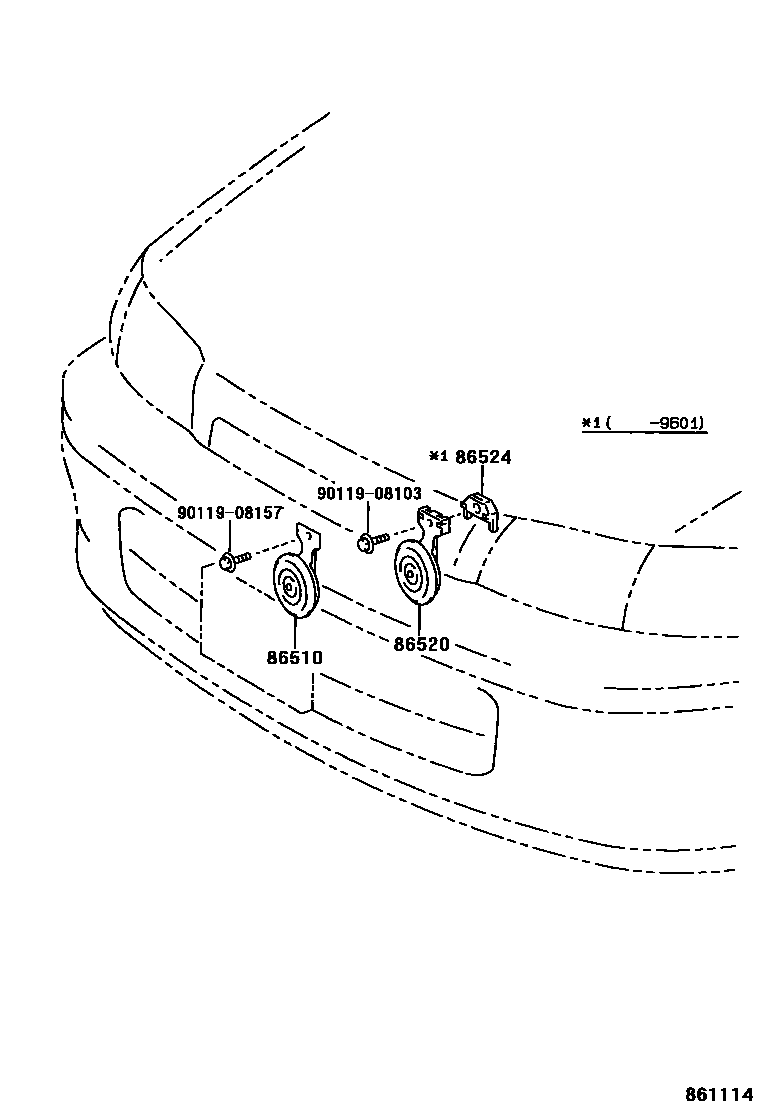

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-20210i199211-199601

main86510-20260i199601-199908

86520HORN ASSY, LOW PITCHED

main86520-20220i199211-199601

main86520-20280i199601

86524SPACER, HORN

main86524-32020i199211-199601

9011908103

main90119-08103

9011908157

main90119-08157

5 parts on this diagram · 1 diagram in section
