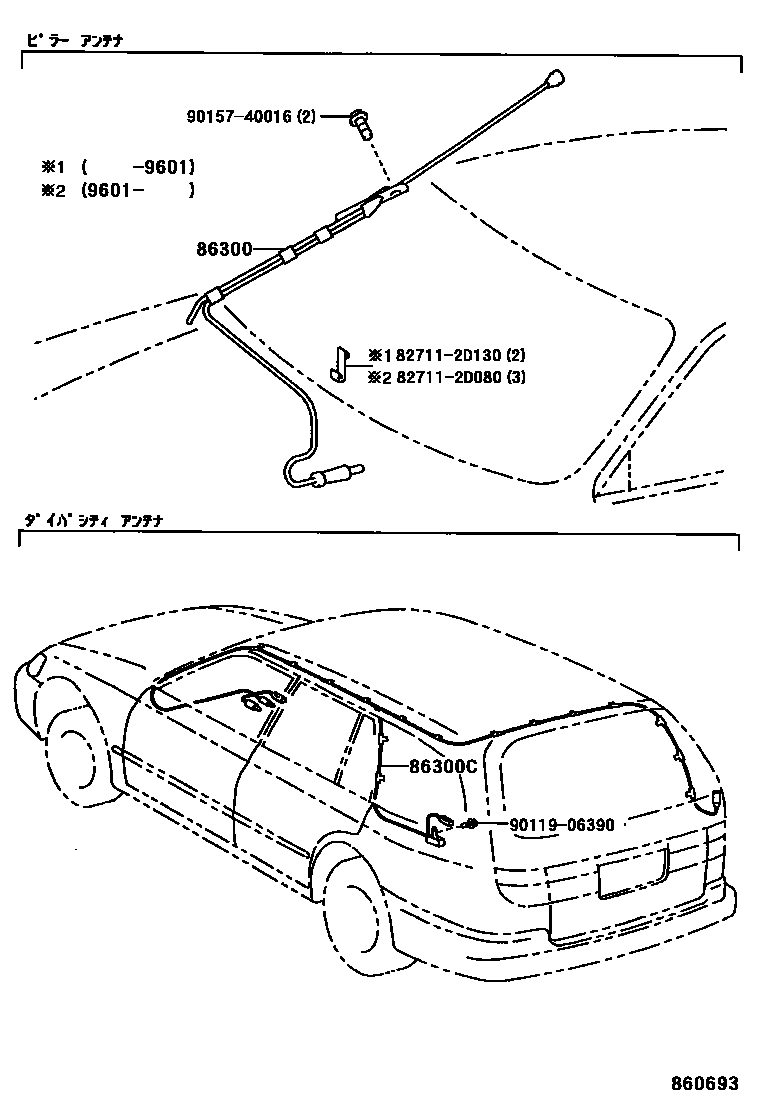

ANTENNA

0001 1 0002 1�-� ����

86300ANTENNA ASSY, W/HOLDER

main86300-21030iCT190,ST19#199211-199402

sub86300-21031

main86300-21031iAT191,CT190,ST19#199402-199602

sub86300-21070

main86300-21060iCT196,197,198,199,ET196,ST198199601

main86300-21070iAT191,CT190,ST19#199602-199708

main86300-2B180iCT196,198,ET196199211-199601

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-21010iCT190..CZ;ST191,195..TZ,TZG199402-199601

main86300-21010iST190..CZ,TZ;ST191,195..CZ199211-199402

main86300-21010iST190..CZ,TZ;ST191,195..CZ199211-199402

main86300-21010iST190..CZ,TZ;ST191,195..CZ199402-199601

main86300-21011iCT190..4FC..CZ;AT191,ST19#..CZ,TZ,TZG199601-199708

main86300-21020iCT190..CZ;ST191,195..TZ199211-199402

main86300-21020iST190..CZ,TZ;ST191,195..CZ199211-199402

main86300-21020iCT190..CZ;ST191,195..TZ,TZG199402-199601

main86300-21020iCT190..CZ;ST191,195..TZ,TZG199402-199601

main86300-21021iCT190..4FC..CZ;AT191,ST19#..CZ,TZ,TZG199601-199708

main86300-21040iST191,195..CZ199402-199406

main86300-21040iST191,195..TZ199302-199402

main86300-21040iST191,195..CZ199306-199402

main86300-21040iCT190..CZ199302-199406

main86300-21040iST191,195..TZ199402-199406

main86300-21041iCT190..CZ199406-199601

main86300-21041iST191,195..CZ199406-199601

main86300-21041iST191,195..CZ199406-199601

main86300-21042iST19#199601-199708

827112D080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2D080

827112D130WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2D130

9011906390

main90119-06390

9015740016

main90157-40016

6 parts on this diagram · 2 diagrams in section
