REAR WASHER

8503

85031CVALVE SUB-ASSY, WASHER

main85031-90A00iAT191,CT19#,ET196,ST19#199211-199602

sub85375-12520

main85375-12520iAT191,CT19#,ET196,ST19#199602

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-21010iAT191,CT19#,ET196,ST19#199211

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iCT190..4FC199211-199307

main85349-89122iCT19#,ET196,ST19#..CZ,FZ,UL,UX199307-199606

main85349-89122iCT196,198,ET196..U199307-199601

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-14481iAT191,CT19#,ET196,ST19#199601

85349FJOINT, REAR WASHER HOSE, NO.1

main85349-32150iAT191,CT19#,ET196,ST19#199211

85349JJOINT, REAR WASHER HOSE, NO.4

main85349-89122iCT198,199..U199211

main85349-89122iST198199908

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33299iAT191,CT19#,ET196,ST19#199601-199606

main90446-07001iAT191,CT19#,ET196,ST19#199704

main90446-07001iAT191,CT19#,ET196,ST19#199606-199704

85374BHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.1)

main85317-28040iCT196,ST19#;CT190,198,ET196..3FC,5F199211-199601

main90446-07001iCT196,ST19#;CT190,198,ET196..3FC,5F199211-199601

main90446-07001iCT190..4FC199211-199601

85374CHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.2)

main90099-33080iCT190..4FC199211-199601

main90099-33080iCT190,198,ET196..3FC,5F;CT196,ST19#..CZ,FZ,U,UL,UX199211-199601

main90446-07001iCT196,ST19#;CT190,198,ET196..3FC,5F199211-199601

85374DHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.3)

main90099-33080iCT196,ST19#;CT190,198,ET196..3FC,5F199211-199601

85374FHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.5)

main90099-33651iAT191,CT19#,ET196,ST19#199211-199602

sub90446-07001

main90446-07001iAT191,CT19#,ET196,ST19#199602

85374GHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.6)

main90446-06006iCT19#,ET196,ST19#199211-199601

main90446-06006iAT191,CT190,ST19#199601-199708

main90446-06006iCT196,197,198,199,ET196,ST198199601

85374HHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.7)

main90099-33080iCT19#,ET196,ST19#199211-199601

main90099-33080iAT191,CT19#,ET196,ST19#199601

85374JHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.8)

main90446-07001iAT191,CT19#,ET196,ST19#199211

85374KHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.9)

main90099-33080iCT19#,ET196,ST19#199211-199601

main90099-33080iAT191,CT19#,ET196,ST19#199601

8538921020PACKING, WINDSHIELD WASHER HOSE, NO.1

main85389-21020

9048014013

main90480-14013

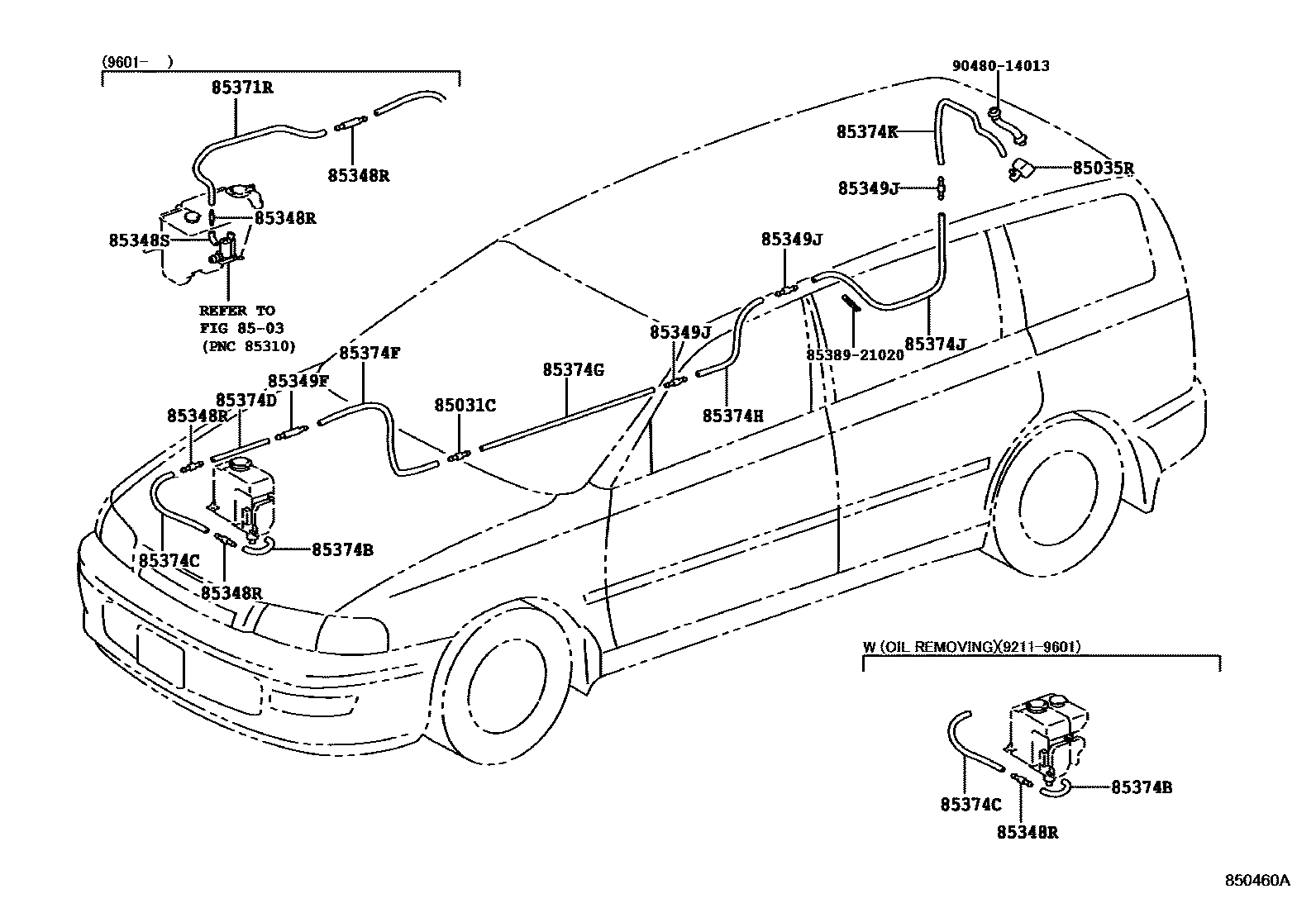

18 parts on this diagram · 1 diagram in section
