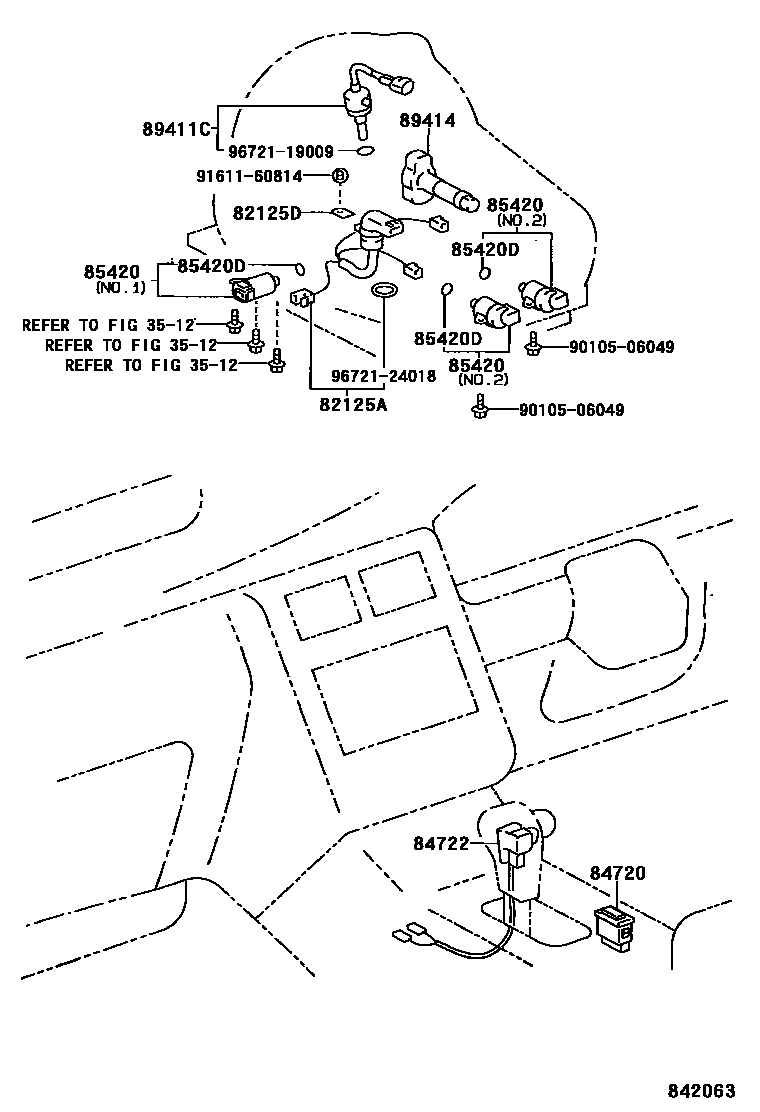

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

82125AWIRE, TRANSMISSION

main82125-20160iST190,191..4FC199211-199402

main82125-20170iCT190,196..4FC199211-199512

main82125-20220iST190,191..4FC199402-199708

main82125-20230iAT191..4FC199601-199708

main82125-20240iCT190,196,197..4FC199512

main82125-32050iST195,198..4FC199211

82125DPLATE, TRANSMISSION WIRE LOCK

main33485-30020iCT190,196,197,ST190,191..4FC199211

84720SWITCH ASSY, PATTERN SELECT

main84720-20080iST19#..4FC199211-199601

main84720-20170iAT191,ST19#..4FC199601

84722SWITCH, TRANSMISSION CONTROL

main84722-20110-C0iCT190,196,ST19#..4FC199211-199305

BLACK,TRIM2#

main84722-20150-C0iCT190,196,ST19#..4FC199305-199402

BLACK,TRIM2#

main84722-20170-C0iAT191,CT190,196,197,ST19#..4FC199601

BLACK,TRIM1#

85420SOLENOID ASSY, TRANSMISSION

main85420-10011iCT190,196..4FC199211-199512

main85420-12062iST190,191..4FC199211-199402

main85420-12100iAT191..4FC199601-199708

main85420-12120iAT191..4FC199601-199708

main85420-20140iST191199601-199708

main85420-20160iAT191..4FC199601-199708

main85420-20180iCT190,196,197..4FC199512

main85420-22080×2iST190,191..4FC199211-199402

main85420-30200×2iST191199601-199708

main85420-32102iST195,198..4FC199211

main85420-32111iST195,198..4FC199701

main85420-32120iST195..4FC199211-199701

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×6iST191199601-199708

89411CSENSOR, SPEED

main89411-20050iST190,191..4FC199211-199402

89414ROTOR, SENSOR

main89414-12010iST190,191..4FC199211-199402

9010506049

main90105-06049

9161160814

main91611-60814

9672119009

main96721-19009

9672124018

main96721-24018

13 parts on this diagram · 6 diagrams in section
