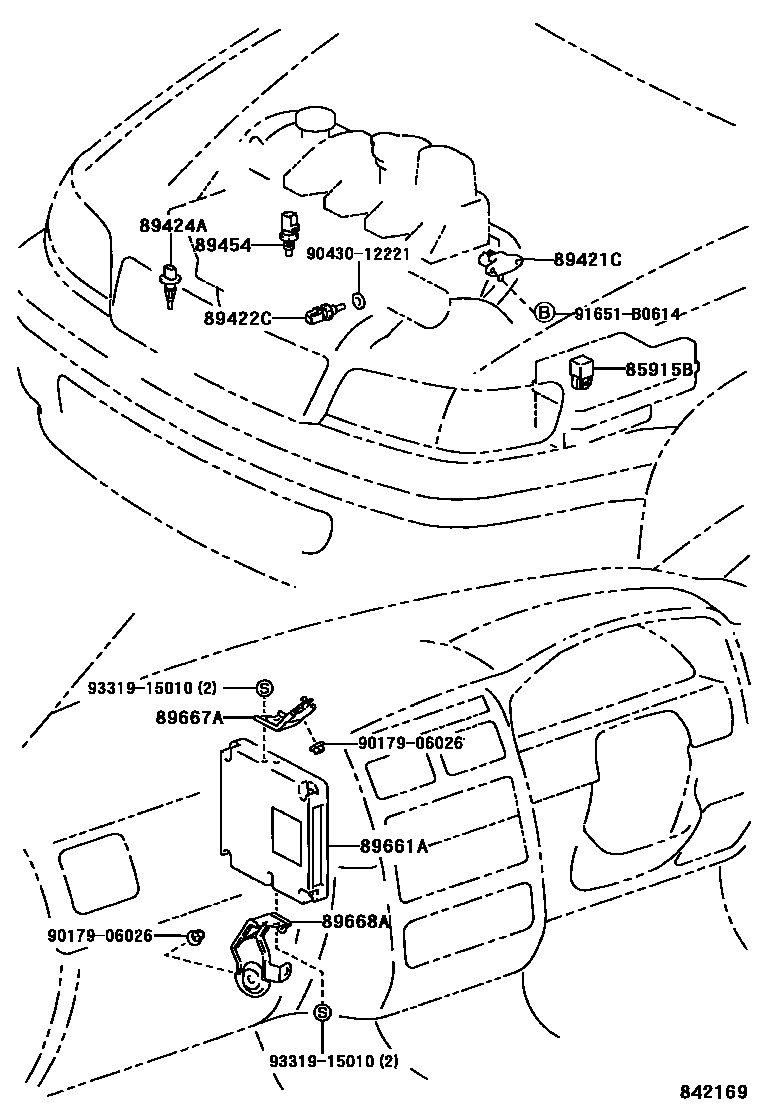

ELECTRONIC CONTROLED DIESEL (ECD)

85915BRELAY, MAIN (FOR DIESEL TURBO)

main90987-02012iCT19#199805

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89420-20260iCT19#199805

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-35010iCT19#199805

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-12010iCT19#199805

89454SENSOR, FUEL TEMPERATURE

main89454-60010iCT19#199805

89661ACOMPUTER, ENGINE CONTROL

main89661-21350iCT197..5F199805

main89661-21360iCT197..4FC199805

main89661-21370iCT199199805

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-20380iCT19#199805

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-20340iCT19#199805

9017906026

main90179-06026

9043012221

main90430-12221

91651B0614

main91651-B0614

9331915010

main93319-15010

12 parts on this diagram · 1 diagram in section
