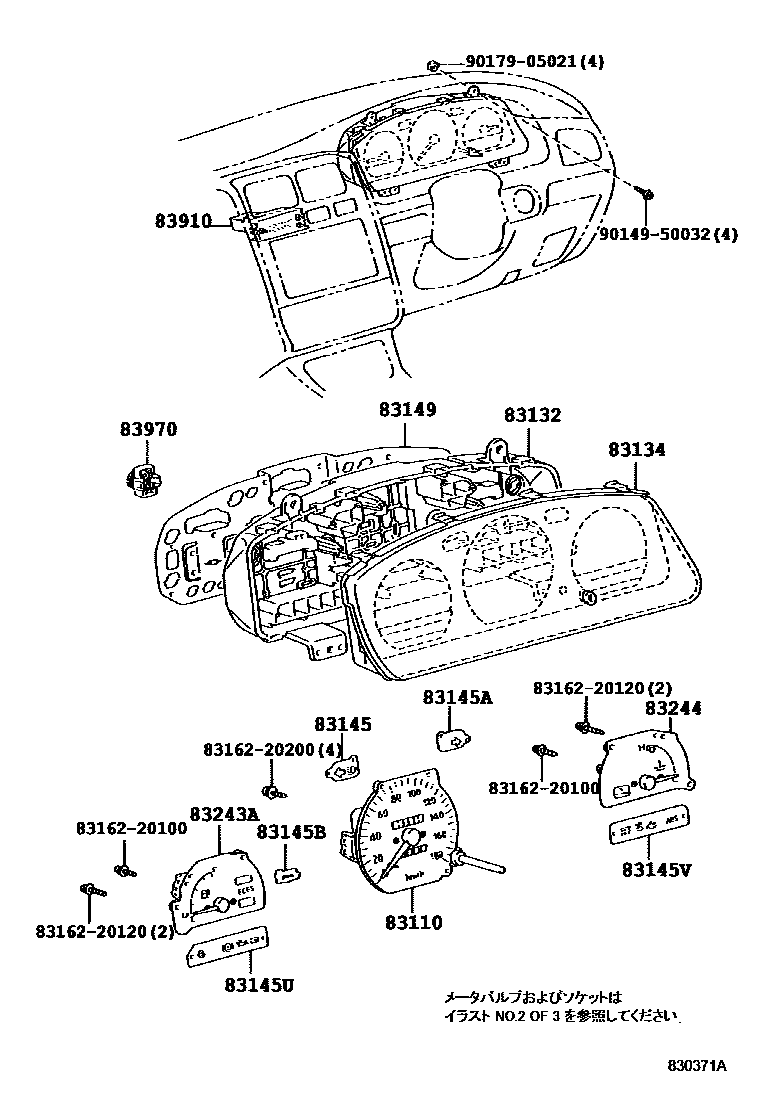

METER

0001 1������-�, ��(���-�) 0002 1������-�, ��(���-�) 0003 1�������-� 0004 1������-�, ��(���-�) 0005 1������-�, ��(���-�) 0006 1������-�, ��(���-�) 0007 1������-�, ��(���-�) 0008 1����� & ����(������-�, ��(���0009 1����� & ����(������-�, ��(���0010 1����� & ����(���������) 0011 1����� & ����(������-�, ��(���0012 1����� & ����(������-�, ��(���0013 1����� & ����(������-�, ��(���0014 1����� & ����(������-�, ��(���0015 1���-�����,����-��� ������,���

83110SPEEDOMETER ASSY

main83110-2D310iCT190,ST19#199211-199402

main83110-2D390iCT196,198,ET196199211-199601

main83110-2D590iCT190,ST19#199402-199601

main83220-20030iAT191,CT19#,ET196,ST19#199601

83132CASE, COMBINATION METER

main83132-20600iST19#..TZ199211-199402

main83132-20620iCT196,198,ET196199211-199601

main83132-20640iCT190,ST19#199211-199402

main83132-2D060iCT190,ST19#199402-199601

main83841-20130iAT191,CT19#,ET196,ST19#199601

83134COVER, COMBINATION METER, NO.1

main83134-20120iST195..5F..TZ199211-199402

main83134-20160iST19#..4FC..TZ199211-199402

main83134-20180iCT196,198,ET196199211-199601

main83134-20200iCT190;ST190,195..5F199211-199402

main83134-20220iST19#..4FC199211-199402

main83134-20240iCT190;ST190,195..5F199402-199601

main83134-20260iST19#..4FC199402-199601

main83821-20130iST198;AT191,CT190,ST195..5F199601

main83821-20140iAT191,CT190,ST19#..4FC199601-199708

main83821-21030iCT196,197,198,199,ET196199601

83145LENS, METER, NO.1

main83145-2D640iST195..TZ;ST195..5F..CZ;CT19#,ET196,ST190,191199311-199402

main83146-20520iCT19#,ET196,ST19#199211-199311

main83831-20130iAT191,CT19#,ET196,ST19#199601

83145ALENS, METER, NO.2

main83145-2D620iCT19#,ET196,ST19#199311-199601

main83146-20500iCT19#,ET196,ST19#199211-199311

main83831-20180iCT190199601-199708

main83831-21030iET196199601-199805

main83831-21031iET196199805

main83831-21050iCT196,198199601-199805

main83831-21051iCT19#199805

main83831-21180iST198199908

main83832-20130iAT191,ST19#199601-199708

83145BLENS, METER, NO.3

main83145-2D660iST19#..4FC199311-199601

main83146-20580iST19#..4FC199211-199311

main83831-20140iAT191,ST191..4FC199601-199708

main83831-20150iST195..5F..(CZ,TZ)199601-199708

main83831-20170iST195..4FC199601-199708

main83832-20180iCT190199601-199708

main83832-21030iCT196,197,198,199,ET196,ST198199601

main83833-20130iAT191..5F;ST195..5F..TZG199601-199708

83145ULENS, METER, NO.9

main83146-20060iCT196,198,ET196199211-199601

83145VLENS, METER, NO.10

main83145-21060iCT196,198..5F199211-199601

main83145-21080iCT196..4FC199211-199601

main83146-20080iET196199211-199601

83149PLATE, METER CIRCUIT

main83149-20040iCT196,198,ET196..5F199211-199601

main83149-20260iCT190,ST190,195..5F199211-199601

main83149-20280iST190,191..4FC199211-199601

main83149-20300iST195..4FC199211-199601

main83149-20320iCT190..4FC199211-199601

main83247-21020iET196..3FC199211-199601

main83247-21040iCT196..4FC199211-199601

main83861-20130iAT191,CT190,ST195..5F199601-199708

main83861-20140iAT191,CT190,ST191..4FC199601-199708

main83861-20170iCT196..4FC199703-199708

main83861-21030iCT196,198,ET196199601-199708

main83861-21031iET196199708-199805

main83861-21032iET196199805

main83861-21051iCT19#199708-199805

main83861-21052iCT19#199805

main83861-21180iST198199908

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-20660iST190,191;ST195..5F199211-199402

main83243-20680iCT190199211-199402

main83243-20800iST195..4FC199211-199402

main83243-20820iST191199211-199402

main83243-21020iCT196,198,ET196199211-199601

main83243-2D040iST190,191;ST195..5F199402-199601

main83243-2D060iST195..4FC199402-199501

main83243-2D080iCT190199402-199601

main83243-2D160iST195..4FC199501-199601

main83882-20130iAT191,CT19#,ET196,ST19#199601

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-20460iCT196,198,ET196199211-199601

main83883-20130iAT191,CT19#,ET196,ST19#199601

83910CLOCK ASSY

main83910-20640iCT19#,ET196,ST19#199211-199601

main83910-20720iAT191,CT19#,ET196,ST19#199601

83970BUZZER ASSY, REVERSE WARNING

main83970-12020iAT191,CT190,196,197,ET196,ST19#..ATM199601

main83970-20010iCT190,ST19#..4FC199306-199601

8316220100CASE, COMBINATION METER MIRROR, NO.2

main83162-20100

8316220120CASE, COMBINATION METER MIRROR, NO.2

main83162-20120

8316220200CASE, COMBINATION METER MIRROR, NO.2

main83162-20200

9014950032

main90149-50032

9017905021

main90179-05021

18 parts on this diagram · 15 diagrams in section
