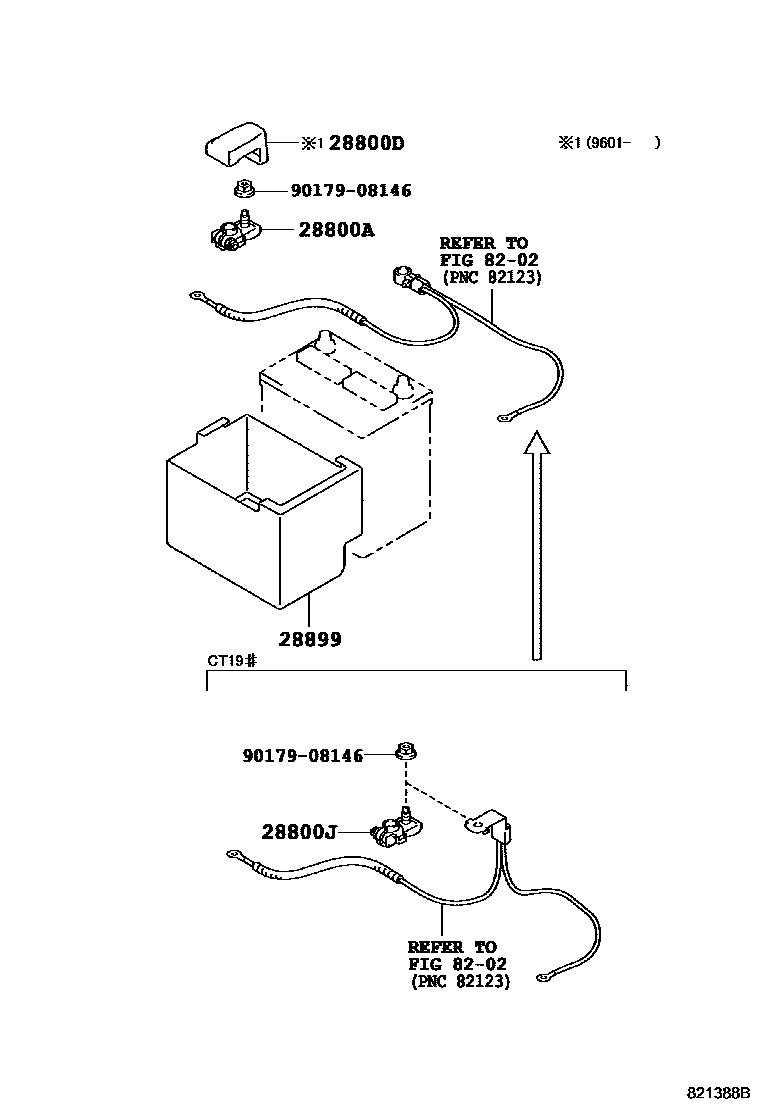

BATTERY & BATTERY CABLE

0001 1 0002 1

28800ATERMINAL, BATTERY POSITIVE

main90982-05028i7AFE,5EFE,3S#,4SFE..AT191,ET196,ST19#199211

main90982-05030i2C#,3CE..CT19#199601

main90982-05035i2C..CT19#199211-199601

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-20350i7AFE,2C#,3CE,5EFE,3S#..AT191,CT19#,ET196,ST19#199601

28800JTERMINAL, BATTERY NEGATIVE

main90982-06026i2C#,3CE..CT19#199211

28899INSULATOR, BATTERY

main28899-46020i3SFE..ST195..5F199601-199708

main28899-54050i3CE..CT197..4FC199805

main28899-62010i3SFE..ST195..5F; 3SGE..ST195;3SFE..ST191,195..4FC199211-199601

main28899-64030i2C..CT19#199211-199212

main28899-64031i2C..CT19#199212-199601

main28899-64040i2C..CT19#199211-199212

main28899-64041i2C..CT19#199212-199601

main28899-64110i3CE..CT197..5F;2C#,3CE..CT190,196,198,199199601

main28899-74050i3SFE..ST195..5F199211-199601

main28899-74150i3SFE..ST195..5F199601-199708

8202WIRING & CLAMP

→ Go to FIG 82-02

9017908146

main90179-08146

6 parts on this diagram · 2 diagrams in section
