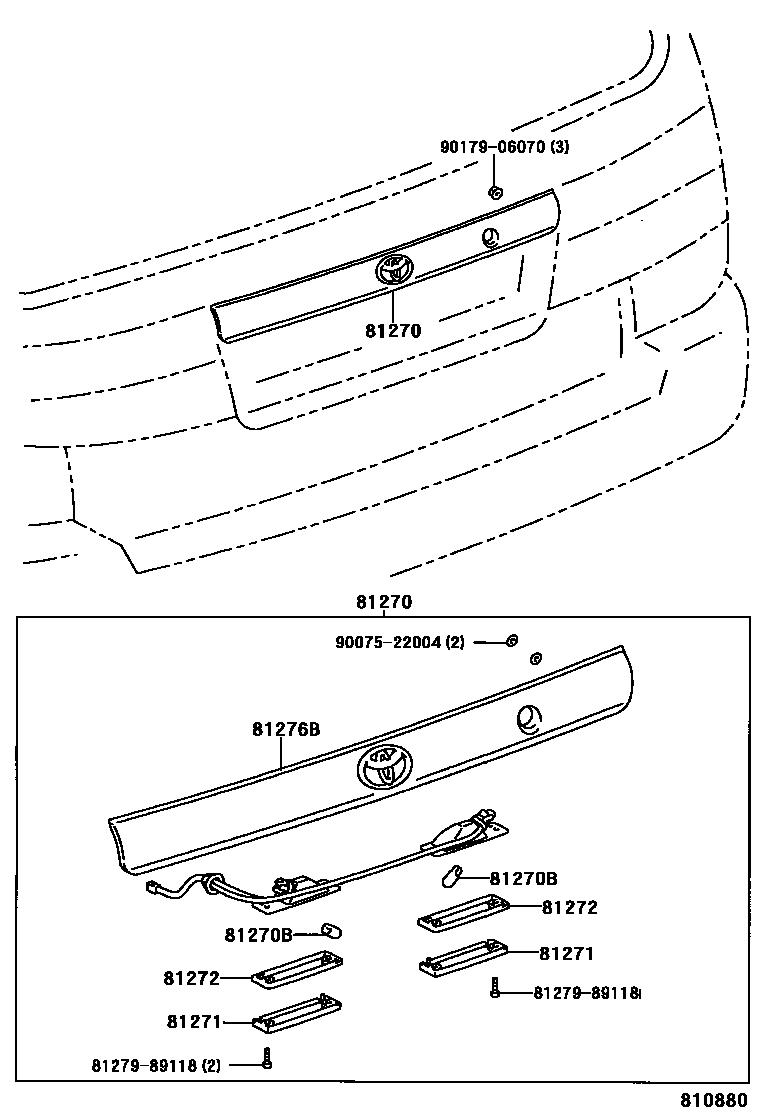

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-21110-A0iCT190,ST19#199211-199501

SUPER WHITE 2,040

main81270-21110-B1iCT190,ST19#199402-199501

LT.GRAIGE ME.,1A2

main81270-21110-C0iCT190,ST19#..CZ,TZ199211-199501

BLACK ME,21Y ,26V

main81270-21110-D1iCT190,ST19#199211-199402

DK.MAUVE MM,3K1

main81270-21110-D2iCT190,ST19#199402-199501

MAGENTA MC.,3L3

main81270-21110-D3iST191,195..TZ199402-199407

main81270-21110-E0iCT190,ST19#199211-199402

LI.BEIGE ME,4M3

main81270-21110-G0iCT190,ST19#199211-199501

DK.GRAYISH OLIVE ME,6M7

main81270-21110-H0iST191,195..TZ199405-199407

main81270-21111-A0iCT190,ST19#199502-199601

SUPER WHITE 2,040

main81270-21111-B1iCT190,ST19#199502-199601

LT.GRAIGE ME.,1A2

main81270-21111-B2iST191,195..TZ199508-199601

main81270-21111-C0iCT190,ST19#..CZ,TZ,TZG199502-199601

BLACK ME,26V

main81270-21111-D2iCT190,ST19#199502-199601

MAGENTA MC.,3L3

main81270-21111-G0iCT190,ST19#199502-199601

DK.GRAYISH OLIVE ME,6M7

main81270-21111-J2iCT190,ST19#..CZ,TZ,TZG199501-199601

DK.BLUE M.M.,23V

main81270-21120iCT196,197,198,199,ET196,ST198199211

main81270-21130-B0iAT191,CT190,ST19#199601-199708

BLUISH SILVER ME.,1A0

main81270-21130-C0iAT191,CT190,ST19#..CZ,TZ,TZG199601-199708

BLACK ME,26V

main81270-21130-D0iAT191,CT190,ST19#199601-199708

MAGENTA MC.,3L3

main81270-21130-G0iAT191,CT190,ST19#..CZ,TZ,TZG199601-199708

DK.GREEN M.M.,2BL

main81270-21130-J0iAT191,CT190,ST19#..CZ,TZ,TZG; AT191,CT190..FZ199601-199708

DK.BLUE M.M.,2BM ,8L3; DK.BLUE M.M.,8L3

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2iAT191,CT19#,ET196,ST19#199211

81271LENS, LICENSE PLATE LAMP

main81271-21110×2iAT191,CT19#,ET196,ST19#199211

81272GASKET, LICENSE PLATE LAMP LENS

main81272-95J07×2iAT191,CT19#,ET196,ST19#199211

81276BCOVER, LICENSE PLATE LAMP

main81276-21110-A0iCT190,ST19#199211-199501

SUPER WHITE 2,040

main81276-21110-B1iCT190,ST19#199402-199501

LT.GRAIGE ME.,1A2

main81276-21110-C2iCT190,ST19#..CZ,TZ199211-199501

BLACK ME,21Y ,26V

main81276-21110-D1iCT190,ST19#199211-199402

DK. MAUVE MM,3K1

main81276-21110-D2iCT190,ST19#199402-199501

MAGENTA MC.,3L3

main81276-21110-D3iST191,195..TZ199402-199407

main81276-21110-E0iCT190,ST19#199211-199402

LI. BEIGE ME,4M3

main81276-21110-G0iCT190,ST19#199211-199501

DK. GRAYISH OLIVE ME,6M7

main81276-21110-H0iCT190,ST19#..CZ,TZ199211-199501

DK. TURQUOISE. MC,25V ,2AA ,742

main81276-21111-A0iCT190,ST19#199502-199601

SUPER WHITE 2,040

main81276-21111-B1iCT190,ST19#199502-199601

LT.GRAIGE ME.,1A2

main81276-21111-B2iST191,195..TZ199508-199601

main81276-21111-C2iCT190,ST19#..CZ,TZ,TZG199502-199601

BLACK ME.,26V

main81276-21111-D2iCT190,ST19#199502-199601

MAGENTA MC.,3L3

main81276-21111-G0iCT190,ST19#199502-199601

DK,GRAYISH OLIVE ME,6M7

main81276-21111-J2iCT190,ST19#..CZ,TZ,TZG199501-199601

DK.BLUE M.M.,23V

main81276-21120iCT196,197,198,199,ET196,ST198199211

main81276-21130-B0iAT191,CT190,ST19#199601-199708

BLUISH SILVER ME.,1A0

main81276-21130-C0iAT191..FZ199610

main81276-21130-D0iAT191,CT190,ST19#199601-199708

MAGENTA MC.,3L3

main81276-21130-G0iAT191,CT190,ST19#..CZ,TZ,TZG199601-199708

DK.GREEN M.M.,2BL

main81276-21130-J0iAT191,CT190,ST19#..CZ,TZ,TZG; AT191,CT190..FZ199601-199708

DK.BLUE M.M.,2BM ,8L3; DK.BLUE M.M.,8L3

8127989118WASHER, SIDE TURN SIGNAL LAMP

main81279-89118

9007522004

main90075-22004

9017906070

main90179-06070

8 parts on this diagram · 1 diagram in section
