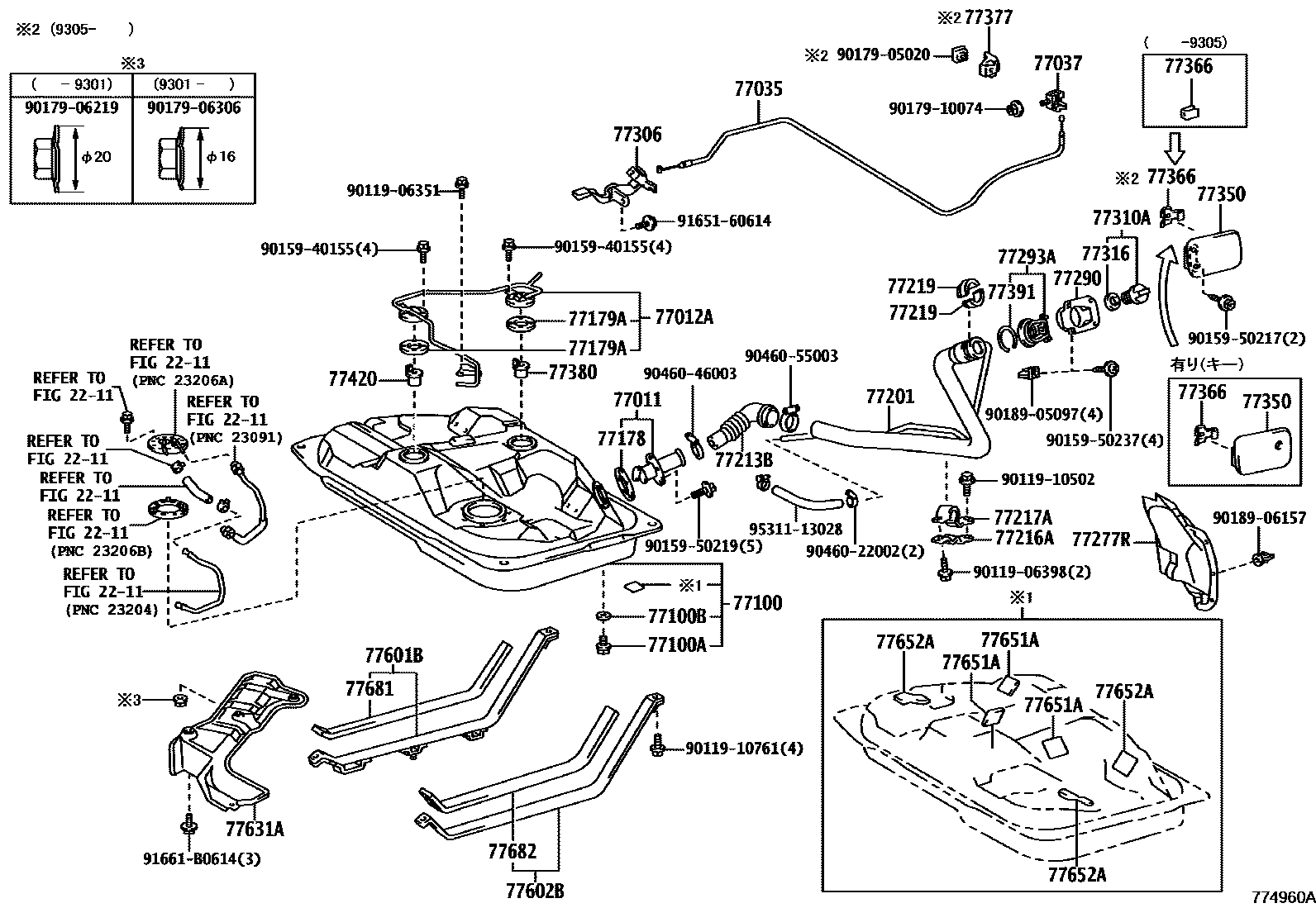

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1

2211

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-10050iCT190,ST19#199211-199601

main77011-12090iCT196,197,ET196199211

main77011-12130iCT198,199,ST198199211

main77011-20100iAT191,CT190,ST191199601-199708

main77011-32040iST195199601-199708

77012TUBE SUB-ASSY, FUEL TANK BREATHER

main77012-32050iST195199211-199708

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-12070iET196199211-199704

sub77012-12080

main77012-12080iET196199211-199704

main77012-12140iET196199704

main77012-13030iCT198,199,ST198199211

main77012-21030iCT196,197199211

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-21020iCT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX199211-199601

main77035-21030iAT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX199601

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-20070iAT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX199211

77100TANK ASSY, FUEL

main77001-19615iCT198,199199211-199908

sub77001-19625

main77001-20740iAT191,CT190,ST191199601-199708

main77001-21070iCT199,ST198199908

main77001-21901iCT196,ET196199211-199601

sub77001-21902

main77001-21902iCT196,197,ET196199601

main77001-29295iCT190,ST190,191199211-199409

sub77001-29296

main77001-29295iST190,191199305-199307

sub77001-29296

main77001-29296iCT190,ST190,191199409-199601

main77001-32909iST195199211-199406

sub77001-32910

sub90269-03067

main77001-32910iST195199406-199502

sub77001-32911

main77001-32911iST195199502-199505

sub77001-32912

main77001-32912iST195199505-199708

77100APLUG(FOR FUEL TANK)

main90105-12116iCT190,ST190,191199301-199307

main90341-20004iCT19#,ET196,ST190,191199211-199308

77100BGASKET(FOR FUEL TANK)

main90430-12245iCT190,ST190,191199301-199307

main90430-20007iCT198199211-199307

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iAT191,CT19#,ET196,ST19#199211

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-26010iCT196,197,198,199,ET196,ST198199211

sub77179-26011

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-20390iAT191,CT190,ST19#199211-199708

main77201-21050iCT196,197,ET196199211

main77201-21070iCT198,199,ST198199211

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-13070iCT196,197,ET196199211

main77213-13080iCT198,199,ST198199211

main77213-18010iCT190,ST190,191199211-199601

main77213-20150iAT191,CT190,ST191199601-199708

main77213-32030iST195199211-199601

main77213-32060iST195199601-199708

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77104-20020iST195199211-199708

main77216-13030iCT196,197,ET196199211

main77216-13050iCT198,199,ST198199211

main77216-20100iCT190,ST190,191199211-199402

main77216-20170iAT191,CT190,ST190,191199402-199708

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-13010iCT196,197,ET196199211

main77217-13030iCT198,199,ST198199211

main77217-20050iAT191,CT190,ST190,191199402-199708

main77217-32030iCT190,ST190,191199211-199402

main77217-32040iST195199211-199708

77219COVER, FUEL TANK FILLER PIPE

main77219-32030iCT19#,ET196,ST19#199211-199601

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-20210iCT190,ST19#199211-199708

main77277-21010iCT196,197,198,199,ET196,ST198199211

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-20140iCT196,198,ET196..UL,UX199211-199306

main77290-21010iCT196,197,198,199,ET196,ST198..U199211

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-20090iAT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX199211-199306

main77293-21040iCT196,197,198,199,ET196,ST198..U199211

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-14010iCT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX199211-199601

main77306-21010iAT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX199601

77310ACAP ASSY, FUEL TANK

main77310-12150iCT19#199803

main77310-16011iAT191,ET196,ST19#199211-199803

sub77310-12140

main77310-32011iCT19#199211-199803

main77310-48010iET196,ST198199803

77316GASKET, FUEL TANK CAP

main77316-16010iAT191,CT19#,ET196,ST19#199211

77350LID ASSY, FUEL FILLER OPENING

main77350-20210iCT19#,ET196,ST19#..CZ,FZ,TZ,UL,UX199211-199305

sub77350-21020

sub77360-20030

sub77377-20060

sub90179-05020

main77350-21010iCT196,197,198,199,ET196,ST198..U199211

main77350-21020iAT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX199305-199805

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-20030iCT196,198,ET196..U199211-199305

main77366-12030iCT19#,ET196,ST19#..CZ,FZ,TZ,UL,UX199211-199305

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20060iAT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX199305

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iCT196,197,198,199,ET196,ST195,198199211

77391RING, FUEL INLET BOX

main77391-20020iCT196,198,ET196199211-199306

77420VALVE ASSY, FUEL CUT OFF, NO.2

main77420-26010iST195199211-199708

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-20090iCT190,ST190,191199211-199601

sub77601-20220

sub90269-03067

main77601-20120iST195199211-199708

main77601-20220iAT191,CT190,ST191199601-199708

main77601-21010iCT196,197,ET196199211

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-20140iAT191,CT190,ST190,191199211-199708

main77602-20150iST195199211-199708

main77602-21010iCT196,197,ET196199211

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77606-32030iST195199211-199404

sub77606-32031

main77606-32031iST195199404-199708

main77631-20070iCT190,ST190,191199211-199601

sub77631-20090

main77631-20090iAT191,CT190,ST191199601-199708

main77631-21010iCT196,197,ET196199211

77651ACUSHION, FUEL TANK, NO.1

main77651-13040iCT198,199,ST198199211

main77651-20090iCT196,197,ET196199211

main77651-21020iCT190,ST190,191199211-199309

main77651-32050iST195199211-199708

main77651-32050iCT190,ST190,191199211-199601

60 X 60

77652CUSHION, FUEL TANK, NO.1

main77651-20090iAT191,CT190,ST191199211-199708

77652ACUSHION, FUEL TANK, NO.2

main77652-12100iCT196,197,ET196199307

main77652-13010iCT198,199,ST198199211

77681SEAT, FUEL TANK BAND, RH

main77681-12010iCT196,197,ET196199211

main77681-32040iCT190,ST19#199211-199502

sub77681-32060

main77681-32060iAT191,CT190,ST19#199411-199708

main77681-32070iCT190,ST190,191199305-199411

sub77681-32060

77682SEAT, FUEL TANK BAND, LH

main77681-32040iCT190,ST190,191199211-199411

sub77681-32060

main77681-32060iCT196,ET196,ST195199211-199411

9011906351

main90119-06351

9011906398

main90119-06398

9011910502

main90119-10502

9011910761

main90119-10761

9015940155

main90159-40155

9015950217

main90159-50217

9015950219

main90159-50219

9015950237

main90159-50237

9017905020

main90179-05020

9017906219

main90179-06219

9017906306

main90179-06306

9017910074

main90179-10074

9018905097

main90189-05097

9018906157

main90189-06157

9046022002

main90460-22002

9046046003

main90460-46003

9046055003

main90460-55003

9165160614

main91651-60614

91661B0614

main91661-B0614

9531113028

main95311-13028

56 parts on this diagram · 17 diagrams in section
