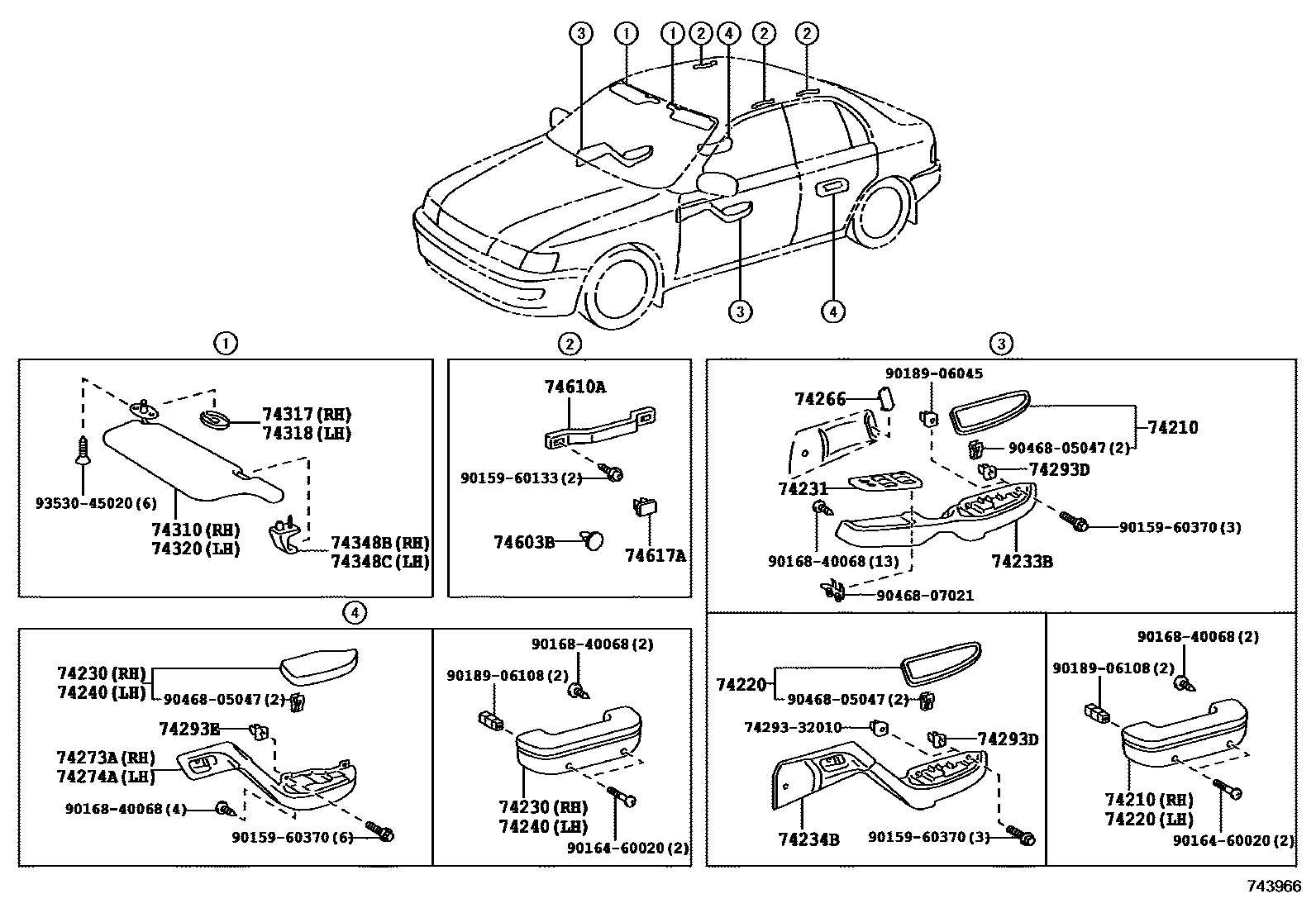

ARMREST & VISOR

0001 1 0002 1 0003 1

74210ARMREST ASSY, FRONT, RH

main74210-20190-B0iAT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX199601

SHADOW GRAY,TRIM1#

main74210-20220-B0iCT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX199402-199601

SHADOW GRAY,TRIM1#

main74210-20220-C0iCT190,196,ET196,ST19#..CZ,FZ,TZ,UX199211-199402

BLACK,TRIM2#

main74210-21030-B0iCT19#,ET196..U,UL; ST198..U,UL199908

main74250-95500-C0iCT196,198,ET196..U,UL199211-199402

BLACK,TRIM2#

main74250-95500-P0iCT196,197,198,199,ET196..U,UL199402

74220ARMREST ASSY, FRONT, LH

main74220-20190-B0iAT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX199601

SHADOW GRAY,TRIM1#

main74220-20220-B0iCT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX199402-199601

SHADOW GRAY,TRIM1#

main74220-20220-C0iCT190,196,ET196,ST19#..CZ,FZ,TZ,UX199211-199402

BLACK,TRIM2#

main74220-21030-B0iCT19#,ET196..U,UL; ST198..U,UL199908

main74250-95500-C0iCT196,198,ET196..U,UL199211-199402

BLACK,TRIM2#

main74250-95500-P0iCT196,197,198,199,ET196..U,UL199402

74230ARMREST ASSY, REAR, RH

main74210-20190-B0iAT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX199601

SHADOW GRAY,TRIM1#

main74250-20130-B0iCT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX199402-199601

SHADOW GRAY,TRIM1#

main74250-20130-C0iCT190,196,ET196,ST19#..CZ,FZ,TZ,UX199211-199402

BLACK,TRIM2#

main74250-95500-C0iCT196,198,ET196..U,UL199211-199402

BLACK,TRIM2#

main74250-95500-P0iCT196,197,198,199,ET196,ST198..U,UL199402

SHADOW GRAY,TRIM1#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-20270-C0iCT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX199402-199601

BLACK,TRIM1#

main74231-20280-B0iAT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX199601

SHADOW GRAY,TRIM1#

main74231-20320iST19#..TZ; ST195..TZG199610-199708

74233BPANEL, FRONT DOOR ARMREST BASE, LOWER RH

main74233-20130-B0iCT190,196,ET196,ST19#..CZ,FZ,TZ,UX199402-199502

SHADOW GRAY,TRIM1#

main74233-20130-C0iCT190,196,ET196,ST19#..CZ,FZ,TZ,UX199211-199402

BLACK,TRIM2#

74234BPANEL, FRONT DOOR ARMREST BASE, LOWER LH

main74234-20130-B0iCT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX199502-199601

SHADOW GRAY,TRIM1#

main74234-20130-C0iCT190,196,ET196,ST19#..CZ,FZ,TZ,UX199211-199402

BLACK,TRIM2#

74240ARMREST ASSY, REAR, LH

main73230-20573-C0iCT190,ST190,191..CZ,TZ199411-199601

BLACK,TRIM1#

main74220-20190-B0iAT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX199601

SHADOW GRAY,TRIM1#

main74250-95500-C0iCT196,198,ET196..U,UL199211-199402

BLACK,TRIM2#

main74250-95500-P0iCT196,197,198,199,ET196,ST198..U,UL199402

SHADOW GRAY,TRIM1#

main74260-20080-B0iCT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX199402-199601

SHADOW GRAY,TRIM1#

main74260-20080-C0iCT190,196,ET196,ST19#..CZ,FZ,TZ,UX199211-199402

BLACK,TRIM2#

74266CAP, DOOR ARMREST, RH

main74266-20070-B0iCT190,196,ET196,ST19#..CZ,FZ,TZ,UX199402-199502

SHADOW GRAY,TRIM1#

74273APANEL, REAR DOOR ARMREST BASE, LOWER RH

main74273-20060-B0iCT190,196,ET196,ST19#..CZ,FZ,TZ,UX199402-199502

SHADOW GRAY,TRIM1#

main74273-20060-C0iCT190,196,ET196,ST19#..CZ,FZ,TZ,UX199211-199402

BLACK,TRIM2#

74274APANEL, REAR DOOR ARMREST BASE, LOWER LH

main74274-20050-B0iCT190,196,ET196,ST19#..CZ,FZ,TZ,UX199402-199502

SHADOW GRAY,TRIM1#

main74274-20050-C0iCT190,196,ET196,ST19#..CZ,FZ,TZ,UX199211-199402

BLACK,TRIM2#

74293DPLATE, FRONT DOOR ARMREST, NO.1

main74293-32010×4iCT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX199211-199601

74293EPLATE, REAR DOOR ARMREST, NO.1

main74293-32010×6iCT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX199502-199601

74310VISOR ASSY, RH

main74310-21010-B0iCT196,198,ET196199211-199402

GRAY,TRIM2#

main74310-21011-B0iCT196,198,ET196199601-199708

main74310-21012-B0iCT19#,ET196199708-199810

main74310-21012-B1iCT19#,ET196199810-199908

MEDIUM GRAY,TRIM1#

main74310-21013-B1iCT19#,ET196,ST198199908

MEDIUM GRAY,TRIM1#

main74310-21020-B0iAT191,CT190..FZ199601-199708

MEDIUM GRAY,TRIM1#

main74310-21030-B0iAT191,CT190,ST19#..CZ,TZ,TZG199601-199708

MEDIUM GRAY,TRIM1#

main74310-21040-B0iCT190..4FC..CZ;AT191,ST19#..CZ,TZ,TZG199601-199708

main74310-2B240-B1iCT190,ST19#..CZ,TZ199211-199402

main74310-2B270-B1iCT190,ST190..FZ199211-199402

GRAY,TRIM2#

main74310-2B300-B1iCT190,ST19#..CZ,TZ,TZG199402-199601

GRAY,TRIM1#

74317COVER, VISOR BRACKET, RH

main74317-32010-B0iCT19#,ET196,ST19#199211-199402

GRAY,TRIM2#

main74317-32010-B2iCT19#,ET196,ST198199805

BLUE GRAY,TRIM1#

74318COVER, VISOR BRACKET, LH

main74317-32010-B0iCT19#,ET196,ST19#199211-199402

GRAY,TRIM2#

main74317-32010-B2iCT19#,ET196,ST198199805

BLUE GRAY,TRIM1#

74320VISOR ASSY, LH

main74320-21010-B0iCT196,198,ET196199211-199402

GRAY,TRIM2#

main74320-21010-B1iCT19#,ET196,ST198199810

MEDIUM GRAY,TRIM1#

main74320-21020-B0iAT191,CT190..FZ199601-199708

MEDIUM GRAY,TRIM1#

main74320-21030-B0iAT191,CT190,ST19#..CZ,TZ,TZG199601-199708

MEDIUM GRAY,TRIM1#

main74320-21040-B0iCT190..4FC..CZ;AT191,ST19#..CZ,TZ,TZG199601-199708

main74320-21071-B0iCT19#,ET196199708-199810

MEDIUM GRAY,TRIM1#

main74320-21071-B1iCT19#,ET196199810-199908

main74320-21072-B1iCT19#,ET196,ST198199908

main74320-2B080-B1iCT190,ST190..FZ199211-199402

GRAY,TRIM2#

main74320-2B110-B1iCT190,ST19#..CZ,TZ,TZG199402-199601

GRAY,TRIM1#

main74320-2B120-B1iCT190,ST19#..CZ,TZ,TZG199402-199601

74348BHOLDER, VISOR, RH

main74348-20030-B0iCT19#,ET196,ST19#199211-199402

GRAY,TRIM2#

main74348-22020-B0iAT191,CT19#,ET196,ST19#199601-199805

GRAY,TRIM1#

main74348-22020-B7iCT19#,ET196,ST198199805

BLUE GRAY,TRIM1#

74348CHOLDER, VISOR, LH

main74348-20030-B0iCT19#,ET196,ST19#199211-199402

GRAY,TRIM2#

main74348-22020-B0iAT191,CT19#,ET196,ST19#199601-199805

GRAY,TRIM1#

main74348-22020-B7iCT19#,ET196,ST198199805

BLUE GRAY,TRIM1#

74603BCLIP (FOR ASSIST GRIP)

main90467-06048-B0×4iCT196,198,ET196..U,UL199211-199402

GRAY,TRIM2#

main90467-06048-B8×4iCT19#,ET196,ST198..U,UL199805

BLUE GRAY,TRIM1#

74610AGRIP SUB-ASSY, ASSIST

main74610-32020-B1iCT190,ST19#; CT196,198,ET196..U,UL199211-199402

GRAY,TRIM2#

main74610-32020-B4iCT19#,ET196,ST198..U,UL; CT197,ET196,ST198..UX199805

BLUE GRAY,TRIM1#

74617APLUG, ASSIST GRIP

main74617-16010-B4×2iCT190,ST19#; CT196,198,ET196..U,UL199211-199402

GRAY,TRIM2#

main74617-16010-P6×2iCT19#,ET196,ST198..U,UL; CT197,ET196,ST198..UX199805

BLUE GRAY,TRIM1#

7429332010PLATE, FRONT DOOR ARMREST, NO.1

main74293-32010

9015960133

main90159-60133

9015960370

main90159-60370

9016460020

main90164-60020

9016840068

main90168-40068

9018906045

main90189-06045

9018906108

main90189-06108

9046805047

main90468-05047

9046807021

main90468-07021

9353045020

main93530-45020

31 parts on this diagram · 3 diagrams in section
