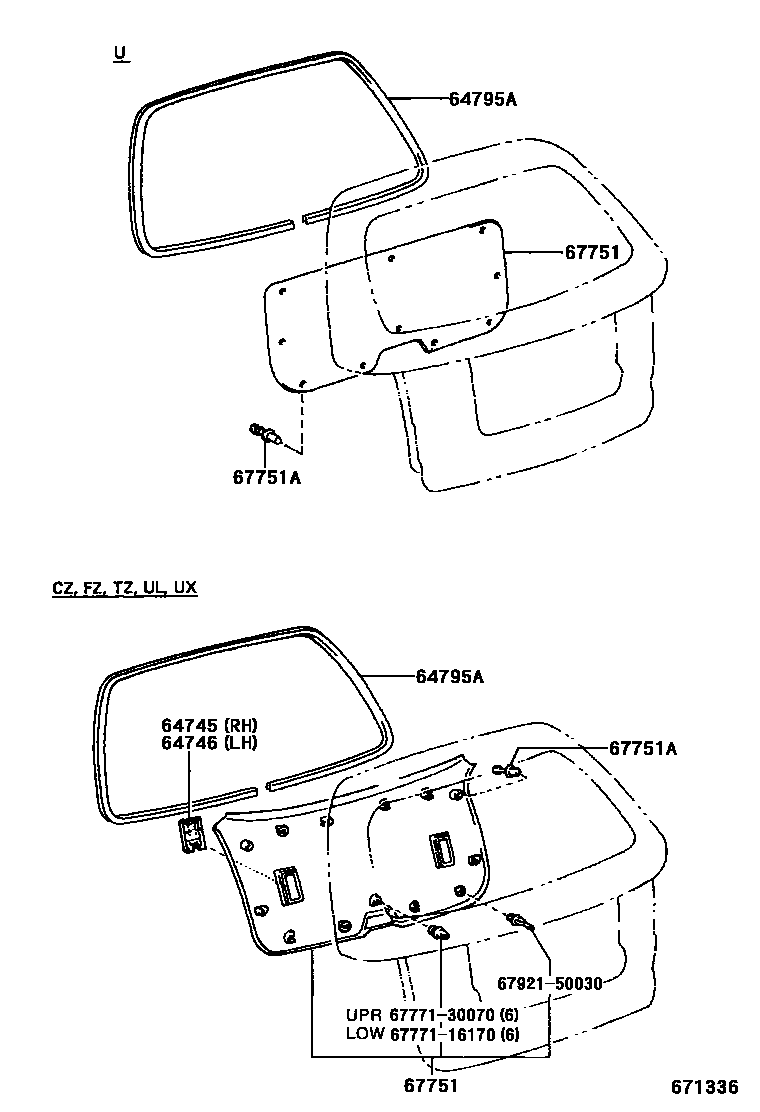

BACK DOOR PANEL & GLASS

0001 1 0002 1

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-21010-B0iAT191,CT19#,ET196,ST19#199402

SHADOW GRAY,TRIM1#

main64745-21010-C0iCT19#,ET196,ST19#199211-199402

BLACK,TRIM2#

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-21010-B0iAT191,CT19#,ET196,ST19#199402

SHADOW GRAY,TRIM1#

main64746-21010-C0iCT19#,ET196,ST19#199211-199402

BLACK,TRIM2#

64795ATRIM, BACK WINDOW OPENING

main64795-21010iAT191,CT19#,ET196,ST19#199211

main64795-21020iCT196,197,198,199,ET196,ST198..U199211

67751BOARD, BACK DOOR TRIM

main67750-21010-B0iAT191,CT19#,ET196,ST19#199402

main67750-21010-C0iCT19#,ET196,ST19#199211-199402

main67751-21050-B0iCT196,197,198,199,ET196,ST198..U199402

SHADOW GRAY,TRIM1#

main67751-21050-C0iCT196,198,ET196..U199211-199402

BLACK,TRIM2#

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main67771-36030-B0×12iCT196,197,198,199,ET196,ST198..U199402

SHADOW GRAY,TRIM1#

main67771-36030-C0×12iCT196,198,ET196..U199301-199402

BLACK,TRIM2#

main90467-08182-C0×12iCT196,198,ET196..U199211-199301

BLACK,TRIM2#

main90467-10170-B0×2iAT191,CT19#,ET196,ST19#199402

main90467-10170-C0×2iCT19#,ET196,ST19#199211-199402

6777116170WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-16170

6777130070WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30070

6792150030RETAINER, FRONT DOOR SCUFF PLATE

main67921-50030

8 parts on this diagram · 2 diagrams in section
