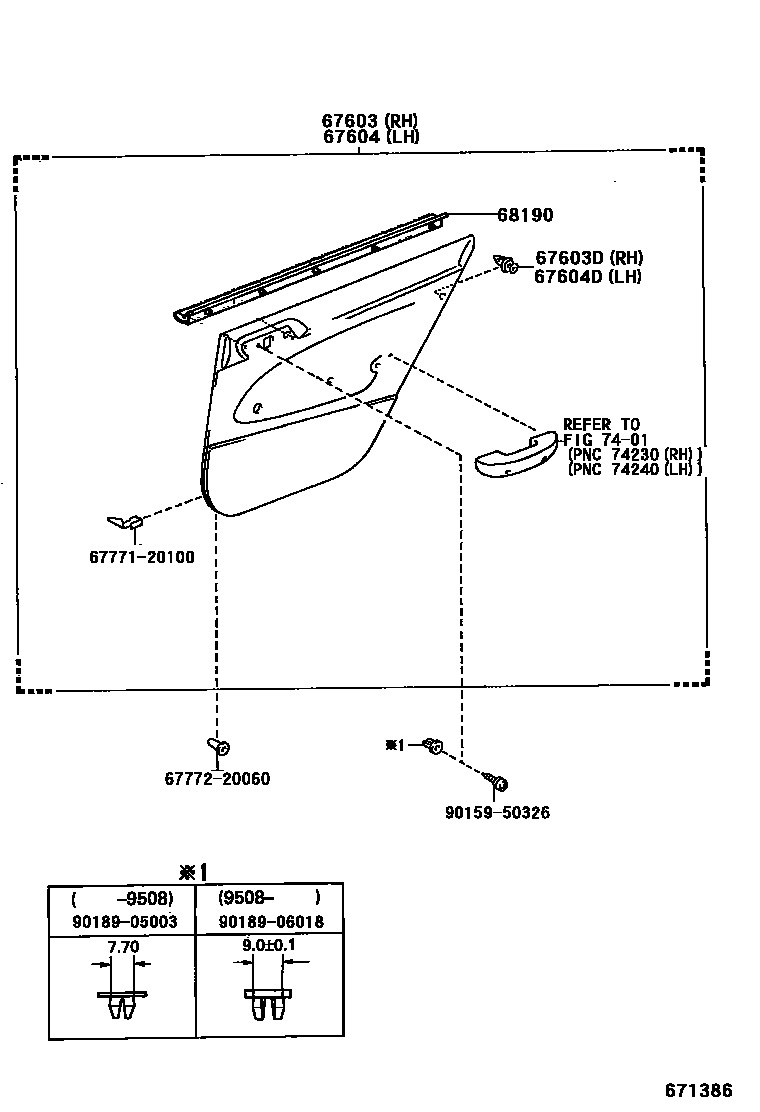

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-21010-C1iCT190,ST19#..CZ,TZ199211-199309

BLACK,TRIM2#

main67630-21020-B0iCT196,198,ET196..U199402-199601

SHADOW GRAY,TRIM1#

main67630-21020-B1iCT196,197,198,199,ET196..U199601-199908

SHADOW GRAY,TRIM1#

main67630-21020-C1iCT196,198,ET196..U199211-199402

BLACK,TRIM2#

main67630-21030-B0iCT196,198,ET196..UL199402-199601

SHADOW GRAY,TRIM1#

main67630-21030-B1iCT196,197,198,199,ET196..UL199601-199908

SHADOW GRAY,TRIM1#

main67630-21030-C1iCT196,198,ET196..UL199211-199402

BLACK,TRIM2#

main67630-21040-C0iCT190,196,ET196,ST190..FZ,UX199211-199309

BLACK,TRIM2#

main67630-21050-C0iCT190,ST190..FZ199211-199309

main67630-21060-B0iCT190,ST19#..CZ,TZ199402-199501

SHADOW GRAY,TRIM1#

main67630-21060-B1iCT190,ST19#..CZ,TZ199501-199601

SHADOW GRAY,TRIM1#

main67630-21060-C0iCT190,ST19#..CZ,TZ199309-199402

BLACK,TRIM2#

main67630-21061-B2iST195..TZG199502-199601

SHADOW GRAY,TRIM1#

main67630-21070-B0iCT190,ST190..FZ199402-199501

SHADOW GRAY,TRIM1#

main67630-21070-C1iCT190,196,ET196,ST190..FZ,UX199309-199402

BLACK,TRIM2#

main67630-21071-B2iCT190,ST190..FZ199501-199601

SHADOW GRAY,TRIM1#

main67630-21080-B0iCT190,ST190..FZ199402-199501

main67630-21080-C0iCT190,ST190..FZ199309-199402

main67630-21081-B1iCT190,ST190..FZ199501-199601

main67630-21090-B0iCT196,ET196..UX199402-199501

SHADOW GRAY,TRIM1#

main67630-21091-B1iCT196,ET196..UX199501-199601

SHADOW GRAY,TRIM1#

main67630-21100-B0iAT191,CT190,196,197,ET196,ST198..FZ,UX199601

SHADOW GRAY,TRIM1#

main67630-21110-B0iAT191,CT190,ST19#..CZ,TZ199601-199708

SHADOW GRAY,TRIM1#

main67630-21120-B0iST195..TZG199601-199708

SHADOW GRAY,TRIM1#

main67630-21130-B0iST191,195..TZ199508-199601

main67630-21140-B0iST19#199601-199708

main67630-21150-B0iAT191..FZ199610-199708

main67630-21180-B0iCT19#,ET196,ST198..U,UL199908

SHADOW GRAY,TRIM1#

67603DRETAINER, REAR DOOR TRIM, RH

main67771-20110×7iCT196,198,ET196..U,UL199601-199710

main67771-28030×7iAT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX199601

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-21010-C1iCT190,ST19#..CZ,TZ199211-199309

BLACK,TRIM2#

main67640-21020-B0iCT196,198,ET196..U199402-199601

SHADOW GRAY,TRIM1#

main67640-21020-B1iCT196,197,198,199,ET196..U199601-199908

SHADOW GRAY,TRIM1#

main67640-21020-C1iCT196,198,ET196..U199211-199402

BLACK,TRIM2#

main67640-21030-B0iCT196,198,ET196..UL199402-199601

SHADOW GRAY,TRIM1#

main67640-21030-B1iCT196,197,198,199,ET196..UL199601-199908

SHADOW GRAY,TRIM1#

main67640-21030-C1iCT196,198,ET196..UL199211-199402

BLACK,TRIM2#

main67640-21040-C0iCT190,196,ET196,ST190..FZ,UX199211-199309

BLACK,TRIM2#

main67640-21050-C0iCT190,ST190..FZ199211-199309

main67640-21060-B0iCT190,ST19#..CZ,TZ199402-199501

SHADOW GRAY,TRIM1#

main67640-21060-B1iCT190,ST19#..CZ,TZ199501-199601

SHADOW GRAY,TRIM1#

main67640-21060-C0iCT190,ST19#..CZ,TZ199309-199402

BLACK,TRIM2#

main67640-21061-B2iST195..TZG199502-199601

SHADOW GRAY,TRIM1#

main67640-21070-B0iCT190,ST190..FZ199402-199501

SHADOW GRAY,TRIM1#

main67640-21070-C1iCT190,196,ET196,ST190..FZ,UX199309-199402

BLACK,TRIM2#

main67640-21071-B2iCT190,ST190..FZ199501-199601

SHADOW GRAY,TRIM1#

main67640-21080-B0iCT190,ST190..FZ199402-199501

main67640-21080-C0iCT190,ST190..FZ199309-199402

main67640-21081-B1iCT190,ST190..FZ199501-199601

main67640-21090-B0iCT196,ET196..UX199402-199501

SHADOW GRAY,TRIM1#

main67640-21091-B1iCT196,ET196..UX199501-199601

SHADOW GRAY,TRIM1#

main67640-21100-B0iAT191,CT190,196,197,ET196,ST198..FZ,UX199601

SHADOW GRAY,TRIM1#

main67640-21110-B0iAT191,CT190,ST19#..CZ,TZ199601-199708

SHADOW GRAY,TRIM1#

main67640-21120-B0iST195..TZG199601-199708

SHADOW GRAY,TRIM1#

main67640-21130-B0iST191,195..TZ199508-199601

main67640-21140-B0iST19#199601-199708

main67640-21150-B0iAT191..FZ199610-199708

main67640-21180-B0iCT19#,ET196,ST198..U,UL199908

SHADOW GRAY,TRIM1#

67604DRETAINER, REAR DOOR TRIM, LH

main67771-20110×7iCT19#,ET196,ST19#199211-199601

main67771-28030×7iAT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX199601

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68173-20070iAT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX199211

main68173-21020iCT196,197,198,199,ET196,ST198..U,UL199211

main68174-20020iAT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX199211

main68174-21010iCT196,197,198,199,ET196,ST198..U,UL199211

7401ARMREST & VISOR

→ Go to FIG 74-01

6777120100WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20100

6777220060WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20060

9015950326

main90159-50326

9018905003

main90189-05003

9018906018

main90189-06018

11 parts on this diagram · 4 diagrams in section
