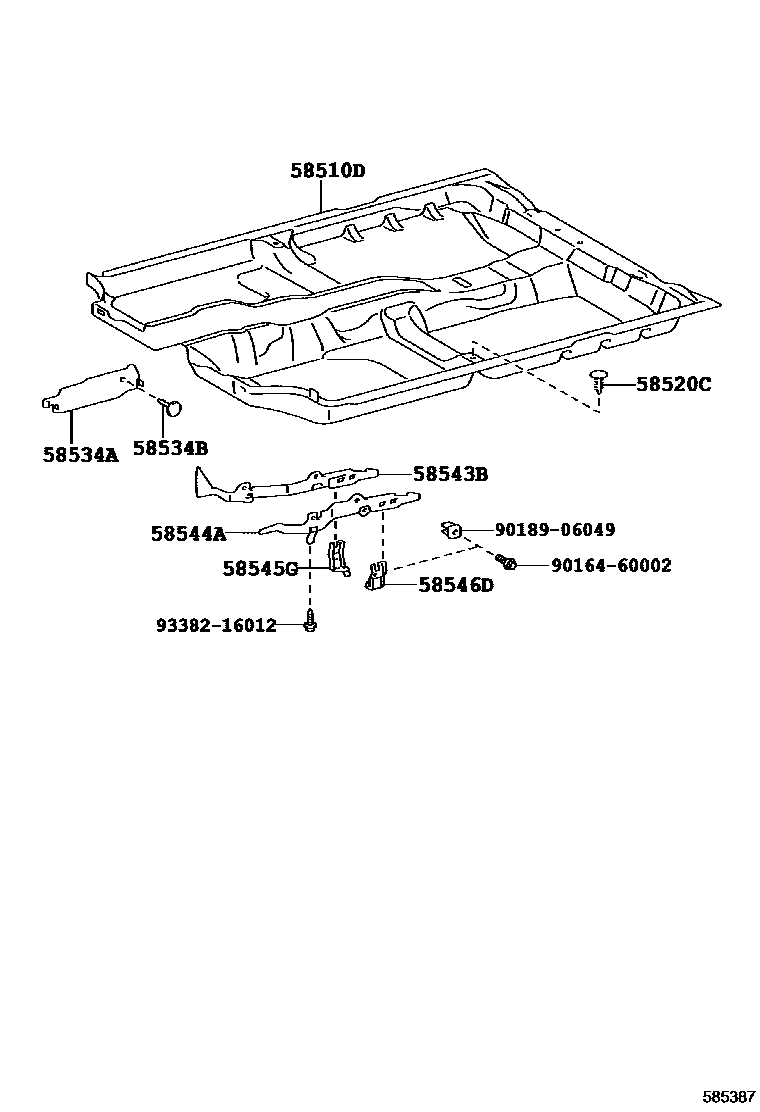

MAT & CARPET

0001 1 0002 1 0003 1

58510DCARPET ASSY, FLOOR, FRONT

main58510-21150-B0iCT196,198,ET196..U199402-199601

SHADOW GRAY,TRIM1#

main58510-21150-C0iCT196,198,ET196..U199211-199402

BLACK,TRIM2#

main58510-21160-B0iCT196,198,ET196..U199402-199601

main58510-21160-C0iCT196,198,ET196..U199211-199402

main58510-21170-B0iCT196,198,ET196..UL,UX199402-199601

SHADOW GRAY,TRIM1#

main58510-21170-C0iCT196,198,ET196..UL,UX199211-199402

BLACK,TRIM2#

main58510-21180-B0iCT196,198,ET196..UL,UX199402-199601

main58510-21180-C0iCT196,198,ET196..UL,UX199211-199402

main58510-21190-C0iST190..4FC..FZ;CT190,ST191,195199211-199212

main58510-21230-C1iCT190,ST19#199211-199302

BLACK,TRIM2#

main58510-21270-B0iCT190,ST19#199402-199501

main58510-21271-B0iCT190,ST19#199501-199601

main58510-21280-B0iCT190,ST19#199402-199501

SHADOW GRAY,TRIM1#

main58510-21280-C0iCT190,ST19#199302-199402

BLACK,TRIM2#

main58510-21281-B0iCT190,ST19#199501-199601

SHADOW GRAY,TRIM1#

main58510-21290-C0iCT190,ST19#199302-199402

main58510-21310-B1iAT191,CT190,ST19#199601-199708

SHADOW GRAY,TRIM1#

main58510-21320-B1iAT191,CT190,ST19#199601-199708

main58510-21330-B1iCT196,197,198,199,ET196..UL,UX199601-199908

SHADOW GRAY,TRIM1#

main58510-21340-B1iCT196,197,198,199,ET196..UL,UX199601-199908

main58510-21350-B1iCT196,197,198,199,ET196..U199601-199908

SHADOW GRAY,TRIM1#

main58510-21360-B1iCT196,197,198,199,ET196..U199601-199908

main58510-21390-B1iCT19#,ET196,ST198..UL,UX199908

SHADOW GRAY,TRIM1#

main58510-21400-B1iCT19#,ET196,ST198..UL,UX199908

main58510-21410-B1iCT19#,ET196,ST198..U199908

SHADOW GRAY,TRIM1#

main58510-21420-B1iCT19#,ET196,ST198..U199908

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-C0×2iCT196,198,ET196199211-199402

BLACK,TRIM2#

main90467-06016-P0×2iCT196,198,ET196199402-199601

GRAY,TRIM1#

58534AMAT, TRANSMISSION COVER

main58534-20010iCT19#,ET196,ST19#199501-199601

main58534-20020-B0iAT191,CT19#,ET196,ST19#199601

SHADOW GRAY,TRIM1#

58534BCLIP(FOR FLOOR CARPET CENTER COVER)

main90467-07042-B1iCT196,198,ET196199402-199601

SHADOW GRAY,TRIM1#

main90467-07042-C0iCT196,198,ET196..U,UL199211-199402

BLACK,TRIM2#

58543BBRACKET, FLOOR CARPET, RH

main58543-20030iCT19#,ET196,ST19#199211-199502

PLANT.NO.A41

main58543-20050iCT19#,ET196,ST19#199211-199502

PLANT.NO.C21-24

58544ABRACKET, FLOOR CARPET, LH

main58544-20030iCT19#,ET196,ST19#199502-199601

PLANT.NO.A41

main58544-20050iCT19#,ET196,ST19#199502-199601

PLANT.NO.C21-24

58545GBRACKET, FLOOR CARPET, NO.2 RH

main58545-20010iCT19#,ET196,ST19#199211-199601

main58545-20030×2iAT191,CT19#,ET196,ST19#199601

58546DBRACKET, FLOOR CARPET, NO.2 LH

main58544-20060iAT191,CT19#,ET196,ST19#199601

main58546-20010iCT19#,ET196,ST19#199211-199601

9016460002

main90164-60002

9018906049

main90189-06049

9338216012

main93382-16012

11 parts on this diagram · 3 diagrams in section
