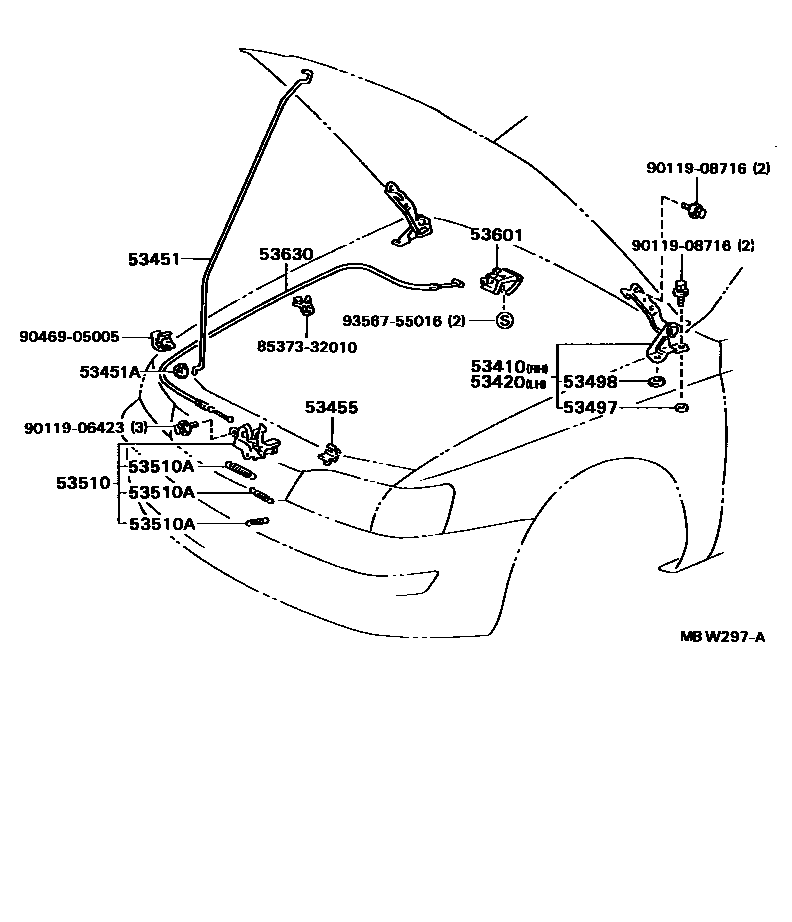

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-20180iAT191,CT19#,ET196,ST19#199211

53420HINGE ASSY, HOOD, LH

main53420-20170iAT191,CT19#,ET196,ST19#199211

53451ROD, HOOD SUPPORT

main53451-20120iET196,ST19#199211-199305

main53451-20130iCT19#199211-199601

main53451-20140iET196,ST19#199305-199601

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15024iAT191,CT19#,ET196,ST19#199211

53455CLAMP, HOOD SUPPORT ROD

main53455-20040iAT191,CT19#,ET196,ST19#199211

53497PAD, HOOD HINGE, NO.1

main53497-12050×2iCT19#,ET196,ST19#199211-199601

main53497-20070×2iCT19#,ET196,ST19#199211-199601

53498PAD, HOOD HINGE, NO.2

main53497-12050iAT191,CT19#,ET196,ST19#199601

main53497-20070iAT191,CT19#,ET196,ST19#199601

main53498-17010×2iCT19#,ET196,ST19#199211-199305

main53498-50010×2iCT19#,ET196,ST19#199211-199305

53510LOCK ASSY, HOOD

main53510-20400iAT191,CT19#,ET196,ST19#199211

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09057iAT191,CT19#,ET196,ST19#199211

main90506-12067iAT191,CT19#,ET196,ST19#199211

main90506-20065iAT191,CT19#,ET196,ST19#199211

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-16020-22iAT191,CT19#,ET196,ST19#199402

BLACK,TRIM1#

main53601-20081-C0iCT19#,ET196,ST19#199211-199305

BLACK,TRIM2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-20411iCT19#,ET196,ST19#199211-199601

main53630-20570iAT191,CT19#,ET196,ST19#199601

8537332010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-32010

9011906423

main90119-06423

9011908716

main90119-08716

9046905005

main90469-05005

9356755016

main93567-55016

16 parts on this diagram · 1 diagram in section
