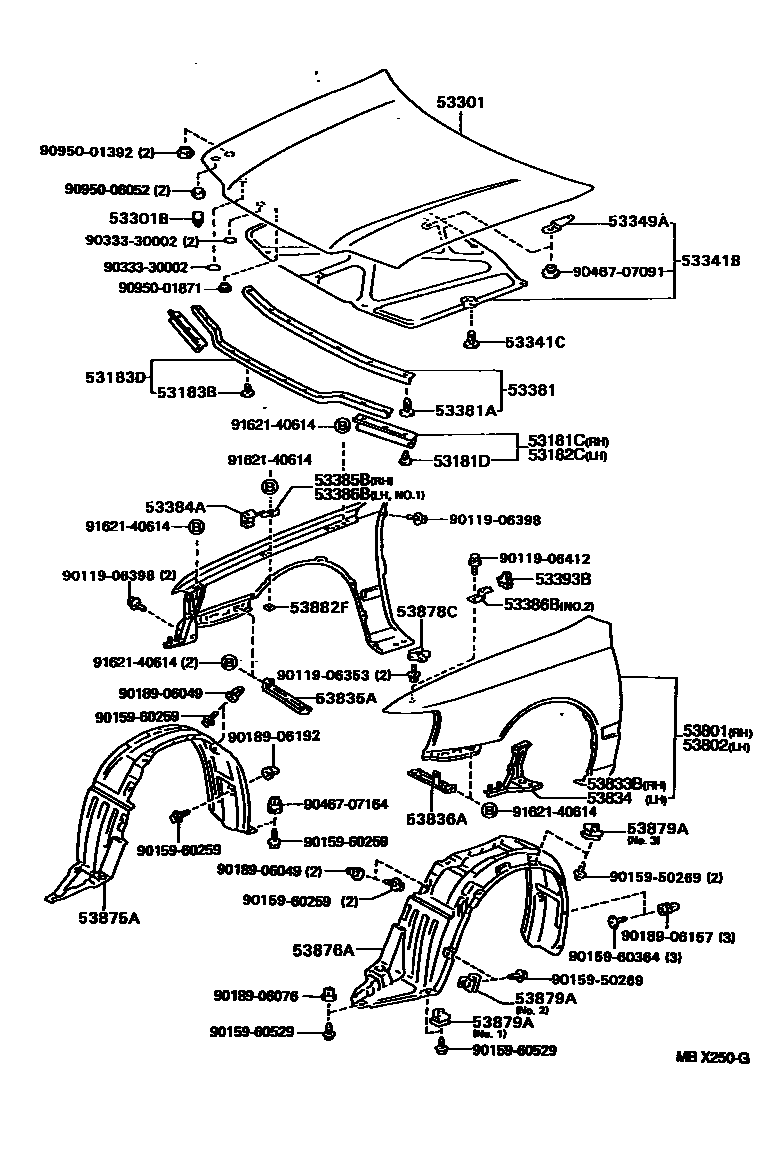

HOOD & FRONT FENDER
53181CCOVER, HEADLAMP, RH
53181DCLIP, HEADLAMP COVER
53182CCOVER, HEADLAMP, LH
53183BCLIP(FOR HEADLAMP COVER SEAL)
53183DSEAL, HEADLAMP COVER TO HOOD
53301HOOD SUB-ASSY
53301BCUSHION, HOOD BUMPER
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53349ARETAINER, HOOD INSULATOR
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384ABUMPER, FENDER TO HOOD
53385BBRACKET, FENDER TO HOOD BUMPER, RH
53386BBRACKET, FENDER TO HOOD BUMPER, LH
53393BPROTECTOR, HOOD, FRONT
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53833BPANEL, FRONT FENDER SIDE, RH
53834PANEL, FRONT FENDER SIDE, LOWER LH
53835ABRACE, FRONT FENDER TO APRON, RH
53836ABRACE, FRONT FENDER TO APRON, LH
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53878CSPACER, FRONT FENDER
53879ARETAINER, FRONT FENDER LINER
53882FSEAL, FRONT FENDER
9011906353
main90119-06353
9011906398
main90119-06398
9011906412
main90119-06412
9015950269
main90159-50269
9015960259
main90159-60259
9015960364
main90159-60364
9015960529
main90159-60529
9018906049
main90189-06049
9018906076
main90189-06076
9018906157
main90189-06157
9018906192
main90189-06192
9033330002
main90333-30002
9046707091
main90467-07091
9046707164
main90467-07164
9095001392
main90950-01392
9095001871
main90950-01871
9095006052
main90950-06052
9162140614
main91621-40614
45 parts on this diagram · 1 diagram in section
