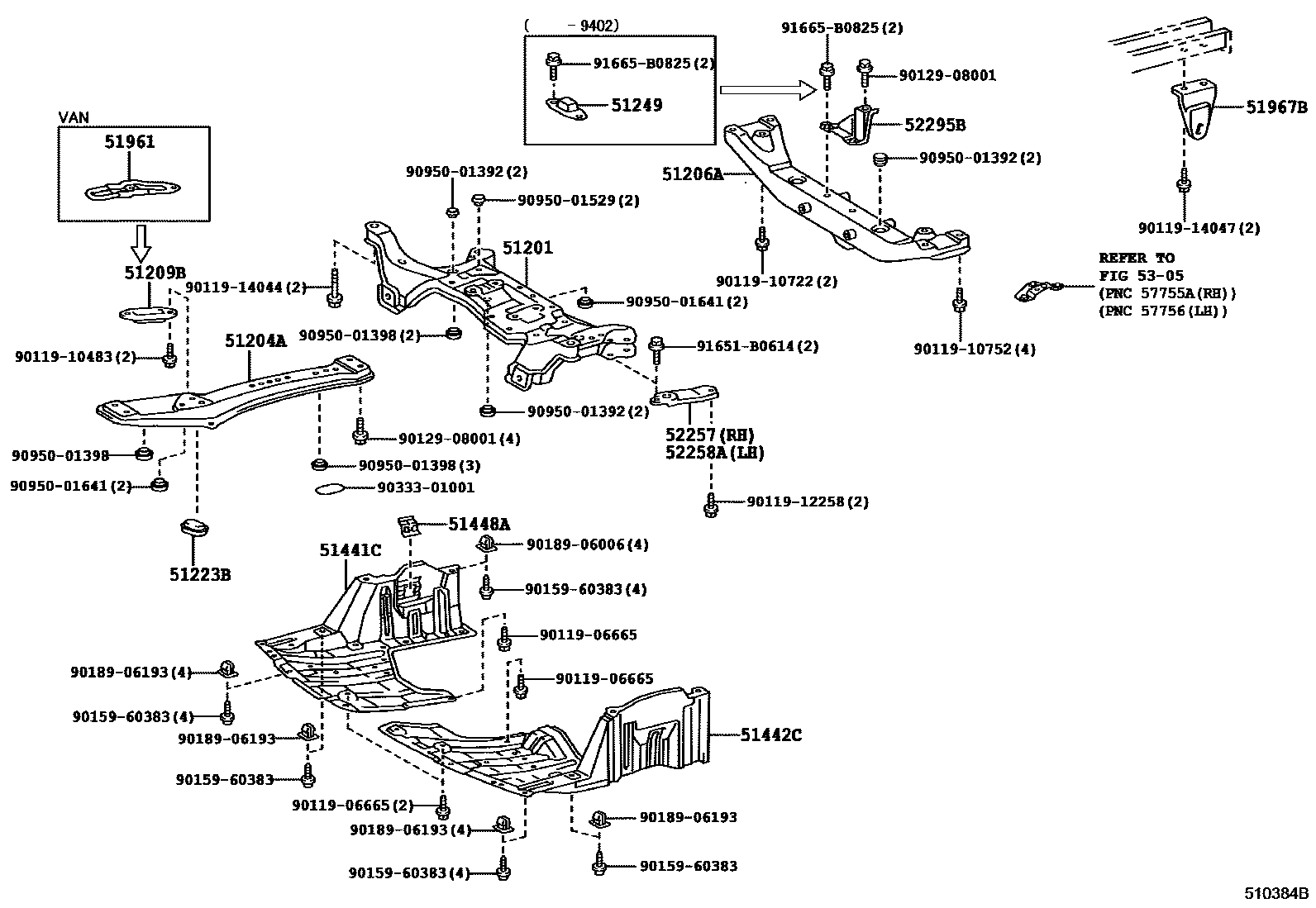

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-20251iCT190,196,ET196,ST190,191199211-199402

main51201-20252iCT190,196,ET196,ST190,191199402-199601

main51201-20290iCT198,199,ST195,198199211

main51201-20320iAT191,CT190,196,197,ET196,ST191199601

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-20110iAT191,CT190,196,ET196,ST190,191199211-199805

main51204-20111iCT197,ET196199805

main51204-20120iCT198,ST195199211-199502

main51204-20121iCT198,199,ST195,198199502

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-20050iCT190,ST190,191199211-199601

main51206-20060iST195199211-199502

main51206-20080iAT191,CT190,ST191199601-199708

51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT

main51209-12010iCT190,ST191,195;CT196,ET196,ST190..ATM199502-199601

51223BCOVER, ENGINE MOUNTING HOLE

main51223-20050iAT191,CT19#,ET196,ST19#199211

51249DAMPER, REAR SUSPENSION MEMBER

main51249-20020iCT190,ST190,191199211-199402

51441CCOVER, ENGINE UNDER, RH

main51441-20250iST195..TZG199502-199512

main51441-20251iST195..TZG199512-199708

main51441-20310iCT190,196,ET196,ST19#199211-199312

main51441-20311iCT190,196,ET196,ST19#199312-199405

main51441-20312iCT190,196,ET196,ST19#..CZ,FZ,TZ,U,UL,UX199405-199512

main51441-20313iAT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,U,UL,UX199512

main51441-20350iCT198199211-199312

main51441-20351iCT198199312-199405

main51441-20352iCT198199405-199512

main51441-20353iCT198,199199512

51442CCOVER, ENGINE UNDER, LH

main51442-20370iCT190,196,ET196,ST190,195..5F199211-199512

main51442-20371iAT191,CT190,196,197,ET196,ST190,195..5F199512

main51442-20380iCT190,196,ET196,ST190,191..ATM199211-199512

main51442-20381iAT191,CT190,196,197,ET196,ST190,191..ATM199512

main51442-20390iST195..4FC199211-199512

main51442-20391iST195,198..4FC199512

main51442-20430iCT198199211-199512

main51442-20431iCT198,199199512

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20030iAT191,CT19#,ET196,ST19#199211

51961HOOK, NO.1

main51960-21010iCT196,198,ET196199211-199501

main51963-20130iAT191,CT19#,ET196,ST19#199601

51967BHOOK, TRANSPORT, REAR RH

main51967-20160iCT190,ST19#199211-199405

main51967-20170iCT190,ST19#199502-199601

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-20010iAT191,CT190,196,197,ET196,ST190,191199211

main52257-20020iCT198,199,ST195,198199211

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-20010iAT191,CT190,196,197,ET196,ST190,191199211

main52258-20020iCT198,199,ST195,198199211

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-32010iST195199211-199502

52295BBRACE, REAR SUSPENSION MEMBER, RH

main52295-20020iCT190,ST190,191199402-199601

main52295-20030iAT191,CT190,ST191199601-199708

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

9011906665

main90119-06665

9011910483

main90119-10483

9011910722

main90119-10722

9011910752

main90119-10752

9011912258

main90119-12258

9011914044

main90119-14044

9011914047

main90119-14047

9012908001

main90129-08001

9015960383

main90159-60383

9018906006

main90189-06006

9018906193

main90189-06193

9033301001

main90333-01001

9095001392

main90950-01392

9095001398

main90950-01398

9095001529

main90950-01529

9095001641

main90950-01641

91651B0614

main91651-B0614

91665B0825

main91665-B0825

34 parts on this diagram · 2 diagrams in section
