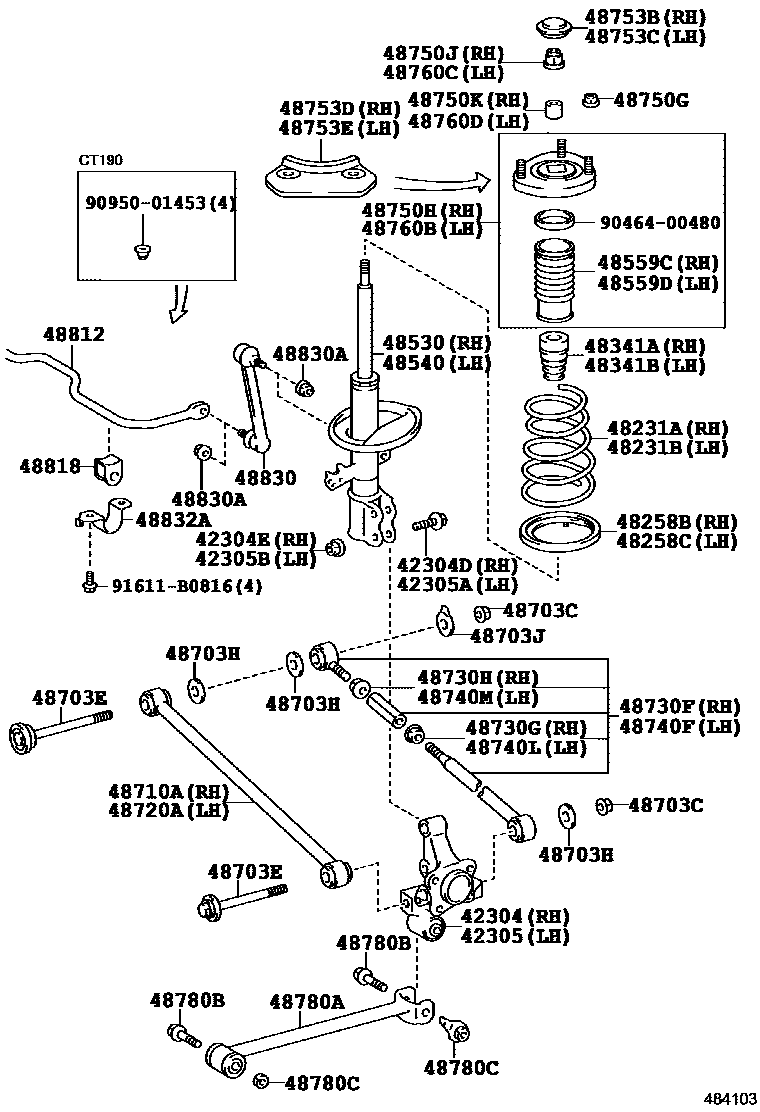

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-20140iCT190,ST190199211-199601

main42304-20150iST191199211-199601

main42304-20160iCT190,ST190199211-199601

main42304-20170iST191199211-199601

main42304-20200iST195199211-199601

main42304-20210iST195199211-199601

main42304-20300iAT191,CT190,ST191199601-199708

42304DBOLT (FOR REAR AXLE CARRIER RH)

main90105-15001×2iCT190,ST19#199211-199502

42304ENUT (FOR REAR AXLE CARRIER RH)

main90179-15001×2iCT190,ST19#199211-199502

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-20140iCT190,ST190199211-199601

main42305-20150iST191199211-199601

main42305-20160iCT190,ST190199211-199601

main42305-20170iST191199211-199601

main42305-20200iST195199211-199601

main42305-20210iST195199211-199601

main42305-20300iAT191,CT190,ST191199601-199708

42305ABOLT (FOR REAR AXLE CARRIER LH)

main90105-15001×2iCT190,ST19#199211-199502

42305BNUT (FOR REAR AXLE CARRIER LH)

main90179-15001×2iCT190,ST19#199211-199502

48231ASPRING, COIL, REAR RH

main48231-21020iST195..TZG199502-199601

main48231-21031iST195..TZG;AT191,ST191199601-199708

main48231-21041iCT190,ST195..CZ,FZ,TZ199601-199708

main48231-21060iST191..TZ;ST195..TZG199604-199708

main48231-2D660iST191199402-199601

main48231-2D740iST195..CZ,TZ199402-199601

main48231-2D780iST195..TZ199604-199708

main48231-2G060iCT190199305-199402

main48231-2G250iST190,191199305-199402

main48231-2G270iST195199305-199402

48231BSPRING, COIL, REAR LH

main48231-21020iST195..TZG199502-199601

main48231-21031iST195..TZG;AT191,ST191199601-199708

main48231-21041iCT190,ST195..CZ,FZ,TZ199601-199708

main48231-21060iST191..TZ;ST195..TZG199604-199708

main48231-2D660iST191199402-199601

main48231-2D740iST195..CZ,TZ199402-199601

main48231-2D780iST195..TZ199604-199708

main48231-2G060iCT190,ST190,191199211-199305

main48231-2G250iST190,191199305-199402

main48231-2G270iST195199305-199402

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-32010iCT190,ST19#199211-199502

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-32010iAT191,CT190,ST19#199502-199708

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-13100iCT198,199,ST198199211

main48341-20210iCT190,ST190199211-199601

main48341-20270iAT191199601-199708

main48341-20280iCT190,ST19#199601-199708

main48341-21010iCT196,197,ET196199211

main48341-32051iST191199211-199212

main48341-32052iST191199212-199601

main48341-32071iST195199211-199601

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-13100iCT198,199,ST198199211

main48341-20210iCT190,ST190199211-199601

main48341-20270iAT191199601-199708

main48341-20280iCT190,ST19#199601-199708

main48341-21010iCT196,197,ET196199211

main48341-32051iST191199211-199212

main48341-32052iST191199212-199601

main48341-32071iST195199211-199601

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-20700iCT190,ST190199211-199402

main48530-20860iST195199211-199402

main48530-29395iST195199402-199601

main48530-29455iST191199408-199601

main48530-29505iAT191199601-199708

main48530-29515iCT190,ST191199601-199708

main48530-29525iST195..CZ,TZ199601-199708

main48530-29535iST195..TZG199601-199708

main48530-2B010iST191199211-199402

main48530-2B340iST191199402-199408

main48530-2B470iCT190,ST190199402-199601

main48531-80149iCT196,ET196199211-199708

main48531-80151iCT198199211-199708

main48531-80212iCT196,ET196199708-199805

main48531-80213iCT198,199,ST198199708

main48531-80227iCT197,ET196199805

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-80149iCT196,ET196199211-199708

main48531-80151iCT198199211-199708

main48531-80212iCT196,ET196199708-199805

main48531-80213iCT198,199,ST198199708

main48531-80227iCT197,ET196199805

main48540-20700iCT190,ST190199211-199402

main48540-20860iST195199211-199402

main48540-29095iST195199402-199601

main48540-29155iST191199408-199601

main48540-29185iAT191199601-199708

main48540-29195iCT190,ST191199601-199708

main48540-29205iST195..CZ,TZ199601-199708

main48540-29215iST195..TZG199601-199708

main48540-2B010iST191199211-199402

main48540-2B340iST191199402-199408

main48540-2B470iCT190,ST190199402-199601

48559CCOVER, REAR SHOCK ABSORBER DUST, RH NO.1

main48559-20040iCT190,ST19#199211-199502

48559DCOVER, REAR SHOCK ABSORBER DUST, LH NO.1

main48559-20040iCT190,ST19#199211-199502

48703CNUT(FOR REAR SUSPENSION ARM)

main90179-12100×2iST195199211-199708

main90179-14019×4iAT191,CT190,ST190,191; ST195199211-199708

48703EBOLT(FOR REAR SUSPENSION ARM)

main90119-12126×2iST195199211-199708

main90901-09001×2iAT191,CT190,ST190,191199211-199708

main90901-19001×2iAT191,CT190,ST190,191199211-199708

main90901-19002×4iST195199211-199708

main90901-19003×2iST195199211-199708

48703HWASHER, NO.1(FOR REAR SUSPENSION ARM)

main90201-14017×6iAT191,CT190,ST190,191199211-199708

48703JWASHER, NO.2(FOR REAR SUSPENSION ARM)

main48715-20030×2iAT191,CT190,ST191199601-199708

main48715-32010×2iCT190,ST190,191199211-199601

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-20190iCT190,ST190,191199211-199402

main48710-20230iCT190,ST190,191199402-199601

main48710-20241iAT191,CT190,ST191199601-199708

main48710-20270iST195199502-199708

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-20190iCT190,ST190,191199211-199402

main48710-20230iCT190,ST190,191199402-199601

main48710-20241iAT191,CT190,ST191199601-199708

main48710-20270iST195199502-199708

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-20160iCT190,ST190,191199211-199601

main48730-20180iST195199502-199601

main48730-20220iAT191,CT190,ST191199601-199708

main48730-20230iST195199601-199708

48730GNUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH)

main90179-16022iAT191,CT190,ST190,191199211-199708

48730HNUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 RH)

main90179-16021iAT191,CT190,ST190,191199211-199708

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-20180iST195199211-199502

main48730-20230iST195199601-199708

main48740-20050iCT190,ST190,191199211-199601

main48740-20080iAT191,CT190,ST191199601-199708

48740LNUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH)

main90179-16022iAT191,CT190,ST190,191199211-199708

48740MNUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 LH)

main90179-16021iAT191,CT190,ST190,191199211-199708

48750GNUT(FOR REAR SUSPENSION SUPPORT)

main90179-08122×6iCT190,ST19#199211-199502

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-20100iCT190,ST19#199502-199601

main48750-20150iAT191,CT190,ST19#199601-199708

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90179-14015iCT190,ST19#199211-199502

main94184-61400iAT191,CT190,ST19#199506-199708

48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90387-15012iCT190,ST19#199211-199407

main90387-15027iCT190,ST19#199407-199502

48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH

main48753-20040iCT190,ST19#199211-199502

48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH

main48753-20040iCT190,ST19#199211-199502

48753DCOVER, REAR SUSPENSION SUPOPORT, NO.2 RH

main48753-20060iST190,191199305-199502

main48753-20070iAT191,CT190,ST19#199601-199708

48753ECOVER, REAR SUSPENSION SUPOPORT, NO.2 LH

main48753-20060iST190,191199305-199502

main48753-20070iAT191,CT190,ST19#199601-199708

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-20100iCT190,ST19#199211-199502

main48750-20150iAT191,CT190,ST19#199601-199708

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90179-14015iCT190,ST19#199211-199502

main94184-61400iAT191,CT190,ST19#199506-199708

48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90387-15012iCT190,ST19#199211-199407

main90387-15027iCT190,ST19#199407-199502

48780AROD ASSY, STRUT, REAR

main48780-12010×2iST195199211-199502

main48780-20080×2iCT190,ST190,191199211-199601

main48780-20160×2iAT191,CT190,ST191199601-199608

main48780-20190×2iAT191,CT190,ST191199608-199708

main48780-32060×2iST195199605-199708

48780BBOLT(FOR STRUT ROD)

main90119-12131×4iAT191,CT190,ST19#199502-199708

48780CNUT(FOR STRUT ROD)

main90179-12062×2iCT190,ST19#199211-199407

main90179-12091×2iAT191,CT190,ST19#199407-199708

main90179-12114×2iAT191,CT190,ST19#199211-199708

48812BAR, STABILIZER, REAR

main48812-05030iCT190,ST190,191199408-199601

main48812-20550iCT190,ST190199211-199402

main48812-20700iST191199211-199402

main48812-20740iST195..TZG199601-199708

48818BUSH, STABILIZER, REAR

main48818-20260×2iCT190,ST190,191199402-199601

main48818-20280×2iCT190,ST190199211-199402

main48818-20290×2iST195199211-199502

48830LINK ASSY, REAR STABILIZER

main48830-32010×2iCT190,ST190,191199211-199601

main48830-32040×2iST195199502-199601

48830ANUT(FOR REAR STABILIZER LINK)

main90179-10054×4iCT190,ST19#199211-199502

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-20080×2iCT190,ST190,191199211-199601

main48832-32050iST195..TZG199601-199708

main48832-32070iST195..TZG199601-199708

9046400480

main90464-00480

9095001453

main90950-01453

91611B0816

main91611-B0816

50 parts on this diagram · 6 diagrams in section
