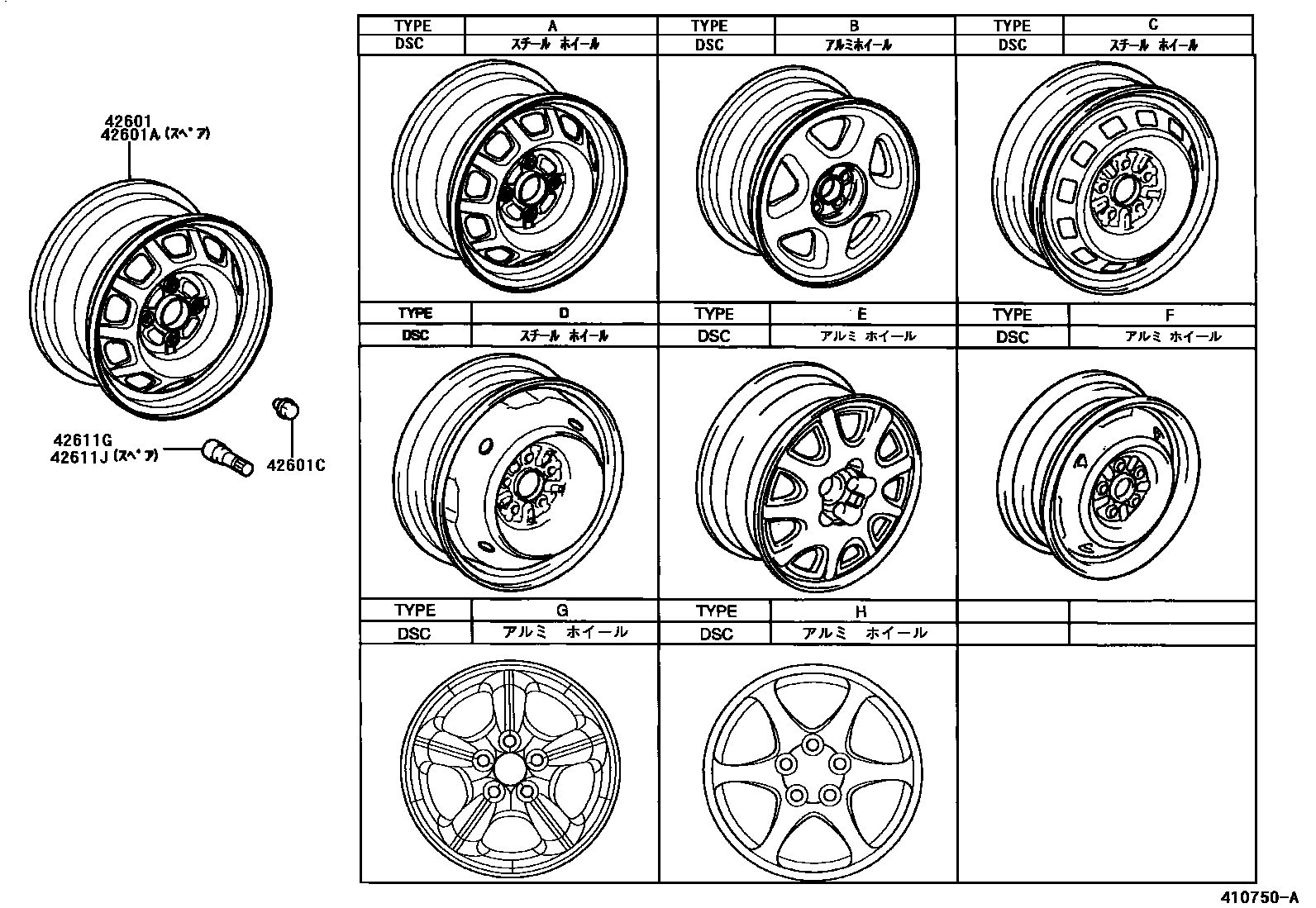

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1

42601WHEEL, DISC

main42611-13110×4iCT196,197,198,199,ET196,ST198199211

main42611-20870-01×4iAT191,CT190,ST19#..CZ,FZ,TZ199601-199708

main42611-20880-01×4iCT190,ST19#..CZ,TZ199211-199601

main42611-21090×4iAT191,CT190,ST19#..CZ,FZ,TZ199601-199708

main42611-21100×4iST195..TZG199601-199708

main42611-2B010×4iST195..TZG199502-199601

main42611-2B030×4iCT190,ST19#..CZ,FZ,TZ199211-199601

42601AWHEEL, DISC (FOR SPARE)

main42611-13110iCT196,197,198,199,ET196,ST198199211

main42611-20440iAT191,CT190,ST19#..CZ,FZ,TZ199211-199708

main42611-20840iST195..TZG199502-199708

main42611-20870-01iCT190,ST190..FZ199211-199601

main42611-20880-01iCT190,ST19#..CZ,TZ199211-199601

main42611-21090iAT191,CT190,ST19#..CZ,FZ,TZ199601-199708

main42611-21100iST195..TZG199601-199708

main42611-2B010iST195..TZG199502-199601

main42611-2B030iCT190,ST19#..CZ,FZ,TZ199211-199601

42601CNUT, HUB (FOR AXLE)

main90942-01007×16iCT196,197,198,199,ET196,ST198..U,UL199211

main90942-01021×20iAT191,CT190,ST19#..CZ,FZ,TZ199211-199708

main90942-01033×20iAT191,CT190,ST19#..CZ,FZ,TZ199601-199708

main90942-01058×20iST195..TZG199601-199708

main90942-01059×16iCT196,197,ET196,ST198..UX199211

main90942-01062×20iCT190,ST19#..CZ,FZ,TZ199211-199601

main90942-01084×20iST195..TZG199502-199601

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iAT191,CT19#,ET196,ST19#199211

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAT191,CT19#,ET196,ST19#199211

5 parts on this diagram · 4 diagrams in section
