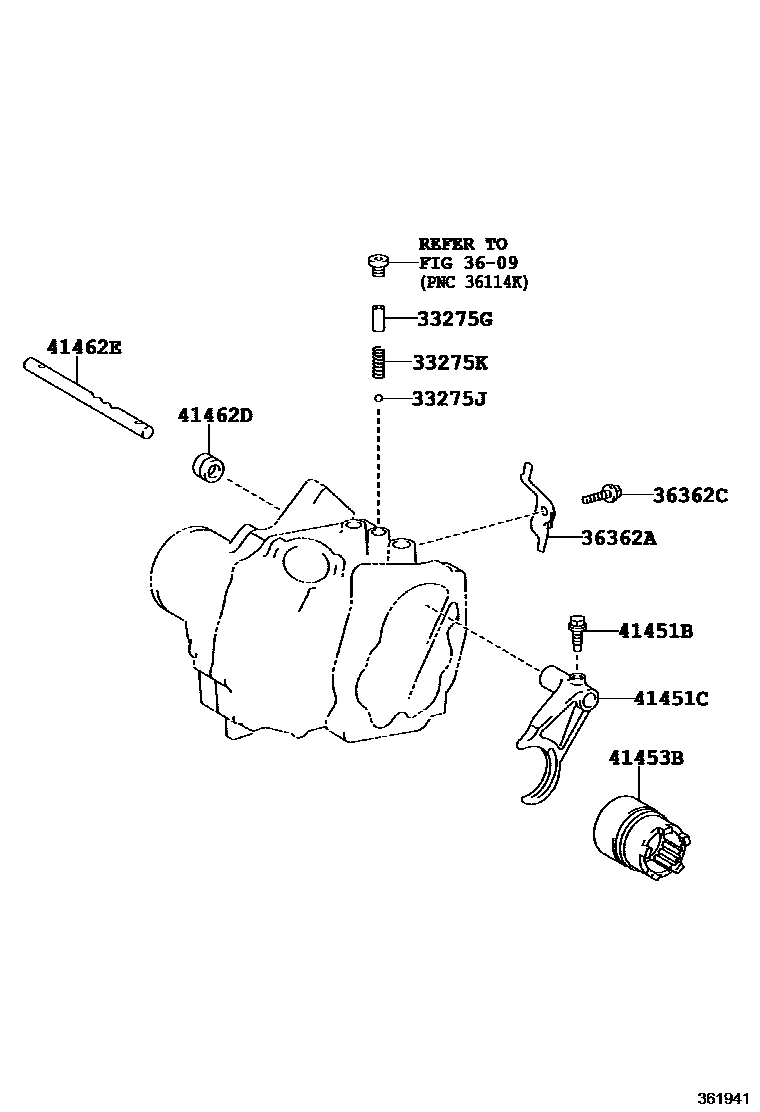

TRANSFER LEVER & SHIFT ROD

0001 1 0002 1

33275GSEAT, TRANSFER SHIFT DETENT BALL SPRING

main33275-16010iCT198,ST195..5F199211-199402

33275JBALL (FOR TRANSFER SHIFT DETENT)

main90360-08009iCT198,ST195..5F199211-199402

33275KSPRING, COMPRESSION (FOR TRANSFER SHIFT DETENT BALL)

main90501-14110iCT198,ST195..5F199211-199402

3609

36362ALEVER, TRANSFER SHIFT, OUTER

main36362-12010iCT198,ST195..5F199211-199402

36362CBOLT (FOR TRANSFER SHIFT OUTER LEVER)

main90105-08202iCT198,ST195..5F199211-199402

41451BBOLT (FOR DIFFERENTIAL LOCK SHIFT FORK)

main90105-06094iCT198,ST195..5F199211-199402

41451CFORK, DIFFERENTIAL LOCK SHIFT

main41451-12020iCT198,ST195..5F199211-199402

main41451-32010iST195..4FC199211-199402

41453BSLEEVE, DIFFERENTIAL LOCK

main41453-12020iCT198,ST195..5F199211-199402

main41453-12030iST195..4FC199211-199402

41462DSEAL, OIL (FOR DIFFERENTIAL LOCK SHIFT FORK SHAFT)

main90311-14010iCT198,ST195..5F199211-199402

41462ESHAFT, DIFFERENTIAL LOCK SHIFT FORK

main41462-12020iCT198,ST195..5F199211-199402

main41462-32010iST195..4FC199211-199402

11 parts on this diagram · 2 diagrams in section
