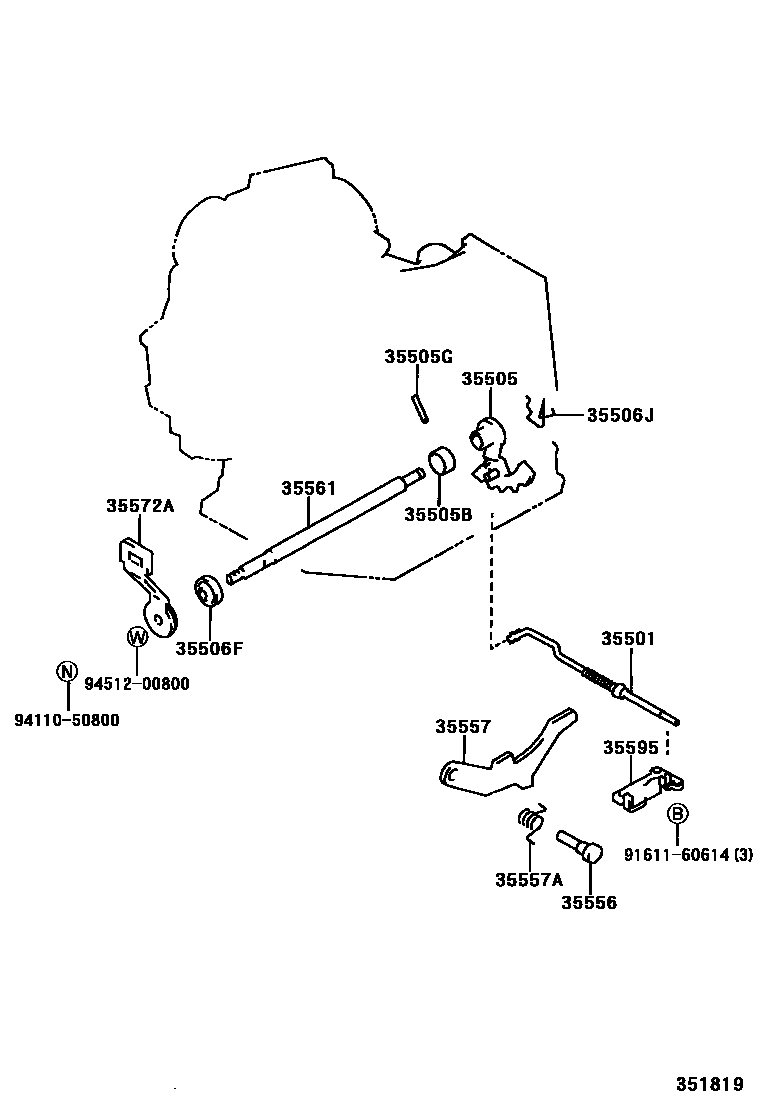

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A132L 0002 1A241E,A241L,A245E 0004 1A540H 0006 1A132L 0007 1A241L 0008 1A241E 0009 1A540H 0011 1A540H 0012 1A245E 0013 1A241L

35501ROD SUB-ASSY, PARKING LOCK

main35501-12010iAT191,CT190,196,197,ST190,191..4FC199211-200204

main35501-12030iCT197..4FC200204

main35501-32030iET196..3FC199211-200206

main35501-32040iST195,198..4FC199211

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-12040iCT190,196,ST190,191..4FC199211-199601

main35505-12060iCT197..4FC200204

main35505-12070iAT191..4FC199601-199708

main35505-32040iET196,ST195,198..ATM199211-200206

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iAT191,CT190,196,197,ET196,ST19#..ATM199211-200206

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iAT191,CT190,196,197,ET196,ST19#..ATM199211-200206

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iAT191,CT190,196,197,ET196,ST19#..ATM199211-200206

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09001iET196,ST195,198..ATM199211-200206

main90524-11001iAT191,CT190,196,197,ST190,191..4FC199211

35556SHAFT, PARKING LOCK PAWL

main35556-12020iAT191,CT190,196,197,ST190,191..4FC199211

main35556-32010iET196..3FC199211-200206

main35556-32020iST195,198..4FC199211

35557PAWL, PARKING LOCK

main35557-12020iAT191,CT190,196,197,ST190,191..4FC199211-200204

main35557-12030iCT197..4FC200204

main35557-32020iET196..3FC199211-200206

main35557-32031iST195,198..4FC199211

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21003iAT191,CT190,196,197,ST190,191..4FC199211-200204

main90508-26047iET196..3FC199211-200206

main90949-03003iST195..4FC199211-199510

main90949-03043iST195,198..4FC199510

main90949-03060iCT197..4FC200204

35561SHAFT, MANUAL VALVE LEVER

main35561-12020iCT190,196,197,ST190,191..4FC199211

main35561-12030iAT191..4FC199601-199708

main35561-32010iET196,ST195,198..ATM199211-200206

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-12110iET196..3FC199601-200206

main35572-20150iST195..4FC199211-199601

main35572-20190iCT190,196,ST190,191..4FC199211-199601

main35572-20210iCT190,196,197,ST191..4FC199601

main35572-20220iAT191..4FC199601-199708

main35572-21010iET196..3FC199211-199601

main35572-32030iST195,198..4FC199601

35595BRACKET, PARKING LOCK PAWL

main35595-32010iET196..3FC199211-200206

main35595-32020iST195,198..4FC199211

9161160614

main91611-60614

9411050800

main94110-50800

9451200800

main94512-00800

15 parts on this diagram · 10 diagrams in section
