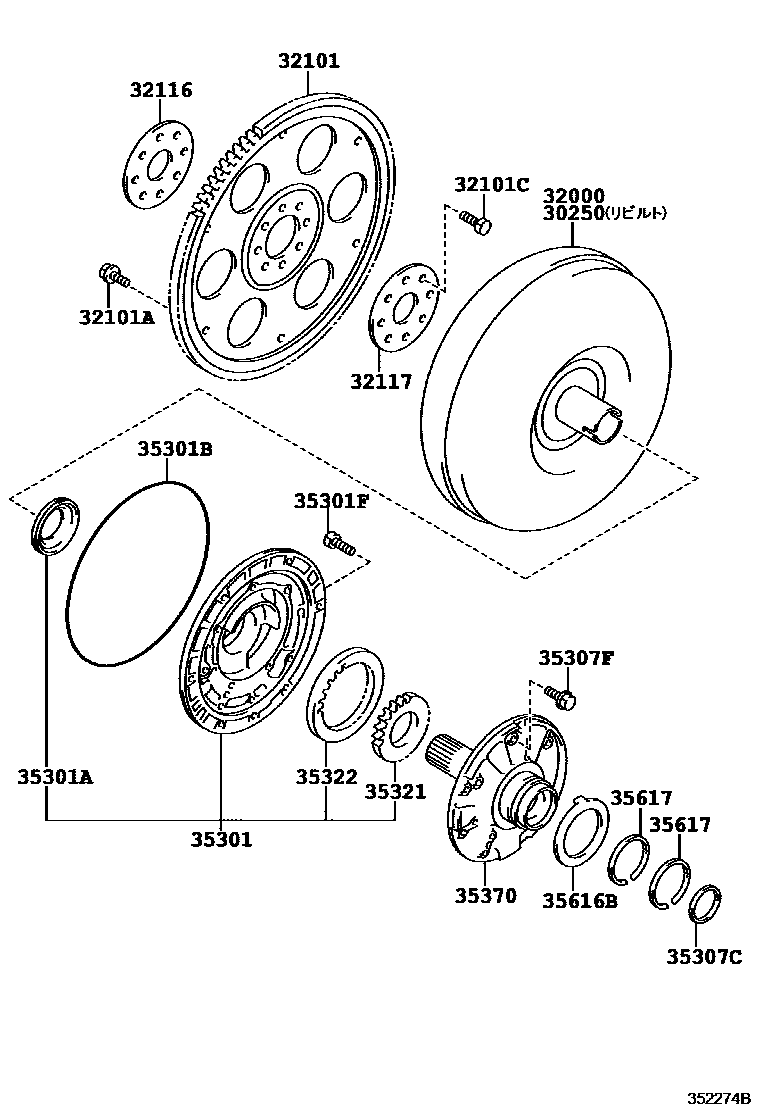

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-20220iCT190,196..4FC..DSL199211-199805

main30250-20230iST190..4FC199211-199601

main30250-20270iCT190..4FC199601-199708

main30250-32051iCT197,ST191..4FC199211

32000CONVERTER ASSY, TORQUE

main32000-20170iET196..3FC199211-200206

main32000-20220iCT190,196..4FC..DSL199211-199805

main32000-20230iST190..4FC199211-199601

main32000-20260iAT191..4FC199601-199708

main32000-20270iCT190..4FC199601-199708

main32000-21010iST195..4FC..TZG199502-199708

main32000-32051iCT197,ST191..4FC199211

main32000-32071iST195..4FC199211-199308

main32000-32120iST195..4FC..(CZ,TZ)199308-199708

main32000-42020iST198199908

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12060iAT191..4FC199601-199708

main32101-12070iCT190,196,197..4FC199211

main32101-16020iET196..3FC199211-199306

main32101-16021iET196..3FC199306

main32101-20081iST195..4FC..TZG199502-199708

main32101-32050iST190,191..4FC199211-199406

main32101-32051iST190,191..4FC199406-199708

main32101-32110iST195,198..4FC..(CZ,TZ,U,UL,UX)199211

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iAT191,CT190,196,197,ET196,ST19#..ATM199211

main90119-08498×5iAT191,CT190,196,197,ET196,ST19#..ATM199211

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×6iAT191,ET196..ATM199211

main90105-12184×8iST195..4FC..TZG199502-199708

main90109-10037×8iCT190,196,197..4FC199211

main90109-10054×8iST19#..4FC..(CZ,FZ,TZ,U,UL,UX)199211

32116SPACER, DRIVE PLATE, FRONT

main32116-12010iAT191..4FC199601-199708

main32116-16010iET196..3FC199211

main32116-20030iCT190,196,197..4FC199211

main32116-20050iST195..4FC..TZG199502-199708

main32116-32011iST19#..4FC..(CZ,FZ,TZ,U,UL,UX)199211

32117SPACER, DRIVE PLATE, REAR

main32117-12010iAT191..4FC199601-199708

main32117-16010iET196..3FC199211

main32117-20040iCT190,196,197..4FC199211

main32117-20060iST195..4FC..TZG199502-199708

main32117-32010iST19#..4FC..(CZ,FZ,TZ,U,UL,UX)199211

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-12010iST191199402-199708

main35035-16040iET196..3FC199903-200206

main35035-20010iCT190,196..4FC199211-199402

main35035-32010iET196..3FC199211-199903

main35035-32030iST195,198..4FC199211

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iCT197,ST198..4FC199903-200008

main90311-38064iET196..3FC199903-200206

main90311-38082iCT197..4FC200009-200011

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99024iAT191,CT190,196,197,ET196,ST19#..ATM199211-200206

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08050×7iET196,ST195,198..ATM199211-200206

main90105-08198×6iAT191,CT190,196,197,ST190,191..4FC199211

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-12080iCT196,197..4FC199801

main35789-32020iCT190,196,197,ET196,ST19#..ATM199211-200206

main35789-32030iCT190,196,197,ET196,ST19#..ATM199211-200206

35307FBOLT (FOR STATOR SHAFT)

main90119-06180×11iCT190,196,ET196,ST19#..ATM199211-199601

main90119-06808×11iAT191,CT190,196,197,ET196,ST19#..ATM199601-200206

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12020iST19#..4FC199211-199402

main35321-12030iST191,195,198..4FC199405

main35321-12040iST195..4FC199211-199405

main35321-12050iST191,195,198..4FC199405

main35321-12060iST195..4FC199211-199405

main35321-12070iCT190,196,ET196..ATM199211-199402

main35321-12080iCT190,196,ET196..ATM199211-199402

main35321-12090iCT190,196,ET196..ATM199211-199402

main35321-12100iCT190,196,ET196..ATM199211-199402

main35321-12110iAT191,CT190,196,197,ET196,ST190..ATM199402-200206

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-12010iST195..4FC199211-199405

main35322-12020iST195..4FC199211-199405

main35322-12030iST191,195,198..4FC199405

main35322-12040iST195..4FC199211-199405

main35322-12050iST191,195,198..4FC199405

main35322-12060iCT190,196,ET196..ATM199211-199402

main35322-12070iAT191,CT190,196,197,ET196,ST190..ATM199402-200206

main35322-12080iAT191,CT190,196,197,ET196,ST190..ATM199402-200206

main35322-12090iAT191,CT190,196,197,ET196,ST190..ATM199402-200206

main35322-12100iCT190,196,ET196..ATM199211-199402

main35322-35010iST190,191..4FC199211-199402

35370SHAFT ASSY, STATOR

main35370-12040iCT190,196,197,ET196,ST19#..ATM199211-200206

main35370-12050iAT191..4FC199601-199708

35616BWASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)

main35616-32010iAT191,CT190,196,197,ET196,ST19#..ATM199211-200206

35617RING, CLUTCH DRUM OIL SEAL

main35617-32011×2iAT191,CT190,196,197,ET196,ST19#..ATM199211-200206

18 parts on this diagram · 1 diagram in section
