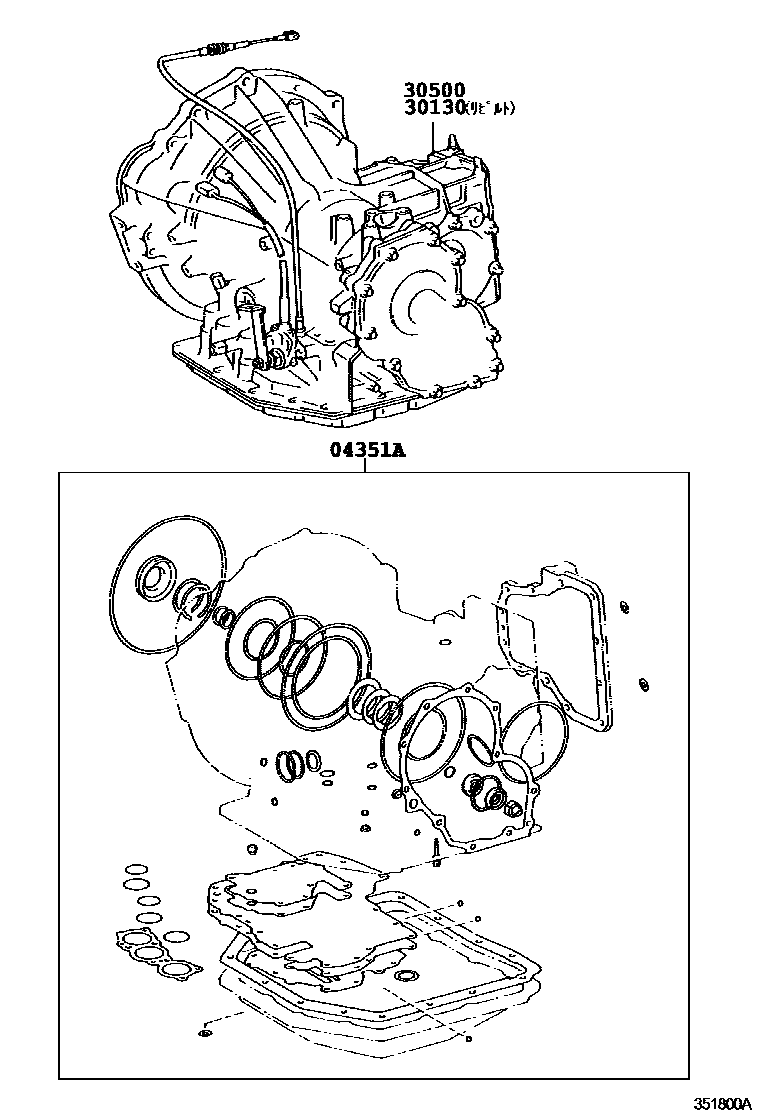

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-10030i199211-199402

main04351-10050i199402-199803

main04351-10051i199803-200206

main04351-12060i199211-199408

main04351-12120i199601-199708

main04351-16070i199601-200106

main04351-16071i200106

main04351-16090i199408-199708

main04351-32061i199211-199403

main04351-42010i199403

30130TRANSAXLE ASSY, REBUILT

main30130-21010i199211-199601

main30130-21090i199708-199908

main30130-21091i199908-200206

main30130-21110i199805-199908

main30130-21111i199908

main30130-2B281i199211-199402

main30130-2B301i199211-199402

main30130-2B311i199211-199403

main30130-2B330i199403-199601

main30130-2B440i199402-199601

main30130-2B460i199402-199601

main30130-2B530i199601-199603

main30130-2B531i199603-199708

main30130-2B540i199601-199708

main30130-2B560i199601-199708

main30130-2B570i199601-199705

main30130-2B571i199705-199805

main30130-2B580i199601-199708

30500TRANSAXLE ASSY, AUTOMATIC

main30500-21010i199211-199601

main30500-21090i199708-199908

main30500-21091i199908-200206

main30500-21110i199805-199908

main30500-21111i199908

main30500-2B281i199211-199402

main30500-2B301i199211-199402

main30500-2B311i199211-199403

main30500-2B330i199211-199403

main30500-2B440i199402-199601

main30500-2B460i199402-199601

main30500-2B530i199601-199603

main30500-2B531i199603-199708

main30500-2B540i199601-199708

main30500-2B560i199601-199708

main30500-2B570i199601-199705

main30500-2B571i199705-199805

main30500-2B580i199601-199708

3 parts on this diagram · 4 diagrams in section
