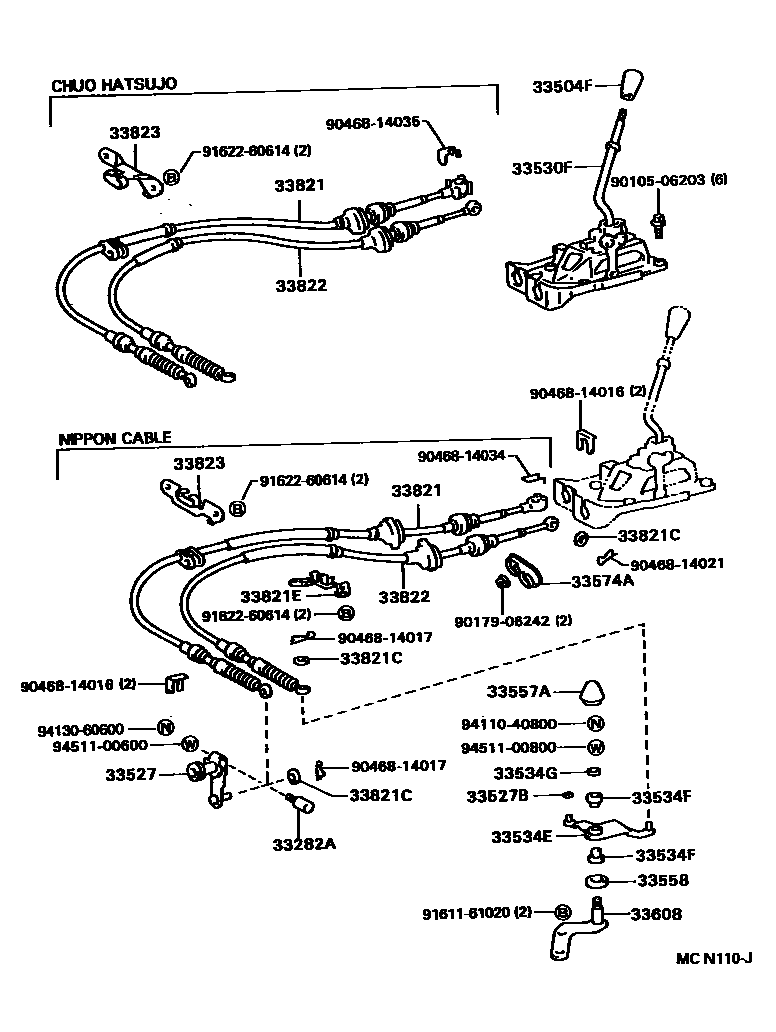

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1

33282APIN, LEVER LOCK (FOR CONTROL SHIFT LEVER)

main33282-35010iCT190,196,197,ST190..5F199211-200206

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12180-C0iAT191,CT19#,ET196,ST190,195..5F..(CZ,FZ,UL,UX)199402-200206

BLACK,TRIM1#

main33504-12200-C0iST195..5F..TZ199211-199402

BLACK,TRIM2#

main33504-14050-C0iCT196,198,ET196..5F..U199211-199402

BLACK,TRIM2#

main33542-20100-C0iCT190,196,ET196,ST19#..ATM199402-199601

BLACK,TRIM1#

main33542-20180-C0iAT191,CT190,196,197,ET196,ST19#..ATM199601-200206

BLACK,TRIM1#

33527LEVER, CONTROL SHIFT (FOR FLOOR SHIFT)

main33527-32010iCT190,196,197,ST190..5F199211-200206

33527BBUSH (FOR CONTROL SHIFT LEVER)

main33557-33010iCT190,196,ST190..5F199211-199311

main90389-10009iCT198,ST195..5F199211-199311

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-20570iCT190,196,ET196,ST190..5F199211-199601

main33530-20590iCT198,ST195..5F199211-199601

main33530-20720iAT191,CT190,196,ET196..5F199601-199701

main33530-20721iAT191,CT190,196,197,ET196..5F199701

main33530-20730iCT198,ST195..5F199601-199701

main33530-20731iCT198,199,ST195..5F199701

33534ECRANK, SELECTING BELL, NO.2

main33534-10060iET196..5F200010-200206

main33534-12090iCT198,ST195..5F199211-199311

main33534-12091iCT198,199,ST195..5F199311-200206

main33534-16050iET196..5F199211-199408

main33534-16051iAT191,ET196..5F199408-200010

main33534-33010iCT190,196,197,ST190..5F199211-200206

33534FBUSH (FOR SELECTING BELLCRANK NO.2)

main90386-12022×2iAT191,CT19#,ET196,ST190,195..5F199211-200206

33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)

main90201-08028iAT191,CT19#,ET196,ST190,195..5F199211-200206

33557ACOVER, SELECTING BELLCRANK DUST, NO.1

main33557-32010iAT191,CT19#,ET196,ST190,195..5F199211-200206

33558COVER, SELECTING BELLCRANK DUST, NO.2

main33558-10030iET196..5F199211-199311

main33558-12010iCT198,ST195..5F199211-199311

main33558-32010iCT190,196,197,ST190..5F199211-200206

33574ARETAINER, SHIFT CABLE GROMMET, NO.1

main33574-20350iCT19#,ET196,ST190,195..5F199211-199601

main33574-20380iAT191,CT19#,ET196,ST19#199601

33608SUPPORT SUB-ASSY, SELECTING BELLCRANK

main33608-12030iCT198,ST195..5F199211-199311

main33608-12031iCT198,199,ST195..5F199311-200206

main33608-16020iET196..5F199211-199408

main33608-16021iAT191,ET196..5F199408-200206

main33608-33010iCT190,196,197,ST190..5F199211-200206

33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)

main33821-20820iCT198199211-199601

main33821-21010iET196..5F199211-199601

NIPPON CABLE

main33821-21020iET196..5F199211-199601

CHUO HATSUJO

main33821-2B090iST190..5F199211-199601

NIPPON CABLE

main33821-2B100iST190..5F199211-199601

CHUO HATSUJO

main33821-2B120iCT190,196..5F199211-199601

main33821-2B150iST195..5F199211-199601

main33821-2B310iAT191,ET196..5F199601

main33821-2B330iCT190,196,197..5F199601

main33821-2B340iCT198,199,ST195..5F199601

33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)

main90201-08023iCT190,196,ET196,ST190,195..5F; CT198199211-199601

SHIFT LEVER SIDE; SHIFT LEVER SIVE

main90201-08077×2iAT191,CT190,196,198,ET196,ST190,195..5F199211

main90201-10042iCT19#..5F199805

main90201-10113iAT191,CT19#,ET196,ST195..5F199612

33821ECLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)

main90949-01681iST195..4FC..(CZ,TZ)199211-199601

main90949-01805iCT19#,ET196,ST190,195..5F199211-199601

main90949-01810iCT190,196,ST190,191..4FC199211-199601

main90949-01825iET196..3FC199211-199601

main90949-01A42iST195..4FC..TZG199502-199601

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33822-20440iST190..5F199211-199601

NIPPON CABLE

main33822-20450iST190..5F199211-199601

CHUO HATSUJO

main33822-20470iCT190,196..5F199211-199601

main33822-20500iST195..5F199211-199601

main33822-20520iCT198199211-199601

NIPPON CABLE

main33822-20530iCT198199211-199601

CHUO HATSUJO

main33822-20610iAT191,ET196..5F199601

main33822-20630iCT190,196,197..5F199601

main33822-20660iCT198,199,ST195..5F199601

main33822-21010iET196..5F199211-199601

NIPPON CABLE

main33822-21020iET196..5F199211-199601

CHUO HATSUJO

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-12140iET196..3FC199601

main33823-20080iCT190,196,ST190,191..4FC199211-199601

main33823-20090iST195..4FC199211-199601

main33823-20100iCT190,196,ET196,ST190..5F199211-199601

NIPPON CABLE

main33823-20110iCT198,199,ST195..5F199211

main33823-20120iCT190,196,ET196,ST190..5F199211-199601

CHUO HATSUJO

main33823-20140iET196..3FC199211-199601

main33823-20150iAT191..4FC199601-199708

main33823-20190iAT191,CT190,196,197,ET196..5F199601

main33823-20200iCT190,196,197,ST191..4FC199601

main33823-32031iST195,198..4FC199601

9010506203

main90105-06203

9017906242

main90179-06242

9046814016

main90468-14016

9046814017

main90468-14017

9046814021

main90468-14021

9046814034

main90468-14034

9046814035

main90468-14035

9161161020

main91611-61020

9162260614

main91622-60614

9411040800

main94110-40800

9413060600

main94130-60600

9451100600

main94511-00600

9451100800

main94511-00800

30 parts on this diagram · 15 diagrams in section
