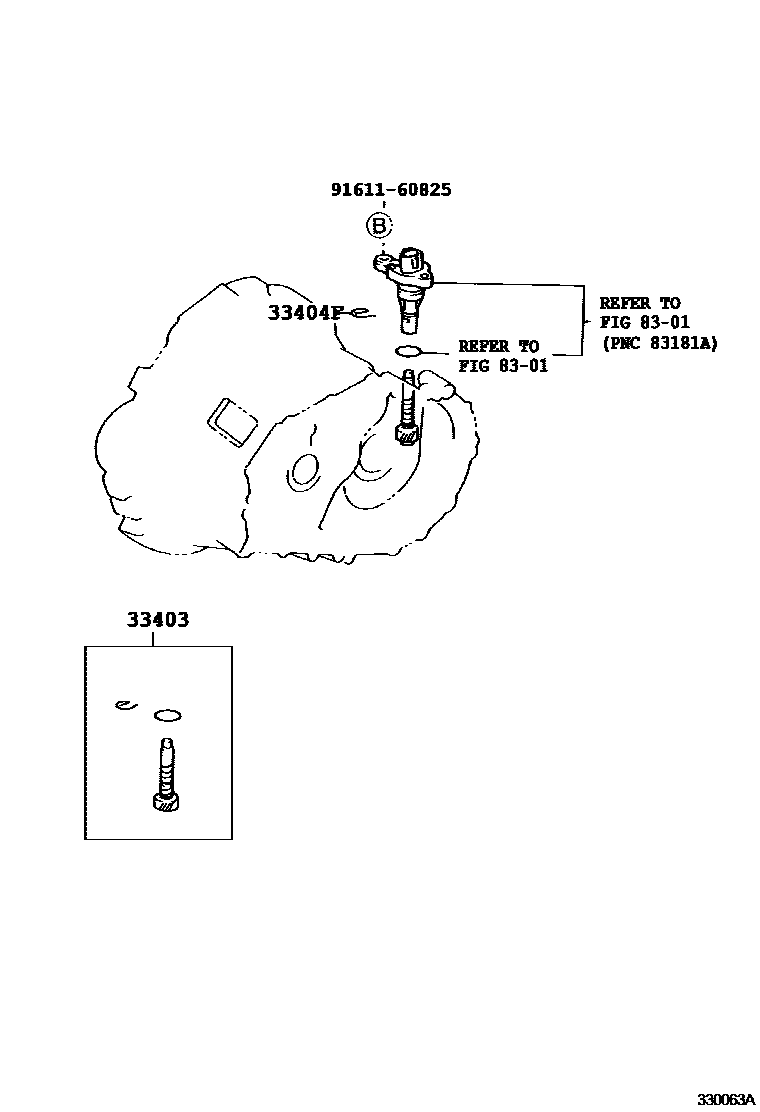

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1C51 0002 1S50,S51 0003 1E56F,E57F

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19455iET196..5F..UX199601

main33403-19465iET196..5F..(U,UL)199601

main33403-19476iCT198,199199601

main33403-19495iCT190,196,197,ST190..5F..(CZ,FZ,UX)..(DSL,EFI)199211

main33403-19505iCT196,197..5F..(U,UL)199211

main33403-29495iCT198,ST195..5F199502-199601

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iCT19#,ET196,ST190,195..5F199211-199601

8301METER

→ Go to FIG 83-01

9161160825

main91611-60825

4 parts on this diagram · 3 diagrams in section
