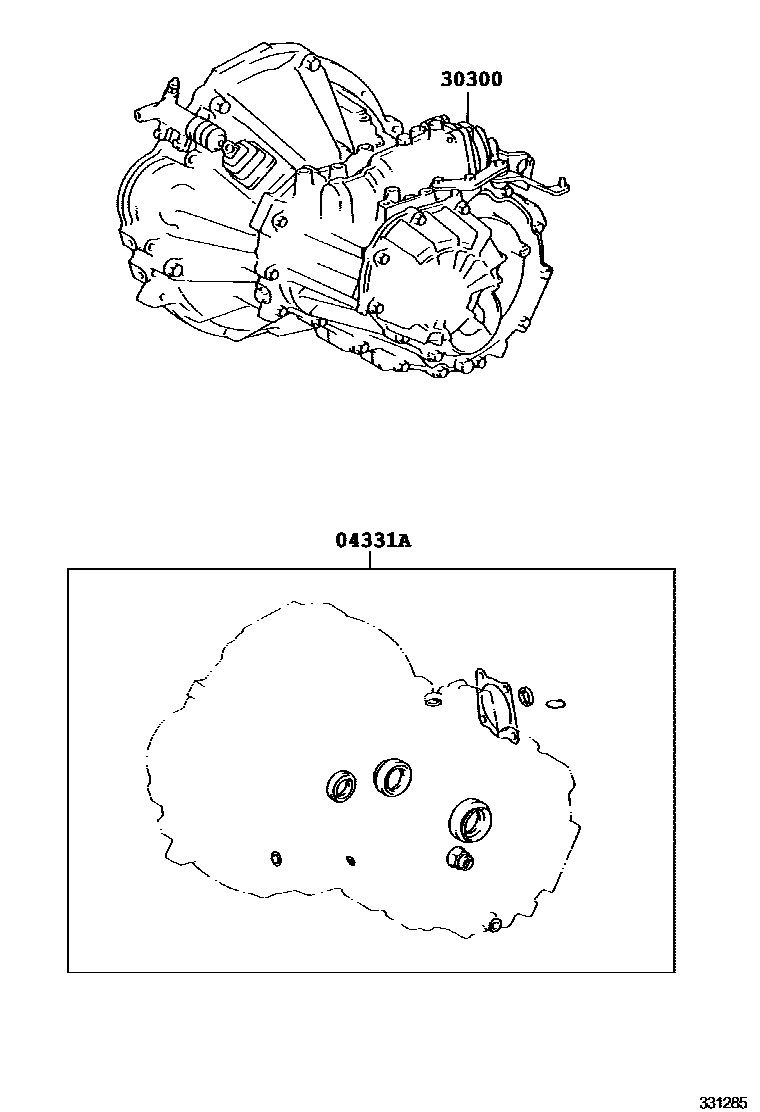

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1C51,C58 0002 1E56F,E57F 0003 1S50,S51

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-12101iCT198,199,ST195..5F199211-200206

main04331-12110iAT191,ET196..5F199211-200206

main04331-32011iCT190,196,197,ST190..5F199211-200002

main04331-32040iCT197..5F200002-200206

30300TRANSAXLE ASSY, MANUAL

main30300-21030iET196..5F199211-199408

main30300-21031iET196..5F199408-199505

main30300-21032iET196..5F199505-199601

main30300-21040iST195..5F..TZG199502-199601

main30300-21050iCT196..5F199601-199805

main30300-21060iCT198199601-199805

main30300-21070iST195..5F..TZG199601-199708

main30300-21080iET196..5F199601-200206

main30300-21090iCT197..5F199805-200206

main30300-21130iCT199199805-200206

main30300-2B271iST195..5F..(CZ,TZ)199211-199601

main30300-2B330iST190..5F199211-199601

main30300-2B340iCT190,196..5F199211-199601

main30300-2B450iCT198199211-199601

main30300-2B690iAT191..5F199601-199708

main30300-2B700iCT190..5F199601-199708

main30300-2B710iST195..5F..(CZ,TZ)199601-199708

2 parts on this diagram · 3 diagrams in section
