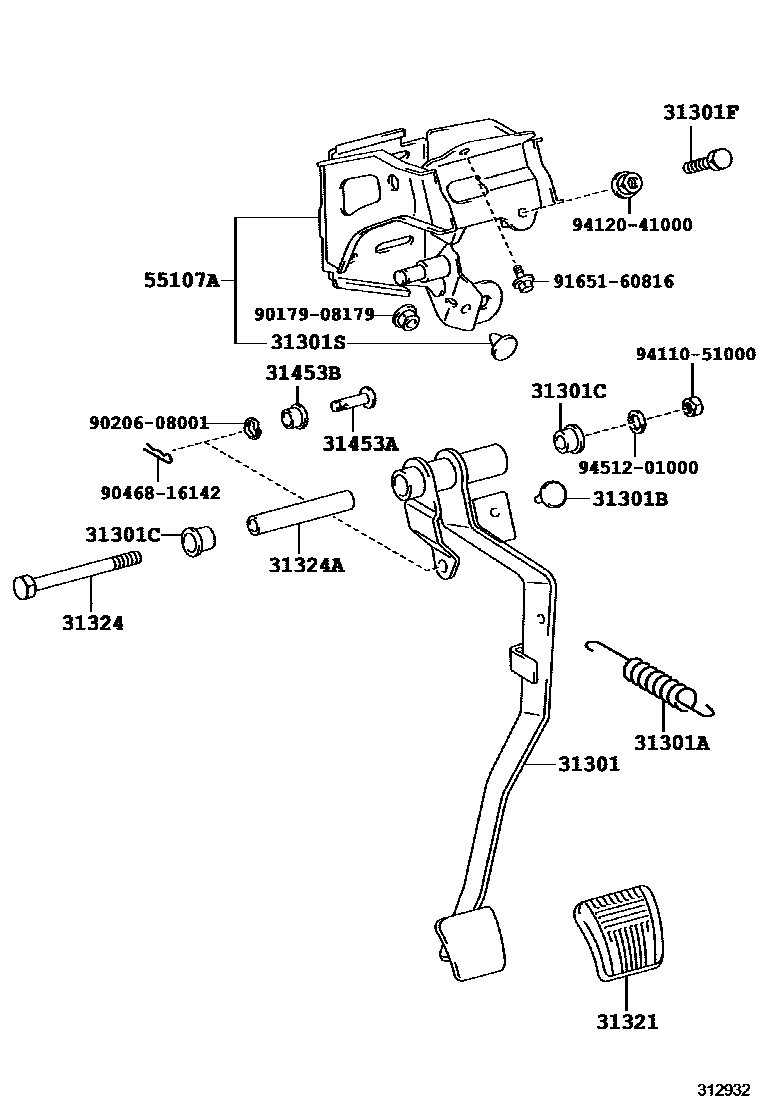

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0003 1 0005 1 0006 1 0007 1 0008 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-20460iAT191,CT196,197,198,199,ET196,ST195..5F..(CZ,FZ,TZ,U,UL,UX)199601-199908

main31301-20490iCT190..5F;ST195..5F..TZG199601-199708

main31301-21030iCT19#,ET196..5F199908

31301ASPRING(FOR CLUTCH PEDAL)

main90905-07002iCT19#,ET196,ST190..5F199211-199601

main90905-07011iAT191,CT196,197,198,199,ET196,ST195..5F..(CZ,FZ,TZ,U,UL,UX)199601

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06032iCT19#,ET196,ST190,195..5F199211-199309

main90541-06036iAT191,CT19#,ET196,ST190,195..5F199309

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iAT191,CT19#,ET196,ST190,195..5F199211

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iAT191,CT19#,ET196,ST190,195..5F199211

31301SCUSHION, NO.2(FOR CLUTCH PEDAL)

main90541-06032iCT19#,ET196,ST190..5F199211-199411

main90541-06036iST195..5F199211-199411

31321PAD, CLUTCH PEDAL

main31321-14020iAT191,CT19#,ET196,ST190,195..5F199211

31324SHAFT, CLUTCH PEDAL

main90101-10100iAT191,CT19#,ET196,ST190,195..5F199211

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10002iAT191,CT19#,ET196,ST190,195..5F199211

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iAT191,CT19#,ET196,ST190,195..5F199211

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iAT191,CT19#,ET196,ST190,195..5F199211

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-20360iCT19#,ET196,ST190..5F199211-199601

main55107-20370iST195..5F199211-199601

main55107-21030iCT19#..5F199803-199805

main55107-21040iCT19#,ET196..5F199908

9017908179

main90179-08179

9020608001

main90206-08001

9046816142

main90468-16142

9165160816

main91651-60816

9411051000

main94110-51000

9412041000

main94120-41000

9451201000

main94512-01000

19 parts on this diagram · 6 diagrams in section
