DISTRIBUTOR

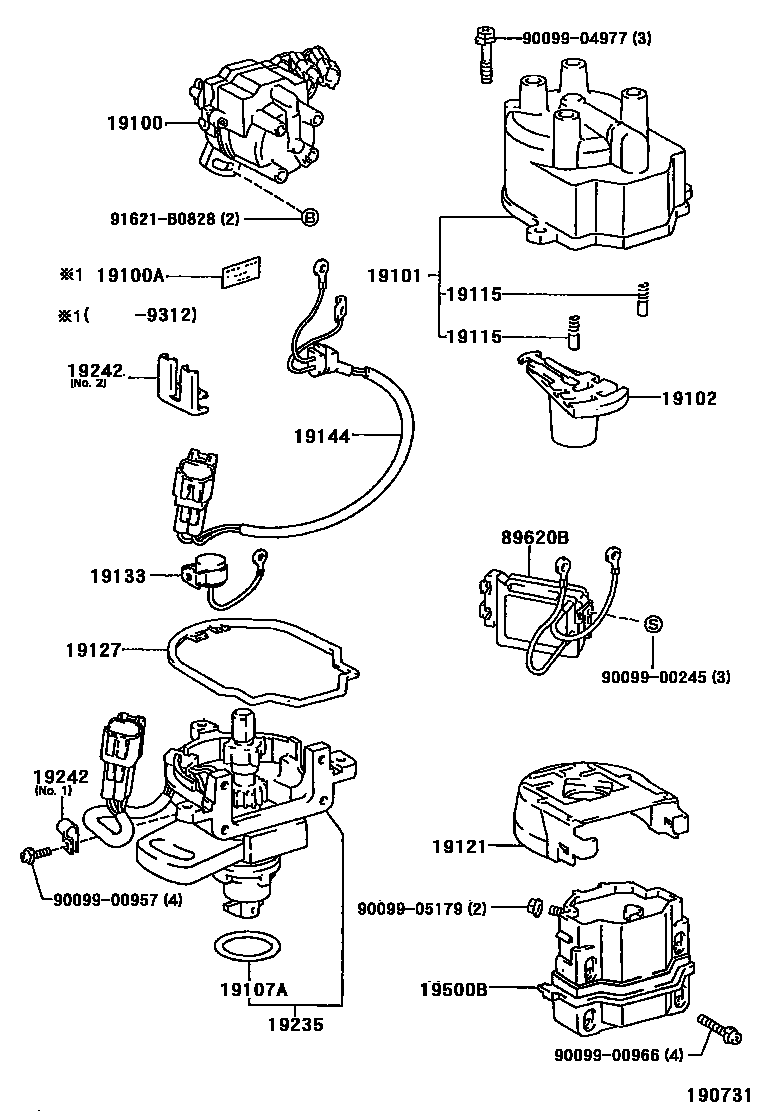

Parts diagram

19100DISTRIBUTOR ASSY

main19020-11340i199211-199508

main19020-11390i199508-199601

main19020-11400i199601-199708

main19050-74020i199211-199308

main19050-74040i199402-199601

main19050-74050i199308-199402

main19100-74081i199211-199601

main19100-88461i199502-199708

19100ATAPE, SEALING

main90919-24004i199211-199312

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-11060i199211-199708

main19101-74150i199211-199601

main19101-74180i199211-199601

main19101-88010i199502-199708

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11031i199211-199601

main19102-11370i199601-199708

main19102-74040i199502-199708

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14088i199211-199708

main90099-14090i199502-199708

main90099-14091i199211-199409

main90099-14127i199409-199508

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-63010×2i199211-199601

main19115-88280i199211-199502

19121COVER, DUST PROOF

main19121-11080i199211-199601

main19121-74010i199211-199601

19127PACKING, DUST PROOF

main19127-15120i199211-199708

main19127-74010i199211-199601

main19127-74040i199211-199601

main19127-74050i199211-199601

19133CONDENSER, DISTRIBUTOR

main19133-16240i199211-199601

19144LEAD, DISTRIBUTOR BREAKER

main19144-11350i199211-199708

main19144-74100i199211-199601

19235HOUSING, DISTRIBUTOR

main19235-11340i199211-199708

main19235-74160i199211-199601

main19235-74180i199211-199308

main19235-74210i199308-199601

main19235-88040i199502-199708

19242CLAMP, CORD

main19242-11190i199211-199708

main19242-11350i199211-199708

19500BCOIL ASSY, IGNITION

main90919-02163i199211-199601

main90919-02164i199211-199708

89620BIGNITER ASSY

main89620-12420i199211-199601

main89620-12440i199601-199701

main89620-16260i199701-199708

9009900245

main90099-00245

9009900957

main90099-00957

9009900966

main90099-00966

9009904977

main90099-04977

9009905179

main90099-05179

91621B0828

main91621-B0828

20 parts on this diagram · 4 diagrams in section
