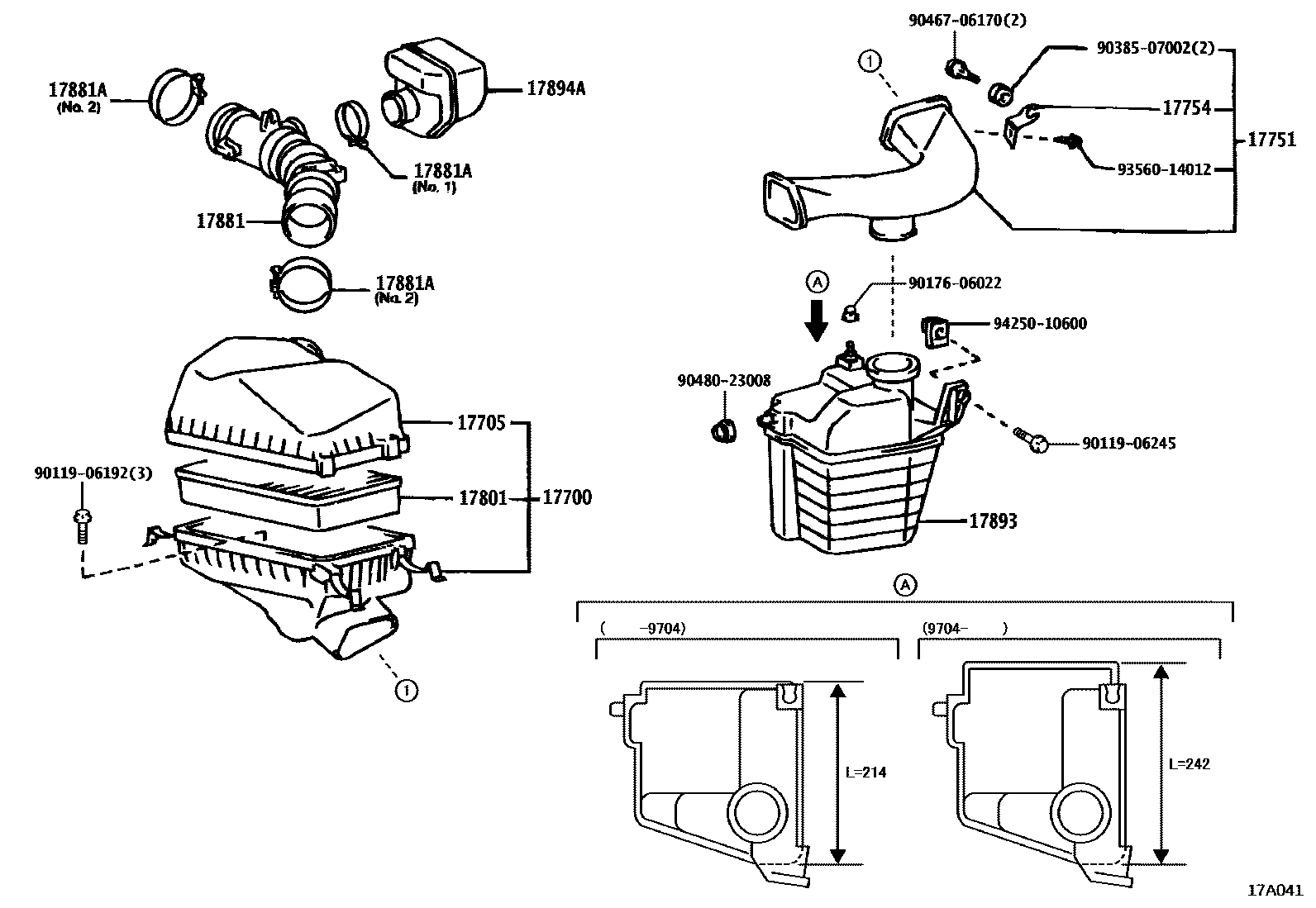

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

17700CLEANER ASSY, AIR

main17700-16770i5EFE..ET196199211-199601

main17700-1A010i7AFE..AT191199601-199708

main17700-1B030i5EFE..ET196199601

main17700-64300i2C..CT19#199211-199601

main17700-64350i2CT..CT190199601-199708

main17700-64360i2C..CT196,198199601-199805

main17700-64430i3CE..CT19#199805-200206

main17700-74410i3SFE,4SFE..ST19#199211-199601

main17700-74420i3SGE..ST195199502-199601

main17700-74560i3SGE..ST195199601-199708

17705CAP SUB-ASSY, AIR CLEANER

main17705-11590i5EFE..ET196199601

main17705-16440i5EFE..ET196199211-199601

main17705-16500i7AFE..AT191199601-199708

main17705-64190i2C..CT19#199211-199601

main17705-64230i2CT..CT190199601-199708

main17705-64240i2C..CT196,198199601-199805

main17705-64300i3CE..CT19#199805-200206

main17705-74290i3SFE,4SFE..ST19#199211-199601

main17705-74300i3SGE..ST195199502-199601

main17705-74400i3SGE..ST195199601-199708

17751INLET, AIR CLEANER, NO.1

main17751-16070i3SFE,4SFE..ST19#199211-199601

main17751-16110i5EFE..ET196199601-199909

sub17751-64070

main17751-64030i2CT..CT190199601-199708

sub17751-64031

main17751-64070i5EFE..ET196199909-200206

main17751-74010i3SGE..ST195199502-199601

sub17751-16070

17754STAY, AIR CLEANER INLET

main17754-16010i3S#..ST19#199601-199708

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-16020i5EFE..ET196199601

main17801-64060i2CT..CT190199601-199708

sub17801-64070

main17801-64070i2C,3CE..CT19#199211-200206

main17801-74020i5EFE..ET196199211-199708

17881HOSE, AIR CLEANER, NO.1

main17880-11200i5EFE..ET196199211-199402

sub17880-11201

main17880-11201i5EFE..ET196199402-199601

main17880-11320i5EFE..ET196199601-199708

main17880-11370i5EFE..ET196199708

main17881-16380i7AFE..AT191199601-199708

sub17881-16381

main17881-64260i2C..CT19#199211-199601

main17881-64290i2CT..CT190199601-199708

main17881-64310i2C..CT196,198199601-199805

main17881-64360i3CE..CT19#199805

main17881-74450i3SFE,4SFE..ST19#199211-199601

main17881-74460i3SFE..ST191199211-199402

main17881-74570i3SFE..ST191199402-199601

main17881-74580i3SGE..ST195199502-199601

main17881-74670i3SFE..ST19#199601

main17881-74680i3SGE..ST195199601-199708

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-65007i2C..CT19#199211-199601

RESONATOR SIDE

sub90460-65002

main90460-65007i2CT..CT190199601-199708

sub90460-65002

main96111-10430i3SFE..ST191199402-199601

main96111-10530i3SFE..ST19#199601

main96111-10530i7AFE..AT191199601-199708

main96111-10590i3SFE,4SFE..ST19#199211-199601

main96111-10630i2C..CT196,198199702-199805

main96111-10650i2C..CT19#199211-199601

AIR CLEANER SIDE

main96111-10650i3CE..CT19#199805

main96111-10710i5EFE..ET196199211

main96111-10710i7AFE..AT191199601-199708

main96111-10750i3SGE..ST195199502-199601

main96111-10800i3SGE..ST195199502-199601

main96111-10800i3SGE..ST195199601-199708

17893RESONATOR, INTAKE AIR

main17893-16100i3SFE,4SFE..ST19#199211-199601

main17893-16130i3SGE..ST195199601-199704

main17893-64020i2C..CT19#199211-199601

main17893-64020i3SGE..ST195199502-199601

main17893-74230i3SGE..ST195199502-199708

main17893-74240i3SFE,4SFE..ST19#199211-199601

main17893-74250i3SFE..ST191199211-199601

main17893-74430i3SFE..ST19#199704-200206

main17893-74430i7AFE..AT191199704-199708

17894ARESONATOR, INTAKE AIR, NO.2

main17894-16080i7AFE..AT191199601-199708

main17894-64020i2C..CT190,196199211-199601

main17894-64030i2C..CT198199211-199601

main17894-64050i2CT..CT190199601-199708

main17894-64060i2C..CT196,198199601-199805

main17894-64080i3CE..CT19#199805

main17894-74070i3SFE..ST19#199601

9011906192

main90119-06192

9011906245

main90119-06245

9017606022

main90176-06022

9038507002

main90385-07002

9046706170

main90467-06170

9048023008

main90480-23008

9356014012

main93560-14012

9425010600

main94250-10600

17 parts on this diagram · 11 diagrams in section
