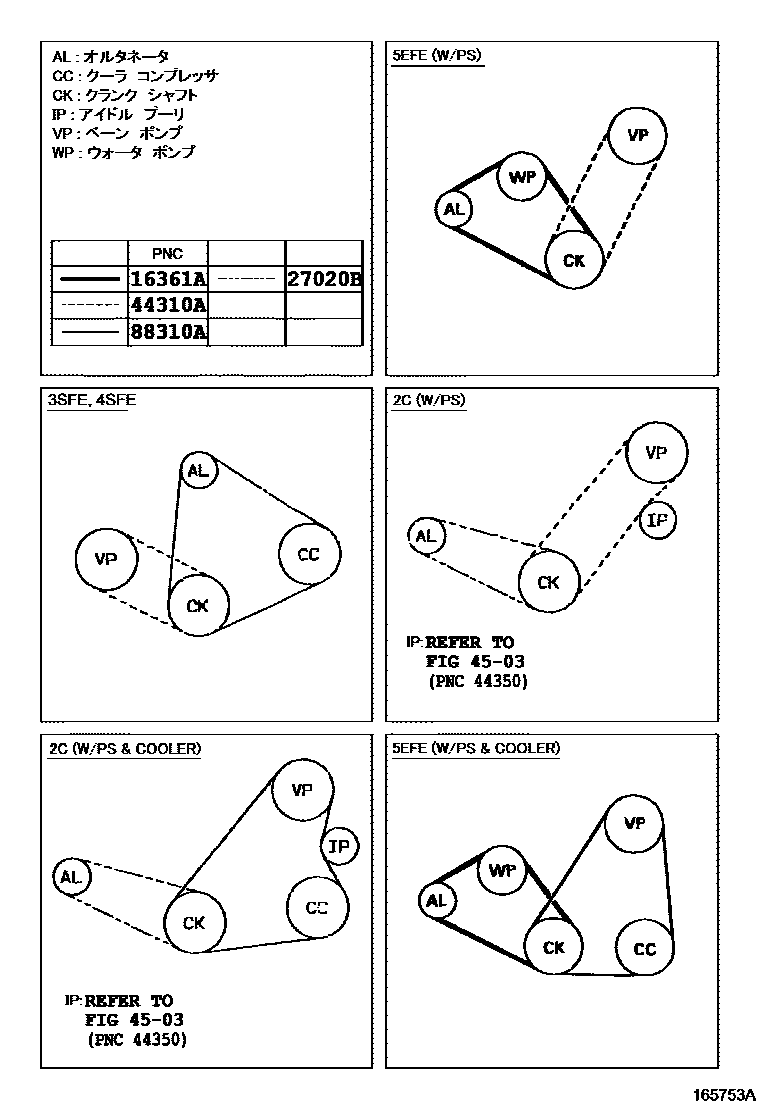

V-BELT

0001 1 0002 1 0003 1 0004 1

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-91055i7AFE..AT191199601-199708

main90916-02341i5EFE..ET196199211-199412

main99364-20820i5EFE..ET196199412-200105

main99364-30820i5EFE..ET196200105

27020BBELT, V(FOR ALTERNATOR)

main90916-02301i3CE..CT19#199805

main90916-02355i3SFE..ST198..U,UL199908

main90916-02372i2C#..CT19#199211-199805

44310ABELT, V(FOR VANE PUMP)

main90916-02256iCT196,198199211-199408

main99363-30760iST198199908

main99363-70760iST19#199211-199406

main99363-80630iAT191199601-199708

main99363-80760iST19#199406-199708

main99363-90760iST198199908

main99364-30930iET196..U,UL199801

main99364-80930iET196..U,UL199601-199801

main99365-81110iCT196,197,198,199..U,UL199601

4503POWER STEERING TUBE

→ Go to FIG 45-03

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02344iST19#..CZ,FZ,TZ199211-199601

main90916-02345iST19#..CZ,FZ,TZ199211-199601

main90916-02422iST195..TZG199601-199708

main90916-02423iAT191199601-199708

main90916-02424iAT191199601-199708

main90916-02425iET196..U,UL; ET196..UX199708-199805

main90916-02426iET196..UX199601-200206

main99364-21080iET196..U,UL; ET196..UX199211-199501

main99364-81080iET196..U,UL199511-199601

main99364-91080iET196..UX199211-199307

main99365-21100iST195..TZG199502-199601

main99365-21210iCT196..4FC;CT196..5F..UX;CT190,197,198,199199707-200206

main99365-81110iST198..UX199908-200206

main99365-91110iST198..U,UL199908-200206

main99365-91120iST195..TZG199601-199708

main99365-91210iCT190,196..CZ,FZ,UX199601-199707

5 parts on this diagram · 4 diagrams in section
