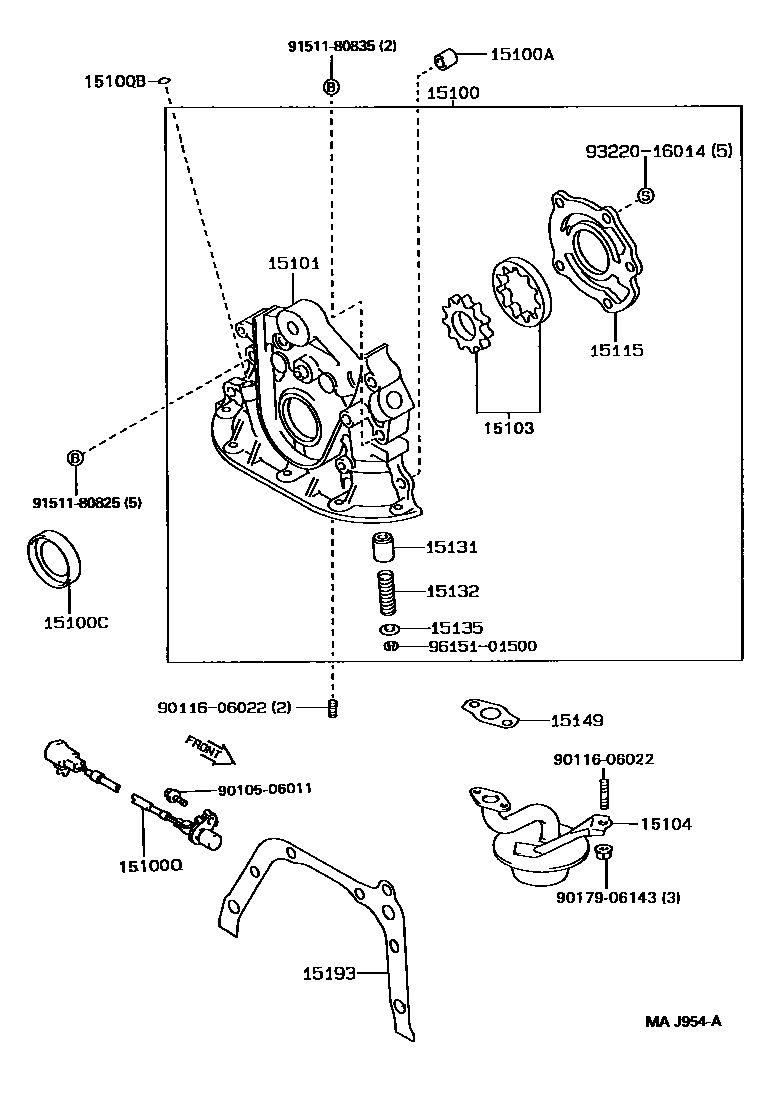

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

15100PUMP ASSY, OIL

main15100-11070i5EFE..ET196199211-199407

main15100-11071i5EFE..ET196199407-199708

main15100-11110i5EFE..ET196199708

main15100-16070i7AFE..AT191199601-199708

main15100-64040i2C#,3CE..CT19#199211-199812

main15100-64041i3CE..CT19#199812-199906

main15100-64042i3CE..CT19#199906

main15100-74010i3SFE,4SFE..ST19#199211-199508

main15100-74050i3SFE..ST19#199601

main15100-74060i3SFE,4SFE..ST19#199508-199601

main15100-88460i3SGE..ST195199502-199708

15100APIN, RING(FOR OIL PUMP SET)

main90253-09001×2i5EFE..ET196199211

main90253-11021×2i7AFE..AT191199601-199708

15100BRING, O(FOR OIL PUMP)

main15188-63010i3SFE,4SFE..ST19#199211-199304

main15188-74050i3SFE..ST19#199608

main15188-88382i3S#,4SFE..ST19#199304-199608

main90301-62006i5EFE..ET196199211

main96721-19010i7AFE..AT191199601-199708

15100CSEAL(FOR OIL PUMP)

main15165-70010i3SFE,4SFE..ST19#199211-199304

main15165-74020i3SFE,4SFE..ST19#199304

main15165-88382i3SGE..ST195199502-199708

main90029-21007i5EFE..ET196199211-199305

main90029-21020i5EFE..ET196199305

main90029-21022i2C..CT19#199211-199308

main90311-32018i7AFE..AT191199601-199702

main90311-32020i7AFE..AT191199702-199708

15100QSENSOR, CRANK POSITION

main90919-05011i7AFE..AT191199601-199708

15101BODY SUB-ASSY, OIL PUMP

main15011-16070i7AFE..AT191199601-199708

main15101-64030i2C..CT19#199211-199308

15103GEAR SET, OIL PUMP

main15103-15020i7AFE..AT191199601-199708

15104STRAINER SUB-ASSY, OIL

main15104-11140i5EFE..ET196199211-199501

main15104-11180i5EFE..ET196199708

main15104-11190i5EFE..ET196199501-199708

main15104-16060i7AFE..AT191199601-199708

main15104-64070i2C..CT19#199211-199601

main15104-64080i2C#,3CE..CT19#199601

main15104-74090i3SFE..ST19#199601

main15104-88380i3SFE,4SFE..ST19#199211-199601

main15104-88461i3SGE..ST195199502-199708

15115COVER, OIL PUMP

main15115-15020i7AFE..AT191199601-199708

15131VALVE, OIL PUMP RELIEF

main15131-24010i7AFE..AT191199601-199708

main15131-64020i2C#,3CE..CT19#199211-199812

main15131-64041i3CE..CT19#199812

15132SPRING, OIL PUMP RELIEF VALVE

main15132-17010i3CE..CT19#199812

main15132-40010i7AFE..AT191199601-199708

main15132-64012i2C#,3CE..CT19#199211-199812

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-15010i7AFE..AT191199601-199708

15149GASKET, OIL STRAINER FLANGE

main15149-16010i7AFE..AT191199601-199708

15193GASKET, OIL PUMP

main15193-64021i2C#..CT19#199211-199804

main15193-64022i2C,3CE..CT19#199804

main15197-16010i7AFE..AT191199601-199708

main15197-63021i3SFE,4SFE..ST19#199211-199309

main15197-74030i3SFE,4SFE..ST19#199309-199508

main15197-74040i3SFE,4SFE..ST19#199508

main15197-88460i3SGE..ST195199502-199708

9010506011

main90105-06011

9011606022

main90116-06022

9017906143

main90179-06143

9151180825

main91511-80825

9151180835

main91511-80835

9322016014

main93220-16014

9615101500

main96151-01500

21 parts on this diagram · 8 diagrams in section
