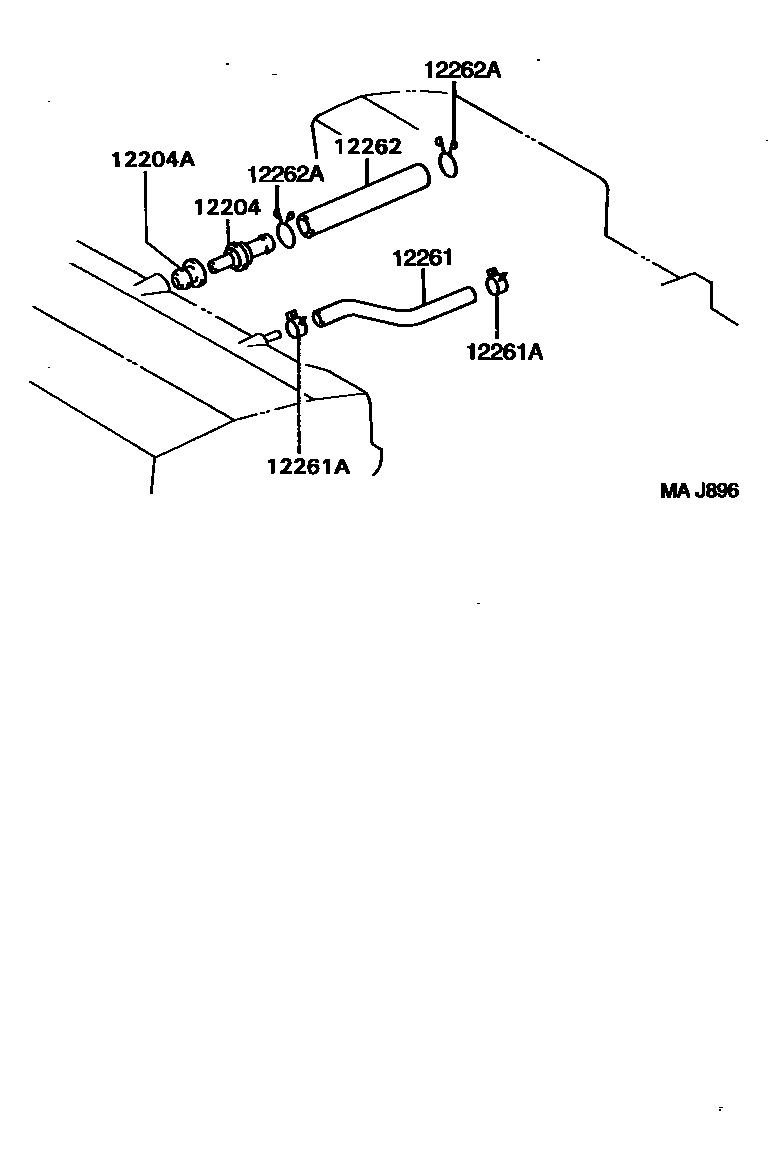

VENTILATION HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

12204VALVE SUB-ASSY, VENTILATION

main12204-10030i5EFE..ET196199211-199507

main12204-11040i5EFE..ET196199507

main12204-15050i7AFE..AT191199601-199708

main12204-74020i3SFE,4SFE..ST19#199211-199601

main12204-74030i3SFE..ST19#199601

main12204-88460i3SGE..ST195199502-199708

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18001i7AFE..AT191199211-199708

main90480-18006i5EFE..ET196199211

main90480-18008i3SGE..ST195199502-199708

12261HOSE, VENTILATION

main12261-11160i5EFE..ET196199211-199708

main12261-11180i5EFE..ET196199708

main12261-64110i2C..CT19#199211-199601

main12261-64130i2CT..CT190199601-199708

sub12261-64131

main12261-64200i2C..CT196,198199601-199805

sub12261-64210

main12261-64210i3CE..CT19#199805

main12261-74020i3SFE,4SFE..ST19#199211-199601

main12261-74090i3SFE..ST191199211-199601

main12261-74130i3SFE..ST19#199601

main12261-88460i3SGE..ST195199502-199608

sub12261-88461

main12261-88461i3SGE..ST195199608-199708

main90910-05222i7AFE..AT191199601-199708

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-10099i7AFE..AT191199601-199708

sub96132-51000

main90467-14037i3SGE..ST195199502-199708

main90467-14043i3SFE..ST19#199604

main90467-15016i3SFE,4SFE..ST19#199211-199511

sub96135-51400

main90467-15022i3SFE,4SFE..ST19#199511-199604

main90467-18003i2C#,3CE..CT19#199211

12262HOSE, VENTILATION, NO.2

main12262-11050i5EFE..ET196199211

main12262-74050i3SFE,4SFE..ST19#199211-199601

main12262-74100i3SFE..ST19#199601

main12262-88460i3SGE..ST195199502-199708

main90445-15067i7AFE..AT191199601-199708

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-13103i3SFE,4SFE..ST19#199211-199601

SURGE TANK SIDE

main90467-14001i5EFE..ET196199505

main90467-14017i7AFE..AT191199601-199708

main90467-14043i3SFE..ST19#199211-199505

main90467-15016i3SFE,4SFE..ST19#199211-199511

VALVE SIDE

sub96135-51400

main90467-15022i3SFE,4SFE..ST19#199511-199601

VALVE SIDE

6 parts on this diagram · 6 diagrams in section
