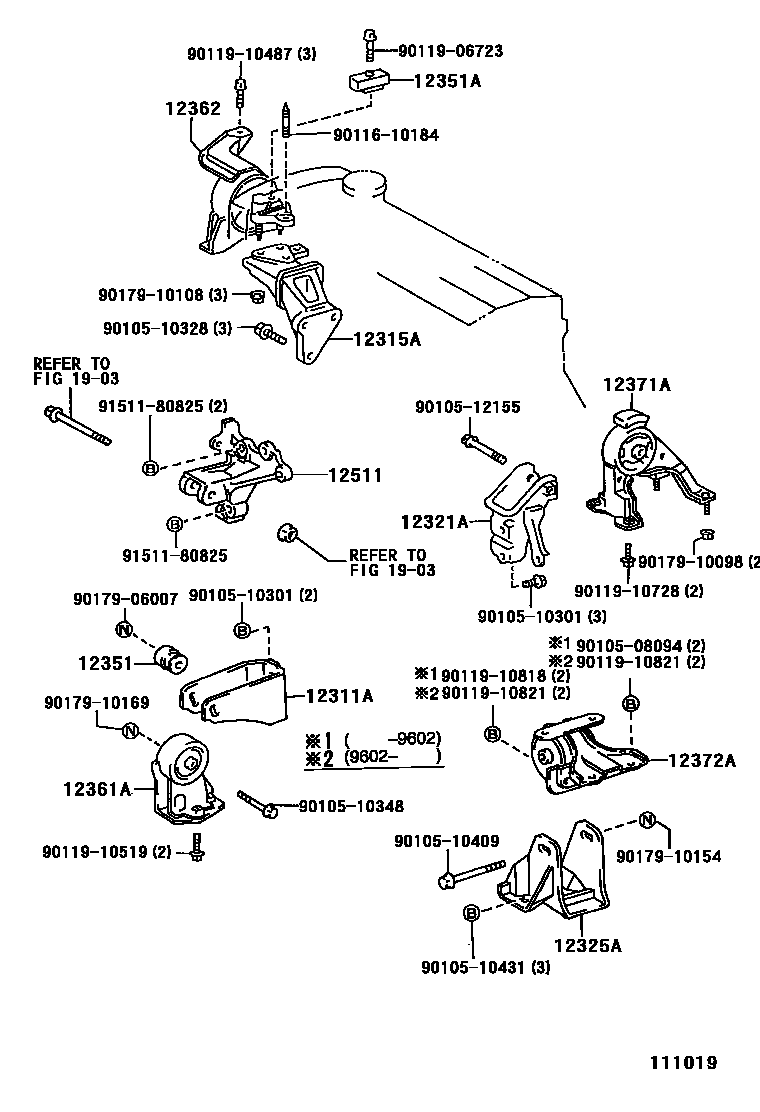

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-11100i5EFE..ET196199211-199601

main12311-11120i5EFE..ET196199601

main12311-16170i7AFE..AT191199601-199708

main12311-64150i2C..CT190,196199211-199601

main12311-64180i2C..CT198199211-199601

main12311-64200i2C#,3CE..CT190,196,197199601

main12311-64210i2C,3CE..CT198,199199601

main12311-74120i3SFE,4SFE..ST190,191199211-199601

main12311-74140i3S#..ST195199211-199601

main12311-74170i3SFE..ST191199601-199708

main12311-74200i3S#..ST195,198199601

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-11050i5EFE..ET196199211-199702

main12315-11051i5EFE..ET196199702

main12315-16061i7AFE..AT191199601-199708

main12315-64080i2C..CT190,196199211-199601

main12315-64090i2C..CT198199211-199804

main12315-64110i2C#..CT190,196199601-199803

main12315-64140i2C,3CE..CT198,199199804-200004

main12315-64141i3CE..CT199200004

main12315-64150i2C,3CE..CT196,197199803

main12315-74101i3SFE,4SFE..ST19#199211-199402

main12315-74120i3SFE,4SFE..ST19#199402-199601

main12315-74130i3SGE..ST195199502-199708

main12315-74140i3SFE..ST19#199601

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-11180i5EFE..ET196..5F199211

main12321-11250i5EFE..ET196..3FC199211

main12321-16260i7AFE..AT191..5F199601-199708

main12321-16270i7AFE..AT191..4FC199601-199708

main12321-64230i2C..CT190,196..5F199211-199601

main12321-64240i2C..CT190,196..4FC199211-199601

main12321-64250i2C..CT198199211-199601

main12321-64270i2C#,3CE..CT190,196,197..5F199601

main12321-64280i2C#,3CE..CT190,196,197..4FC199601

main12321-64290i2C,3CE..CT198,199199601

main12321-74260i4SFE..ST190..5F199211-199601

main12321-74270i3SFE,4SFE..ST190,191..4FC199211-199708

main12321-74280i3S#..ST195..5F199211-199708

main12321-74290i3S#..ST195..4FC199211-199601

main12321-74400i3S#..ST195,198..4FC199601

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-11130i5EFE..ET196..3FC199211-199601

main12325-11140i5EFE..ET196..5F199601

main12325-11150i5EFE..ET196..3FC199601-199706

main12325-11151i5EFE..ET196..3FC199706

main12325-16120i5EFE..ET196..5F199211-199601

main12325-16200i7AFE..AT191..5F199601-199708

main12325-16210i7AFE..AT191..4FC199601-199708

main12325-64060i2C..CT190,196..5F199211-199601

main12325-64070i2C..CT190,196..4FC199211-199601

main12325-64080i2C..CT198199211-199601

main12325-64100i2C#,3CE..CT190,196,197..5F199601

main12325-64110i2C#,3CE..CT190,196,197..4FC199601

main12325-64120i2C,3CE..CT198,199199601

main12325-74180i4SFE..ST190..5F199211-199601

main12325-74190i3SFE,4SFE..ST190,191..4FC199211-199601

main12325-74200i3S#..ST195..5F199211-199601

main12325-74210i3S#..ST195..4FC199211-199601

main12325-74310i3SFE..ST191199601-199708

main12325-74320i3S#..ST195..5F199601-199708

main12325-74330i3S#..ST195,198..4FC199601

12351DAMPER, ENGINE MOUNTING

main12351-16070i2C#,3CE..CT190,196,197..5F199601

main12351-64020i7AFE..AT191199601-199708

main12351-64060i2C#,3CE..CT190,196,197199601

main12351-74010i2C#,3CE..CT190,196,197..4FC; 2C,3CE..CT198,199199601

12351ADAMPER, ENGINE MOUNTING(FOR INSULATOR)

main12351-16040i7AFE..AT191199601-199612

main12351-16050i7AFE..AT191199612-199708

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-16210i5EFE..ET196..5F199211-199601

main12361-16220i5EFE..ET196..3FC199211-199306

main12361-16221i5EFE..ET196..3FC199306-199601

main12361-16280i5EFE..ET196..5F199601

main12361-16290i3SFE..ST191,198; 5EFE..ET196..3FC199601

main12361-16310i7AFE..AT191..5F199601-199708

main12361-64250i2C..CT190,196199211-199601

main12361-64270i2C..CT198199211-199601

main12361-64350i3CE..CT19#199805

main12361-74260i4SFE..ST190..5F199211-199601

main12361-74280i3S#..ST195..4FC199211-199601

main12361-74290i3S#..ST195..5F199211-199601

main12361-74300i3SFE,4SFE..ST190,191..4FC199211-199601

main12361-74420i3S#..ST195..4FC199601-199708

main12361-74430i2C..CT198199601-199805

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12305-16120i7AFE..AT191199601-199708

main12305-64140i2C#..CT190,196199601-199607

main12305-64141i2C#..CT190,196199607-199712

main12305-64142i2C,3CE..CT196,197199712

main12305-64150i2C..CT198199601-199607

main12305-64151i2C..CT198199607-199712

main12305-64152i2C,3CE..CT198,199199712

main12305-74190i3SFE..ST191199601-199612

main12305-74191i3SFE..ST191199612-199708

main12305-74250i3S#..ST195199601-199612

main12305-74251i3S#..ST195,198199612

main12362-11210i5EFE..ET196199211

main12362-64190i2C..CT190,196199211-199601

main12362-64200i2C..CT198199211-199601

main12362-74280i3SFE,4SFE..ST190,191199211-199402

main12362-74290i3SFE..ST195199211-199402

main12362-74370i3S#..ST195199402-199601

main12362-74380i3SFE,4SFE..ST190,191199402-199601

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-11590i5EFE..ET196199601

main12371-16270i5EFE..ET196..5F199211-199601

main12371-16290i5EFE..ET196..3FC199211-199601

main12371-16350i7AFE..AT191199601-199708

main12371-64240i2C..CT190,196199211-199601

main12371-64270i2C#..CT190,196199601-199805

main12371-64320i3CE..CT197199805

main12371-74320i4SFE..ST190..5F199211-199601

main12371-74330i3SFE,4SFE..ST190,191..4FC199211-199601

main12371-74340i3S#..ST195..5F199211-199505

main12371-74341i3S#..ST195..5F199505-199708

main12371-74350i2C..CT198; 3S#..ST195..4FC199211-199505

main12371-74351i2C,3CE..CT198,199; 3S#..ST195,198..4FC199505

main12371-74500i3SFE..ST191199601-199708

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-11270i5EFE..ET196..5F199211-199601

main12372-11280i5EFE..ET196..3FC199211-199601

main12372-11320i5EFE..ET196..3FC199601-199602

main12372-11321i5EFE..ET196..3FC199602

main12372-16350i3SFE..ST191; 7AFE..AT191..4FC199601-199602

main12372-16351i3SFE..ST191; 7AFE..AT191..4FC199602-199708

main12372-16360i5EFE..ET196..5F; 7AFE..AT191..5F199601-199602

main12372-16361i7AFE..AT191..5F199602-199708

main12372-64180i2C..CT190,196..4FC199211-199601

main12372-64190i2C..CT198199211-199601

main12372-64210i2C#..CT19#..5F199601-199602

main12372-64220i2C#..CT190,196..4FC199601-199602

main12372-64221i2C#..CT190,196..4FC199602-199805

main12372-64260i2C#..CT19#..5F199602-199805

main12372-64290i3CE..CT19#..5F199805

main12372-64300i3CE..CT197..4FC199805

main12372-74350i2C..CT190,196..5F; 4SFE..ST190..5F199211-199507

main12372-74351i2C..CT190,196..5F; 4SFE..ST190..5F199507-199601

main12372-74390i3SFE,4SFE..ST190,191..4FC199211-199507

main12372-74391i3SFE,4SFE..ST190,191..4FC199507-199601

main12372-74400i3S#..ST195..5F199211-199601

main12372-74410i3S#..ST195..4FC199211-199601

main12372-74560i3S#..ST195199601-199602

main12372-74590i3S#..ST195,198199602

12511BRACKET, ALTERNATOR, NO.1

main12511-11020i5EFE..ET196199211

main12511-16110i7AFE..AT191199601-199708

main12511-64060i2C#..CT19#199211-199805

main12511-64100i3CE..CT19#199805

main12511-74051i3SFE,4SFE..ST19#199211

main12511-88480i3SGE..ST195199502-199606

main12511-88481i3SGE..ST195199606-199708

1903ALTERNATOR

→ Go to FIG 19-03

9010508094

main90105-08094

9010510301

main90105-10301

9010510328

main90105-10328

9010510348

main90105-10348

9010510409

main90105-10409

9010510431

main90105-10431

9010512155

main90105-12155

9011610184

main90116-10184

9011906723

main90119-06723

9011910487

main90119-10487

9011910519

main90119-10519

9011910728

main90119-10728

9011910818

main90119-10818

9011910821

main90119-10821

9017906007

main90179-06007

9017910098

main90179-10098

9017910108

main90179-10108

9017910154

main90179-10154

9017910169

main90179-10169

9151180825

main91511-80825

32 parts on this diagram · 12 diagrams in section
