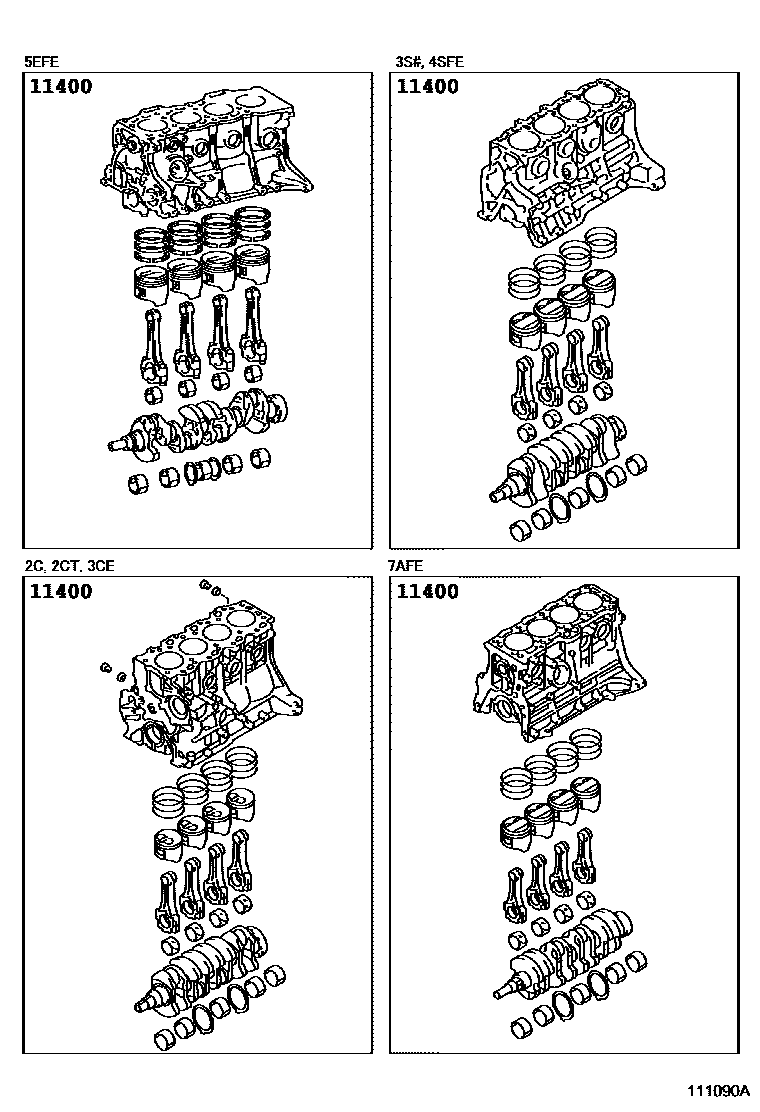

SHORT BLOCK ASSEMBLY

Parts diagram

11400BLOCK ASSY, SHORT

main11400-11120i199211-199307

main11400-11121i199307-199407

main11400-11122i199407-199708

main11400-11150i199708-200206

main11400-16390i199601-199708

main11400-64370i199211-199504

main11400-64380i199211-199504

main11400-64470i199601-199708

main11400-64480i199504-199705

main11400-64481i199705-199805

main11400-64490i199504-199805

main11400-64590i199805-199808

main11400-64591i199808-199901

main11400-64592i199901-200206

main11400-64600i199805-199808

main11400-64601i199808-199901

main11400-64602i199901-200206

main11400-74150i199211-199508

main11400-74151i199508-199601

main11400-74160i199211-199508

main11400-74161i199508-199511

main11400-74162i199511-199601

main11400-74210i199211-199601

main11400-74360i199601-200206

main11400-74370i199601-199708

main11400-88394i199502-199708

1 parts on this diagram · 1 diagram in section
