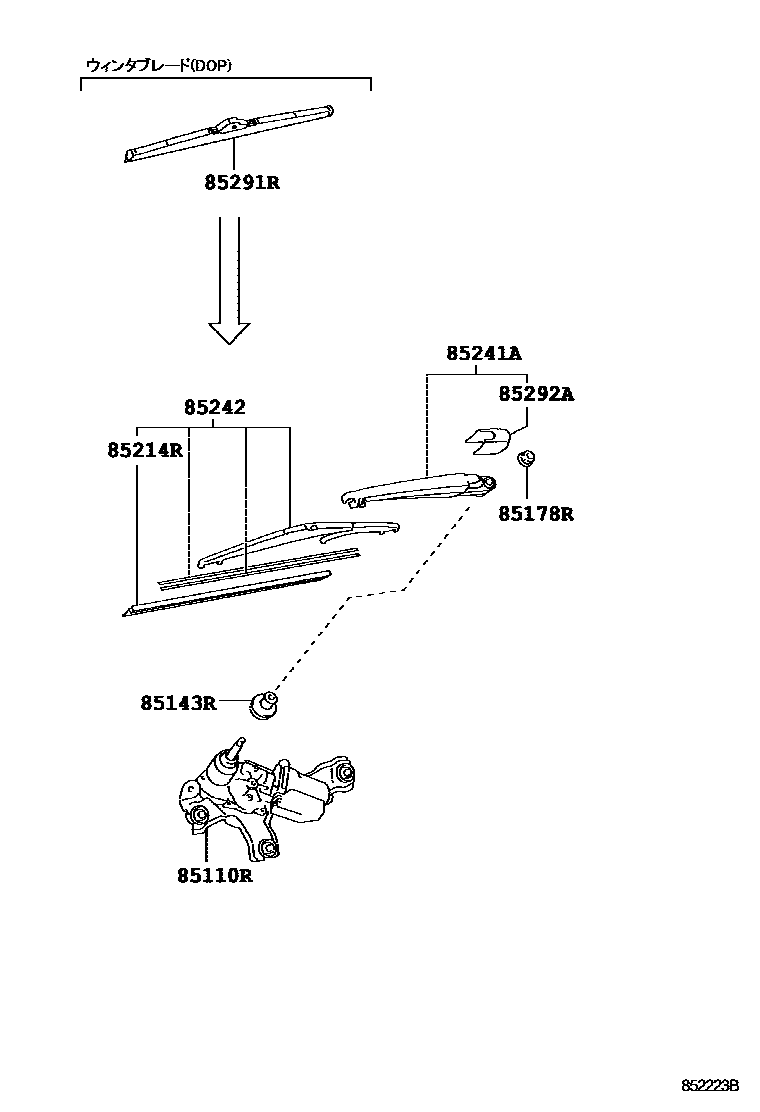

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-05060iZRT272201107-201505

85143RGROMMET, REAR WIPER MOTOR

main85143-05070iZRT272201107-201505

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iZRT272201107-201505

85214RRUBBER, REAR WIPER

main85214-05160iZRT272201107-201505

85241AARM, REAR WIPER

main85241-05100iZRT272201107-201505

85242BLADE, RR WIPER

main85242-05120iZRT272201107-201505

85291RBLADE,REAR WIPER, WINTER

85292ACAP, REAR WIPER ARM HEAD

main85292-02030iZRT272201107-201505

8 parts on this diagram · 1 diagram in section
